Essentials of Air Floatation Vibration Isolation Platform Technology: From Structural Innovation to Stable Support for Precise Scenarios

Air Floatation Vibration Isolation Platform: the "shock absorption expert" for precision scenes

The Air Floatation Vibration Isolation Platform reduces the vibration frequency of the equipment to an extremely low level through air springs and special damping structures, providing a "zero interference" operating environment for high-precision instruments such as microscopes and laser interferometers. Its core advantage lies in isolating ground vibrations through air flotation technology, ensuring that experimental data is not affected by environmental interference.

Design of pendulum type Air Floatation Vibration Isolation Platform: the ultimate application of the single pendulum principle

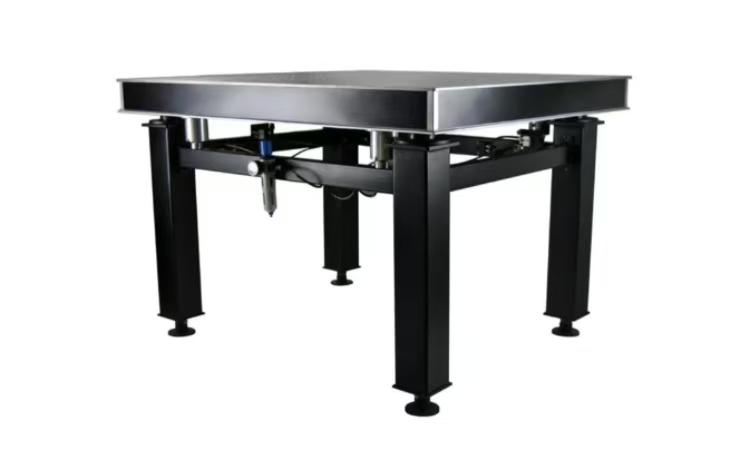

Taking the LeadTop air floating pendulum rod type vibration isolation optical platform ZDT-B series as an example, it adopts an air spring+pendulum rod structure, and uses the principle of a single pendulum to compress the horizontal natural frequency to 1.0-1.5Hz and the vertical direction to 1.0-2.0Hz.

This design enables the vibration isolation efficiency in the 5-10Hz frequency band to exceed 86%, and with the ± 10mm pneumatic leveling function, it can quickly adapt to the height requirements of different experimental platforms. LeadTop's silent air compressor (<50dB) and matte tabletop design further enhance the user experience.

Ultra thin airbag type Air Floatation Vibration Isolation Platform: a precise breakthrough in damping technology

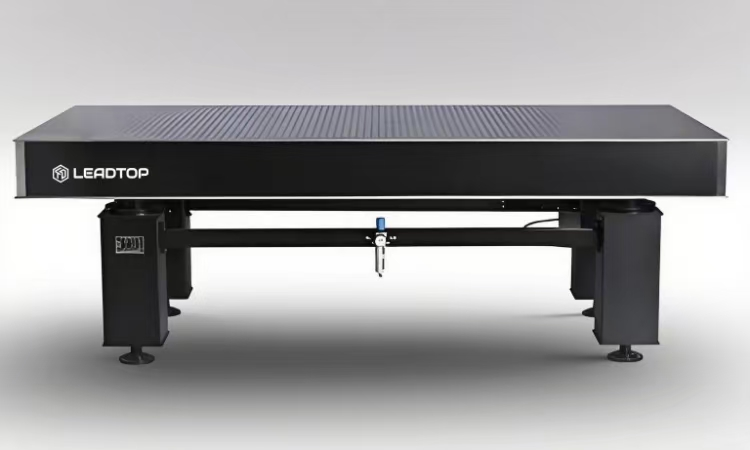

The LeadTop air floating isolation optical platform ZDT-P series achieves balanced vertical/horizontal natural frequencies of 1.0-2.0Hz through ultra-thin composite airbags and multi small hole quasi laminar damping technology. Its isolation efficiency of 78-95% (5-10Hz) can meet the strict requirements of laser interference, precision detection and other scenarios. The flatness of the tabletop of 0.05-0.1mm/㎡ and the silent compressor make it an ideal choice for laboratory upgrades.

Summary: Future prospects of air flotation vibration isolation platform

From the pendulum type Air Floatation Vibration Isolation Platform to the ultra-thin airbag type Air Floatation Vibration Isolation Platform, the Air Floatation Vibration Isolation Platform is continuously breaking through the stability limit of precision scenes through structural innovation and damping optimization.

The technological iteration of brands such as LeadTop not only promotes the improvement of optical platform performance, but also provides critical infrastructure for fields such as semiconductor manufacturing and quantum research.
