Damping Plates in Optical Experiments: Indispensable Foundation Guarantee

Optical experiments are an important component of precision science. From laser interferometry to microscopy imaging, from optical path adjustment to optical component calibration, various optical experiments have nearly stringent requirements for working platform stability. Vibration interference is one of the most common sources of error in optical experiments. Even slight tabletop vibration can cause optical path deviation, blurred interference fringes, or measurement data drift, directly affecting the reliability and repeatability of experimental results. As the core foundation component of optical platforms, the damping plate bears the dual functions of vibration isolation and tabletop support, with its performance directly determining the precision ceiling of optical experiments. This article provides in-depth analysis of damping plate application advantages in optical experiments and compares the suitability of different technical solutions.

Core Performance Requirements for Damping Plates in Optical Experiments

Optical experiments have multi-dimensional performance requirements for damping plates. First is vibration isolation performance: damping plates need to isolate the impact of ground vibrations on optical components. The MOT-F series honeycomb core damping plate adopts broadband damping structure with honeycomb core design, effectively suppressing surface resonance and providing stable vibration isolation. Second is tabletop flatness: optical component installation precision directly depends on tabletop flatness. Both MOT-F series and MOT-K series damping plates achieve high-precision flatness of 0.05-0.1mm/m². Third is surface quality: excessive surface roughness affects optical path cleanliness. MOT-F series roughness is below 2µm/m² while MOT-K series is ≤1.6μm, both meeting precision optical experiment requirements. Fourth is material corrosion resistance: long-term use in laboratory environments requires rust-resistant and easy-to-clean tabletops. MOT-F series uses 430 stainless steel panel while MOT-K series offers 1Cr13 or 304 stainless steel options.

Unique Advantages of Honeycomb Core Damping Plates in Optical Experiments

The MOT-F series honeycomb core damping plate demonstrates multiple significant advantages in optical experiments through its unique design philosophy. The lightweight and high-rigidity characteristics of the honeycomb core structure enable the tabletop to significantly reduce overall weight while ensuring excellent anti-vibration performance, facilitating flexible layout and adjustment within laboratory space. The trapezoidal thin steel plates precisely bonded to form the honeycomb core create numerous micro-cavities that effectively absorb and scatter vibration energy. Combined with the broadband damping structure, this achieves wide-band vibration suppression. The fully sealed hole structure eliminates welding residual stress, ensuring the tabletop maintains its high-precision flatness of 0.05-0.1mm/m² throughout long-term use without deformation. The 430 stainless steel panel is rust-resistant and easy to clean, remaining pristine even after extended use in laboratory environments. These advantages make the MOT-F series honeycomb core damping plate a popular damping plate solution in optical experiments.

Customization Value of Special Hole Damping Plates in Precision Inspection

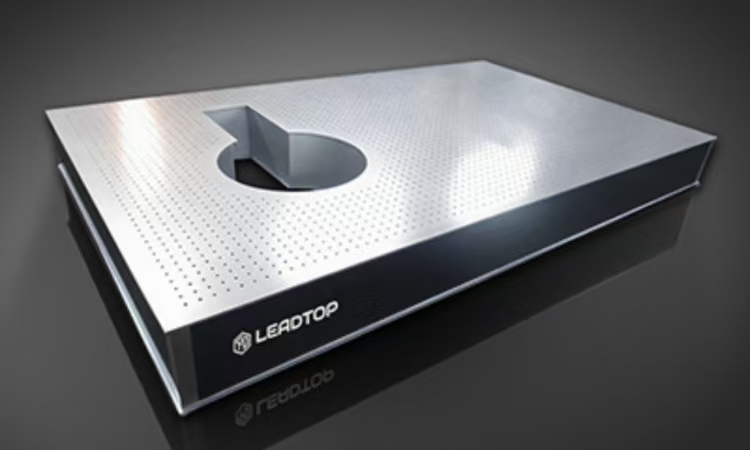

The MOT-K series special hole damping plate demonstrates unique customization value in precision inspection scenarios requiring complex accessory layouts. The mesh welding structure combined with built-in damping materials provides extremely high mechanical strength while suppressing resonance, with medium carbon steel reinforcement plates ensuring stability under heavy loads. Panel materials are available in 1Cr13 or 304 stainless steel with flexible thickness adjustment from 6-20mm. Various threaded holes can be processed according to specific application requirements to meet mounting needs of various accessories in optical experiments such as in-situ detection devices, fiber coupling systems, and micro-nano manipulation arms. The isolation cup adopts stretch aluminum stamping forming for comprehensive protection against dust, water, and noise, maintaining stable performance during long-term use. The high customization flexibility of the MOT-K series makes it an ideal choice for optical experiments and precision inspection scenarios with special accessory installation requirements.

Damping Plate Application Scenario Analysis and Comprehensive Recommendations

Synthesizing the above analysis, damping plate recommendations for different application scenarios can be summarized as follows: For standard optical experiments, laser interferometry, optical path adjustment, and other general scenarios, the MOT-F series honeycomb core damping plate is an ideal choice with its comprehensive advantages of lightweight, high rigidity, and rust-resistant easy cleaning. Its honeycomb core structure effectively suppresses resonance, broadband damping design covers wide-band vibrations, and fully sealed hole process ensures long-term stability. For precision inspection scenarios requiring complex accessory installation and special hole customization, the MOT-K series special hole damping plate, with its highly customized hole processing capabilities and excellent mechanical strength, can meet installation requirements of various complex experimental setups. As a professional supplier of vibration isolation optical platforms and accessory products, LeadTop is committed to providing high-performance, high-quality damping plate products and solutions for optical experiments and precision inspection fields.
