In precision manufacturing and scientific research, the quality of vibration isolator installation directly impacts equipment operational stability. As a global leader in micro-vibration control, LeadTop provides comprehensive solutions for industries including optics, semiconductors, and aerospace—from laboratories to industrial sites—through its active/passive vibration isolation platforms and customized isolators.

Pre-Installation Preparation: Precise Positioning and Tool Calibration

Prior to installation, select the appropriate isolator type based on equipment specifications. Use a laser level to calibrate the base surface flatness, ensuring deviations remain within ±0.1mm/m. For spring isolators, mark installation positions per design drawings and employ 2-ton chain hoists for lifting to prevent hard landing risks associated with direct crane operation.

Core Installation Steps: 3D Positioning and Dynamic Leveling

Taking the installation of spring isolators on a steam turbine base as an example, the process must be completed in layers: First, place textile pads and leveling galvanized steel plates to ensure full contact surface adhesion. Next, wrap the isolators with 0.04mm thick plastic film to prevent concrete debris intrusion. Finally, achieve three-dimensional leveling via micro-adjustment bolts, with vertical deviation ≤0.05°.

Special Scenario Handling for Isolator Installation: Pipeline System and Non-Standard Structure Adaptation

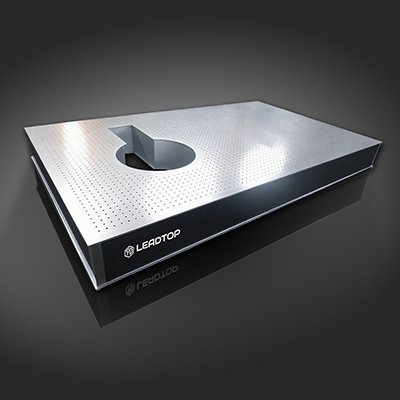

HVAC equipment installation requires simultaneous vibration control for piping systems. Flexible connectors replace rigid joints, with materials meeting anti-aging and corrosion-resistant standards. For non-standard vibration control platforms, such as LeadTop's MOT-K series special-hole platform plates, customized mounting brackets ensure precise alignment between hole positions and equipment interfaces.

From foundation leveling to dynamic adaptation, isolator installation is a critical step in precision engineering. LeadTop delivers customized solutions through nanoscale vibration suppression technology and full-scenario adaptability. Its ISO9001-certified products, paired with 24-hour rapid response service, ensure precision manufacturing consistently operates on a stable baseline.
