The Logical Starting Point for Selection Criteria for Spring Isolators: Analysis of Vibration Sources and Equipment Sensitivity

The core objective of spring isolators is to isolate vibrations at specific frequencies. Selection requires a dual-pronged approach considering both vibration source characteristics and equipment sensitivity. For instance, if the vibration source is low-frequency (<10Hz) heavy machinery, select models with lower natural frequencies (e.g., <3Hz) to avoid resonance. If equipment is sensitive to high-frequency noise, prioritize isolators with strong damping capabilities above 50Hz.

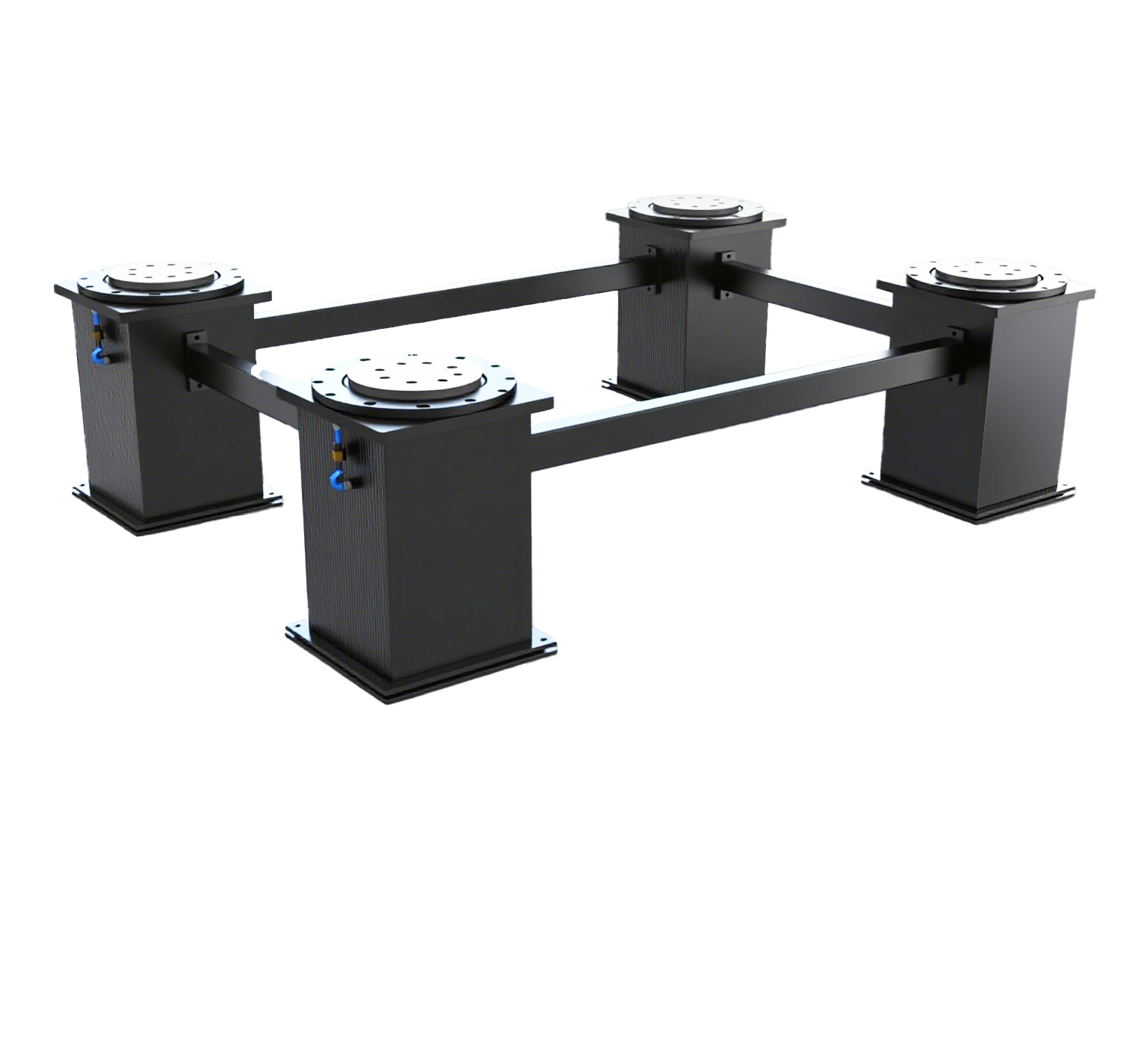

LeadTop's ZDT-B Series pendulum air-bearing isolators optimize horizontal natural frequencies to 1.0-1.5Hz and vertical frequencies to 1.0-2.0Hz through a single-pendulum structure. This effectively isolates low-frequency vibrations while achieving 88-94% horizontal isolation efficiency at 5Hz, providing dual protection for high-precision equipment. It serves as the benchmark reference for low-frequency isolation scenarios during selection.

Performance Parameter Breakdown for Selection Criteria for Spring Isolators: The Triangular Relationship Between Natural Frequency, Damping Ratio, and Load Capacity

Selection requires balancing three core parameters:

1. Natural Frequency: Determines the lower limit of isolation; the theoretical value should be lower than 1/√2 times the equipment's operating frequency.
2. Damping Ratio: Affects resonance peak suppression.
3. Load Capacity: Must cover the total equipment mass with a 20% safety margin.

LeadTop's modular damper design enables users to adjust damping coefficients based on operating conditions. For instance, enhanced damping in high-impact vibration scenarios shortens recovery time, achieving dynamic parameter adaptation.

Scenario-Based Selection of Spring Isolators: Differentiated Strategies for Laboratories and Industrial Settings

Laboratory Scenario: Requires low noise (<50dB), automatic leveling, and easy mobility. Standard air-float isolators (ZDT-P series) paired with silent pneumatic systems and casters produce noise as low as 42dB, ideal for applications like microscopes requiring quiet operation.

Industrial Scenarios: Emphasis on high load capacity and impact resistance. High-damping air-float isolators (ZDT-Z series) support vertical loads up to 500kg, utilizing high-strength composite airbags to withstand transient impact loads.

Selecting spring isolators involves dynamically matching technical parameters with application requirements. LeadTop provides end-to-end support—from parameter calculation to on-site deployment—leveraging its strengths in low-frequency isolation efficiency, adjustable damping, and comprehensive application coverage. Proper selection reduces equipment failure rates by over 30% and significantly enhances system stability.
