1. Superconducting magnet electric three-dimensional mobile platform
1.1. The panel is made entirely of magnet-free hard aluminum alloy. The panel dimensions are tentatively set at 1100mm×1100mm× 65mm (length×width×height) (adjusted appropriately considering tank size and installation). The panel has mounting holes for a fixed hanger system; The internal space between lead screws should be greater than 900mm;
1.2 . The overall dimensions of the platform are tentatively set as: 1500mm×1500mm×500mm (length×width×height);
1.3 . Platform lifting stroke 300mm, X and Y axis movement travel 200mm;
1.4. Platform 3D adjustment accuracy: ≤0.05mm, lifting resolution 0.005mm, translation resolution 0.00125mm;
1.5 . The 3D platform adopts worm gear drive and precision ball screw (tentatively titanium steel TC4) transmission mechanism, guide rail adopts precision linear slider rails, having features of high accuracy, long service life, and heavy load;
1.6 . High control accuracy, highlighting the advantages of its control system functions during docking experiments;
1.7. The transmission mechanism, drive mechanism, and height adjustment bearing are all magnetic components, non-replaceable, and are standard parts;
1.8 . The platform as a whole adopts automotive painting; except for some parts, the entire structure is black;
1.9. Platform load is less than: 650kg;
1.10. The platform is fixed to the base plate, requiring embedding of anchor bolts or adding expansion bolts to improve the stability of the lifting platform.
1.11. Installation of control cabinet, electric control system, and software control system;
1.12. Added manual adjustment mechanism for Z-axis lifting;
1.13. The lifting frame adds rails to facilitate the installation of the fuel tank and magnets.
2. Beam and waveguide POT optical platform
2.1. The panel is made entirely of stainless steel plate (1Cr13). Panel dimensions: 4000mm×2000mm× 250mm (length×width×height). The panel is equipped with standard metric M6 threaded holes arranged in a uniformly distributed array of 50mm×50mm, with a distance of 50mm×50mm from the edges.
2.2. Overall platform dimensions: 4000mm×2000mm×450mm (length×width×height)
2.3. The platform surface is treated with matte Meddy texture;
2.4. Manual leveling of the platform
2.5. Tabletop surface flatness: 0.05~0.10mm/m²
2.6 Tabletop surface roughness: <0.8μm
2.7 Supports use POT type isolators, mainly using shear-type rubber isolation support technology, with a support height of 200mm and the height is adjustable
2.8. The platform support section is fully automotive-painted, with the platform surface in natural color, black side wall packaging, and the base plate being treated for rust prevention
2.9 The platform bears less than 2000kg, with supports connected by linkages to ensure system strength
3. Electric lifting platform for the transmission link
3.1. The panel is made entirely of stainless steel plate (1Cr13). Panel dimensions: 1600mm×1000mm× 150mm (length×width×height). The panel is equipped with standard metric M6 threaded holes of 25mm ×25mm in a uniformly distributed array, 50mm ×50mm from the edge.
3.2 Overall platform dimensions: 1600mm×1000mm×900mm (length×width×height);
3.3 Platform lifting stroke: 400mm;
3.4 Manual leveling of the platform;
3.5 Tabletop surface flatness: 0.05mm/m²;
3.6. Table surface roughness: <0.8μm;<
3.7. Platform surface treated with matte micro-texture treatment;
3.8. Platform lifting adjustment accuracy ≤0.5mm;
3.9. Lifting uses worm gear transmission mechanism;
3.10.High control accuracy;
3.11.The platform as a whole adopts automotive painting; except for some parts, the entire structure is black;
3.12 The platform bears less than 500kg, with supports connected by linkages to ensure system strength;
3.13. The platform must be fixed on the rack platform to improve the stability of the lifting platform.
3.14. Install control cabinets, electric and manual control systems.
4. Water-loaded electric lifting platform
4.1. The panel is made entirely of stainless steel plate (1Cr13). Panel dimensions: 1200mm×1200mm× 150mm (length × width × height). The panel is equipped with standard metric M6 threaded holes of 25mm ×25mm in a uniformly distributed array, with a 50mm ×50mm spacing from the edge.
4.2. Overall platform dimensions: 1200mm×1200mm×800mm (length×width×height);
4.3 Platform lifting stroke 300mm;
4.4 Manual leveling of the platform;
4.5 Tabletop surface flatness: 0.05mm/m²;
4.6. Table surface roughness: <0.8μm
4.7. Platform surface treated with matte medium texture;
4.8. Platform lifting adjustment accuracy≤0.5mm;
4.9. Lifting uses worm gear and worm gear transmission mechanism;
4.10. High control accuracy;
4.11. The platform as a whole adopts automotive painting; except for some parts, the entire structure is black;
4.12. The platform bears less than 500kg, and the supports are connected by connecting rods to ensure the strength of the system;
4.13. The platform is fixed to the rack and needs to be fixed on the rack platform to improve the stability of the lifting platform;
4.14. Equipped with control boxes and electric manual control systems.

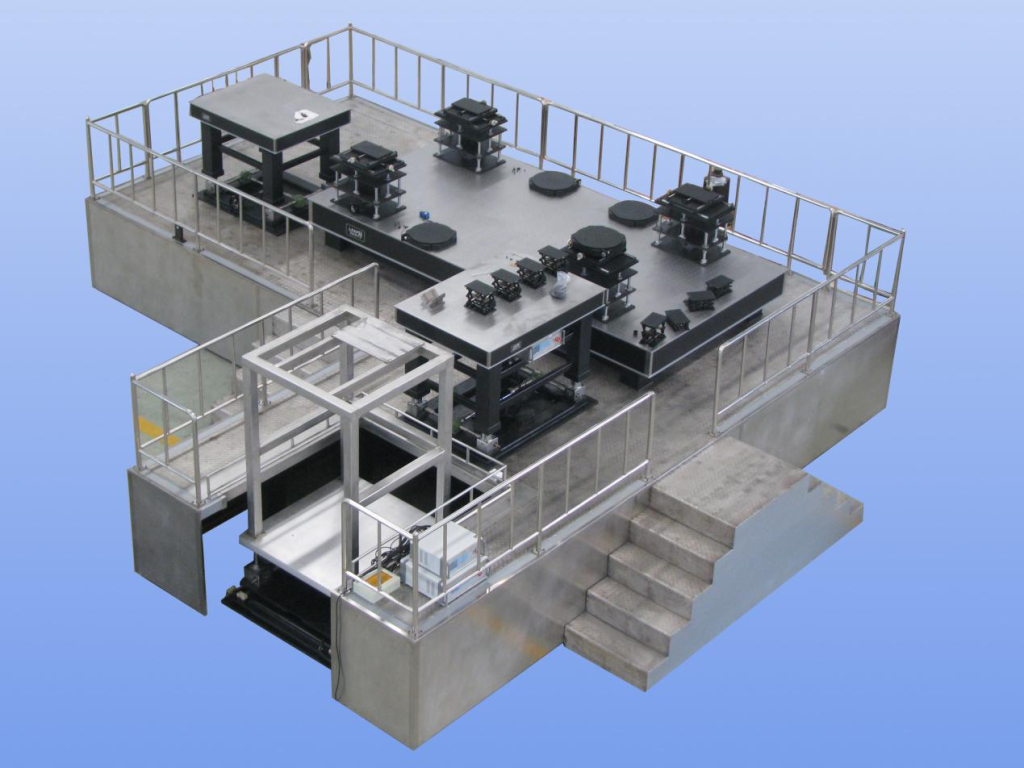

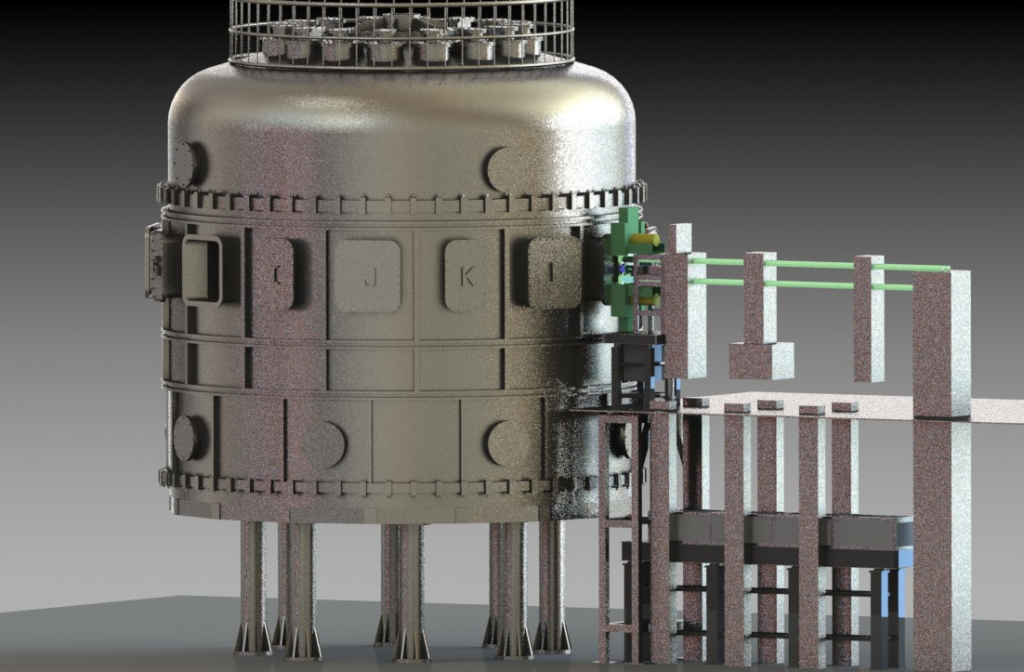

5. Frame platform
5.1 The main components of the frame platform system: five main parts namely main steel plates of the platform (spliced anti-slip stainless
steel plates), welded frame structural mechanism, support mechanism, connecting rod mechanism, and side sealing frame plate mechanical
structure;
5.2. The frame panel is made entirely of 6mm anti-slip stainless steel plates. The panel dimensions are tentatively set at 6900mm×6000mm× 1000mm (length× width×height) (L-shaped). Multiple anti-slip stainless steel plates are fixed to the structural steel frame using bolts or welding. The steel frame is welded entirely from structural steel pipes, with a mesh square welded exterior forming a single frame structure. Seamless steel pipes are mainly used, with grid spacing not exceeding 500mm. Hollow area not exceeding 0.2m²;
5.3. Overall dimensions: 6900mm×6000mm×1000mm (length×width×height);
5.4 The support uses rigid supports, with a support height of 900mm, and 35 units are used;
5.5 Connecting rod reinforcement structure: except for several special positions, all supports are connected using connecting rods to ensure good overall rigidity, good overall performance, and excellent bending and torsion resistance;
5.6. The support section of the frame platform is fully automotive-painted, with the frame platform surface in natural color, side wall packaging in black, and the base plate being treated for rust prevention;
5.7. Additional guardrails around the perimeter, with a height tentatively set at 800mm.
6.Manual rotating platform
6.1. The panel is made of hard aluminum alloy, with a worm gear transmission mechanism, offering high precision, large transmission ratio, and self-locking functions; Panel size: diameter 400mm, panel equipped with standard metric M6 threaded holes of 25mm ×25mm in uniformly distributed array, facilitating installation of matching products;
6.2 Overall platform dimensions: 400mm×400mm× 62mm (length×width×height);
6.3 The platform surface is treated with sandblasting and oxidized blackening;
6.4 Transmission ratio: 720:1;
6.5 Positioning accuracy: 0.005°;
6.6. Rotating platform self-weight: approximately 20kg, load less than 80kg;
6.7. Side-encapsulated frame plate, providing a good overall appearance;
6.8. The frame platform weighs about 5t, with a load less than 12t
7. Two-dimensional manual translation platform
7.1. The panel is made of hard aluminum alloy, with a precision ball screw transmission mechanism, offering high precision, low energy consumption, and long service life. The guide rail uses precision linear slider rails; The platform is divided into two parts: dimensions are: 550mm×600mm×70mm, 675mm×250mm×70mm (length×width×height). The panels are all arranged with arrays of 25mm ×25mm standard metric M6 threaded holes for easy installation of matching products;
7.2 The platform surface is treated with sandblasting and oxidized black;
7.3 Positioning accuracy: 0.03 mm;
7.4 Two-dimensional translation stroke is 200 mm;
7.5. The two-dimensional manual slider platform weighs about 40kg, with a load less than 50kg.
8. Manual lifting platform
8.1. The panel is made of hard aluminum alloy, with a trapezoidal screw transmission mechanism, meticulously crafted worm gear and worm gear drive, offering high precision, large load capacity, and self-locking. The guide rail is a linear bearing guide; Platform dimensions: 600mm×400mm×410mm (length×width×height), with panels arranged in arrays of 25mm ×25mm standard metric M6 threaded holes for easy installation of matching products;
8.2 Platform lifting stroke: 150mm;
8.3 The platform surface is treated with sandblasting and oxidized blackening;
8.4. Positioning accuracy: 0.05mm;
8.5. Manual lifting platform weighs about 55kg, with a load less than 120kg.
9. Fixed lifting rack system
9.1. The entire piece is welded from non-magnetic stainless steel (0Cr18Ni9) square tubes, with dimensions designed according to the superconducting magnet electric three-dimensional moving platform. A manual hoist is installed on top to facilitate lifting equipment and instruments.
9.2. Considering the installation position of the amplifier, specific dimensions will be determined in the supplementary agreement.
10. Fixture
10.1. The fixture is composed of our company’s existing LSSS-120JS lifting platform combined with a designed fixed fixture base. Below, 4-5 manual lifting platforms (LSSS-120JS) are fixed to the platform or lifting rack. Dimensions: 220mm×140mm×90mm (length×width×height), and 120mm stroke, allowing manual height adjustment. Then, fix the fixture base on the lifting platform, with dimensions of: 80mm×120mm×120mm (length×width×height);
10.2 Manual lifting platform;
10.3 Single lifting platform load 30 kg, self-weight 3.5 kg;
10.4 Lifting platform resolution: 0.01 mm;
10.5 Fixture base weight about 1 kg, load is: 30 kg.

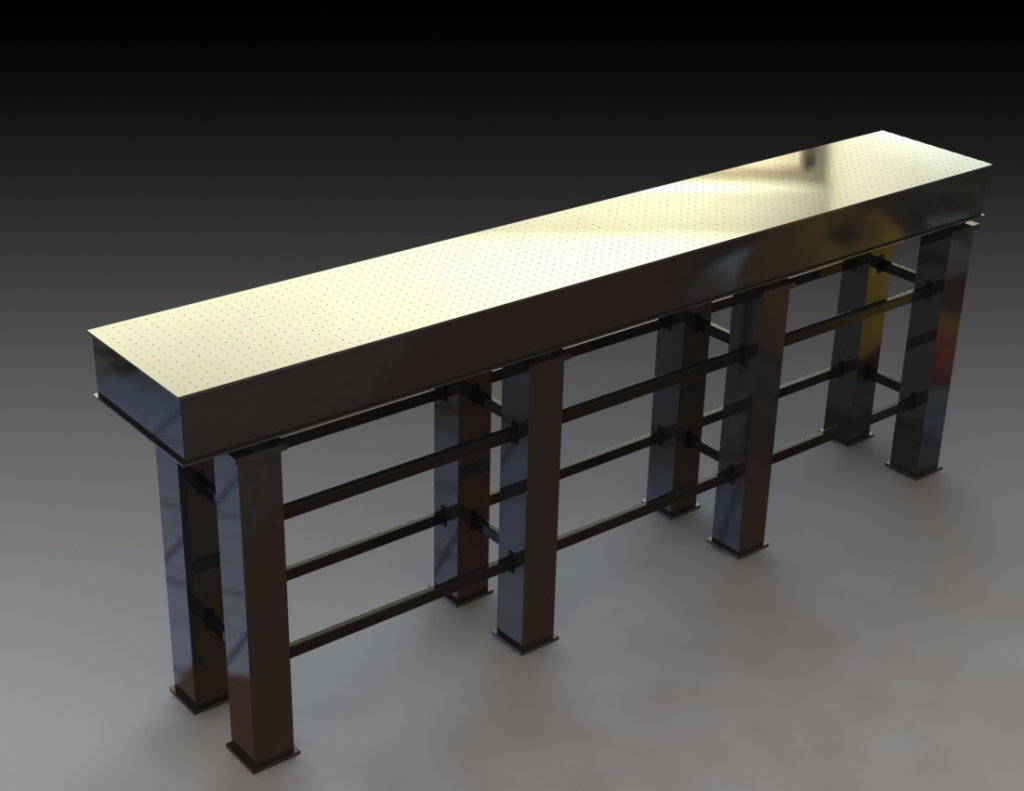

1. POT-G vibration-isolated platform, 5000mm (L) x 780mm (W) x 1800mm (H)
1.1 Components: Tabletop, solid rubber isolator, manual leveling system
1.2 Tabletop dimensions: 5000mm×780mm× 300mm (length×width×height), all steel-concrete platforms, solid rubber isolator height 1600mm (adjustable ±5mm)
1.3. Inherent frequency: 6~10Hz
1.4. Maximum width: ≤5μm
1.5. Damping ratio: 0.2~0.4
1.6. Tabletop flatness: 0.05mm/m²
1.7. Desktop roughness: <0.8μm
1.8. Mounting hole specifications: M6 threaded hole array, hole spacing 50mm×50mm, edge spacing 50mm×50mm
1.9. Internal platform filled with vibration-damping material

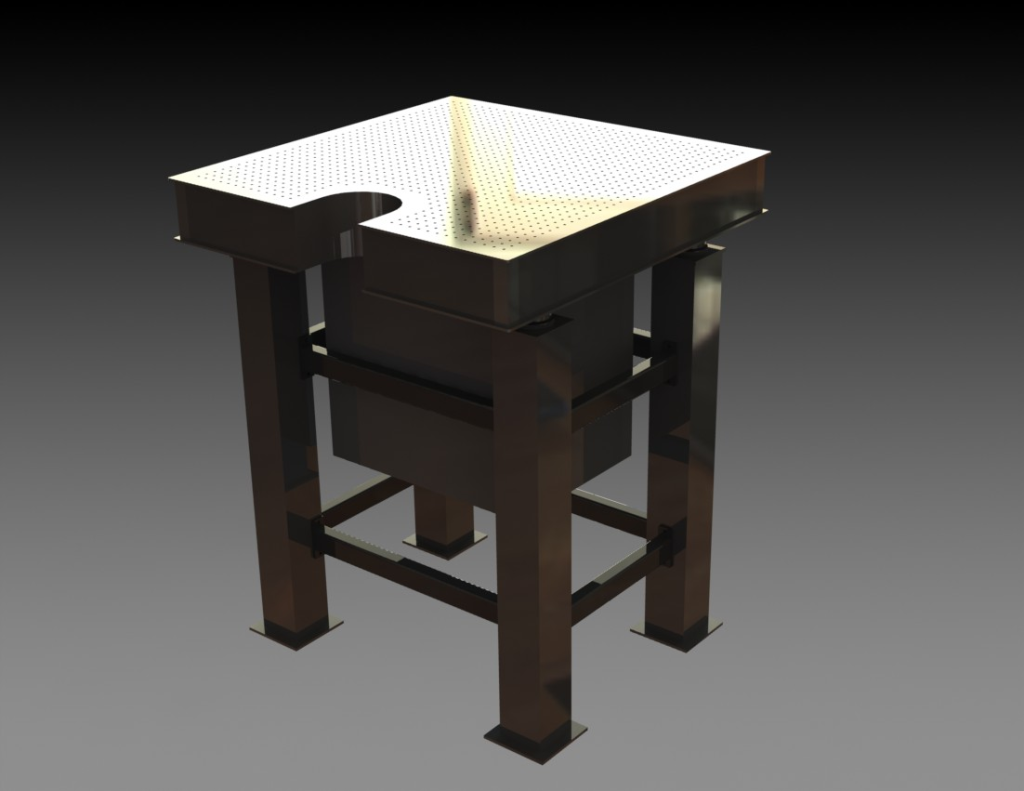

2. POT-G vibration-isolated platform, 1000mm (L) x 800mm (W) x 1250mm (H)
2.1 Components: Tabletop, solid rubber isolator, manual leveling system, counterweight system
2.2 Tabletop dimensions: 1000mm×800mm× 150mm (length× width× height), all steel-concrete platforms, solid rubber isolator height 1100mm (adjustable ±5mm)
2.3. Inherent frequency: 6~10Hz
2.4, Maximum magnitude: ≤5μm
2.5. Damping ratio: 0.2~0.4
2.6. Tabletop flatness: 0.05mm/m²
2.7. Table roughness: <0.8μm
2.8. Mounting hole specifications: M6 threaded hole array, hole spacing 25mm×25mm, edge spacing 50mm×50mm
2.9. The platform is filled with vibration-isolating damping material, with a groove on one side of the platform

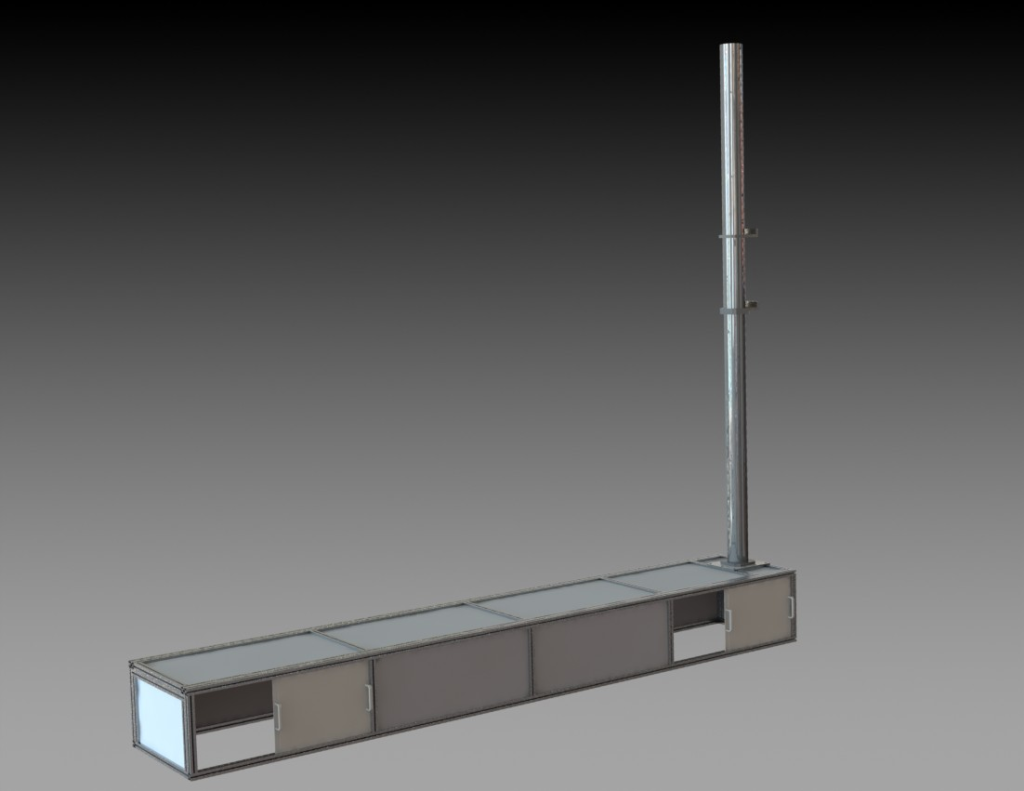

3. Optical path cover
The optical path cover is divided into two parts. One is a single layer, with dimensions of 4500mm× 780mm× 500mm (length× width× height). The outer frame is made of aluminum profiles, with a shining silver aluminum composite panel installed on the inside, thickness 8.0mm. The upper rear end has an opening designed to connect with the sealed optical path tube, and the two lenses have side sliding doors for convenient maintenance .
The other part consists of two parts: 150mm×1760mm (diameter × height) and 150mm ×1800mm (diameter × height), which are joined together to facilitate installation and fixation.

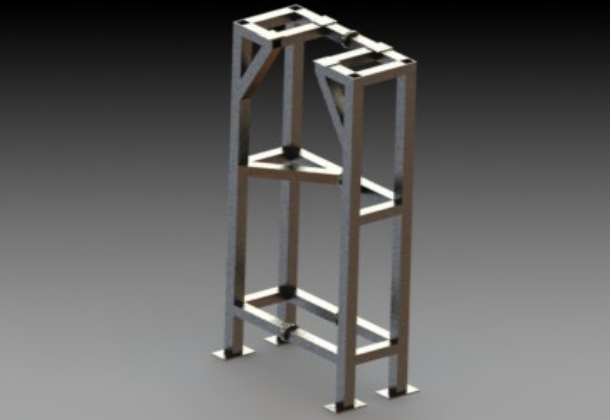

4. Frame body
The designed frame dimensions are: 720mm×1720×3900mm (length×width×height), welded from 316L stainless steel #12 channel steel. To prevent the entire frame from forming magnetic induction circuits and to avoid disconnection and blocking, the main function of the assembly is to serve as the foundation for the two-layer platform.

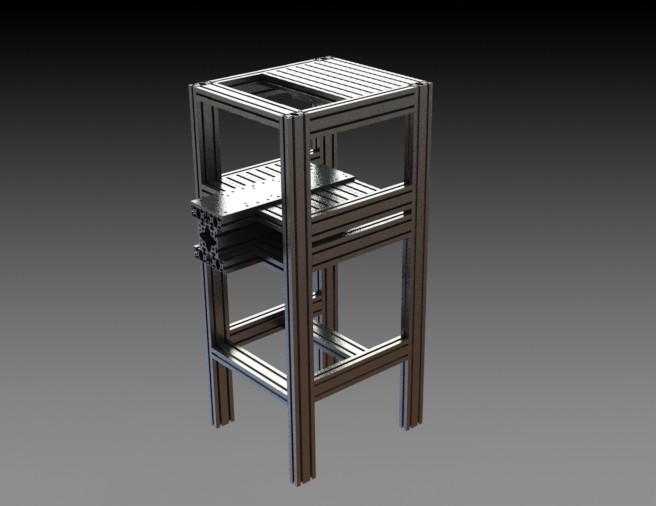

5. Aluminum profile frame
The aluminum profile frame is made entirely of aluminum profiles and aluminum plates, with dimensions of 500mm×580mm×1250mm (length×width×height); Constructed with #2024 aluminum profiles and stainless steel plates, the aluminum profile frame structure provides excellent strength support. The stainless steel is an M6 threaded hole with standard hole spacing array, with a spacing of 25mm × 25mm, fixed on the vibration isolation platform.

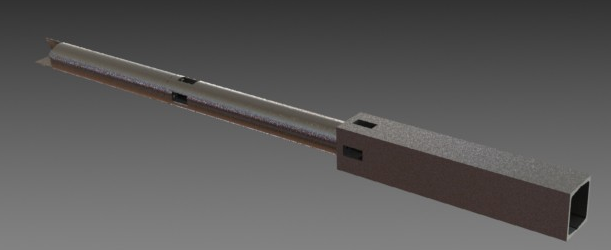

6. Cantilever beam
The cantilever beam is composed of three parts, formed by welding stainless steel pipes to channel steel butt-welded steel pipes. The external dimensions are: 650mm×20mm×110mm (length×width×height), 600mm×90mm (length×diameter) in two pieces; The rear end is fixed to the aluminum profile frame, with a fixed area of 400mm x 110mm. The front end is cut out to secure the lens frame.
