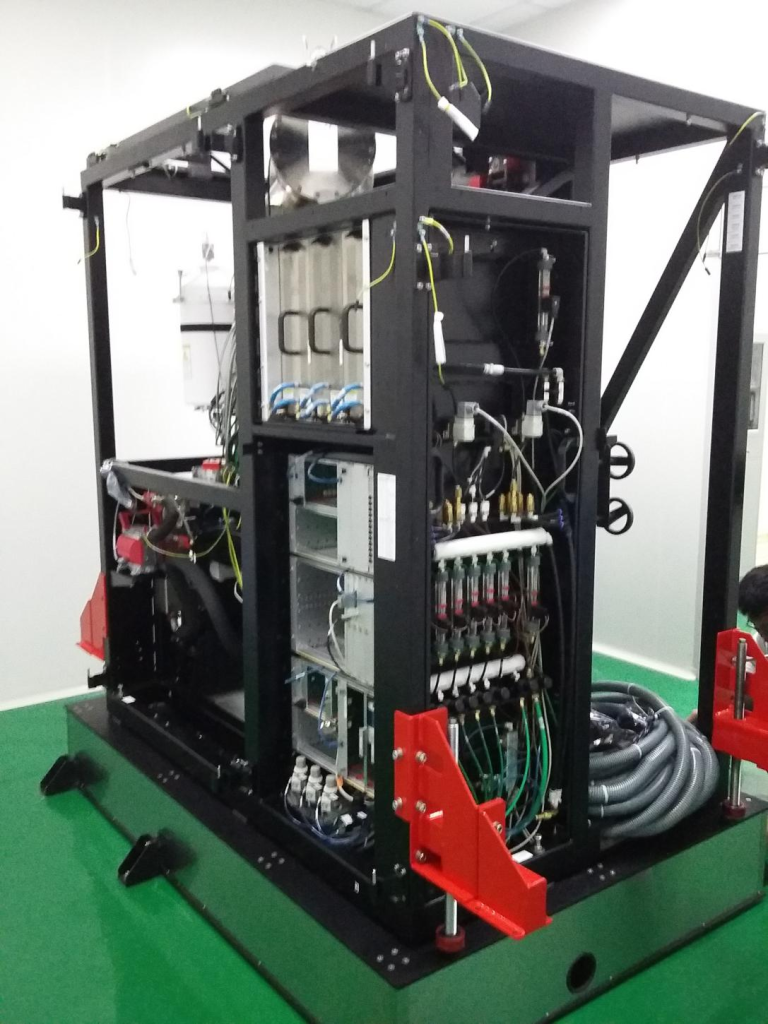

1. Platform dimensions: 2.12 meters × 1.65 meters × 0.3 meters (length× width× height)
2. Components: External customized rigid platform, internal installation of active vibration isolation platform
3. Rigid platform dimensions: 2120mm×1650mm× 300mm (length×width×height)
4. The active seismic isolation platform base is welded together from channel steel and steel plates, welded integrally to the base plate
5. The platform as a whole is leveled using 27 M12 bolts, with an additional 12 leveling bolts distributed around the active isolation platform
6. Six support feet are installed around the platform. After leveling, the support legs are adjusted into place and fixed to the
platform frame.
7. After the platform is installed in place and leveled, the platform can be fixed to the ground using six support feet using ground anchor bolts.
8. There is a notch at one corner of the platform panel. This facilitates the installation of the active platform. Once the active platform is in place, a removable L-shaped plate is used to fill the missing corners
9. This platform can achieve active vibration isolation in designated areas
