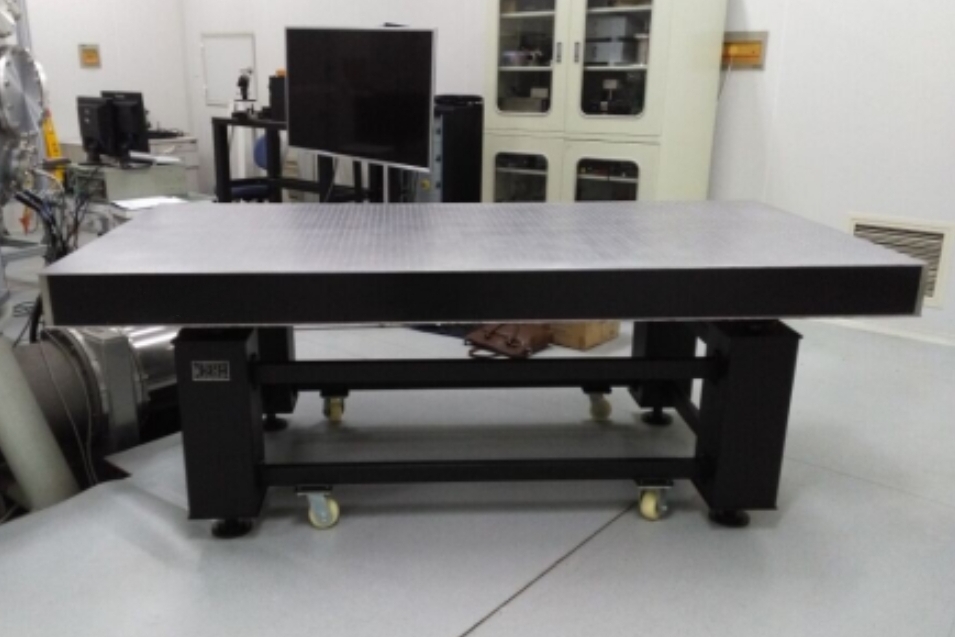

Vibration-Isolated Platform, 2400mm (L) x 1200mm (W) x 800mm (H), for a Xi’an Institute

Tabletop dimensions: 2400mm×1200mm×150mm (length × width × height), custom thickness. Conventional thickness for this size is 200mm or 250mm
Layout customization: longitudinal layout to reduce interference with other instruments.
Casters: Adjustable casters can be added for flexible platform positioning

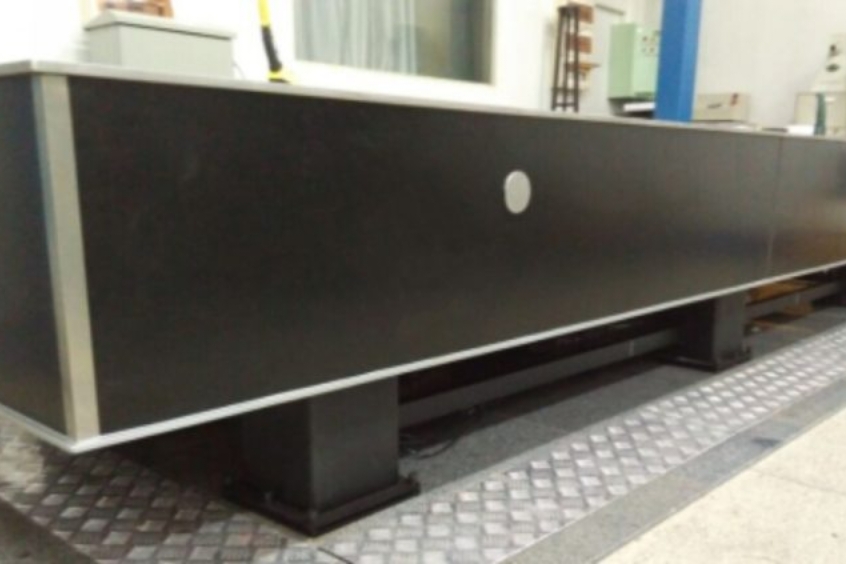

Embedded Vibration-Isolated Platform, 4800mm (L) x 1500mm (W) x 800mm (H)

, for a Changchun Research Institute

Components: Tabletop, air-cushion vibration isolators, control system, external adjustable damping system, air source
Countertop dimensions: 4800mm×1500mm×500mm (length×width×height), overall embedded steel structure platform with embedding depth 200mm, air-cushion vibration isolator height 500mm (adjustable ±10mm).
Inherent frequency: vertical < 1.0Hz; horizontal < 1.5Hz
Tabletop flatness: 0.05mm/m²
Tabletop roughness: 0.8μm
Leveling method: Automatic adjustment,repeatability positioning accuracy is ±0.1mm.
Vibration isolation support working pressure: 0.2~0.6MPa
Mounting hole specifications: M6 screw hole array, hole spacing 50mm×50mm, edge spacing 50mm×50mm
Self-weight load: Platform weight 3.85t, load capacity 1t
Others: Low center of gravity, suitable for uneven loads, good stability

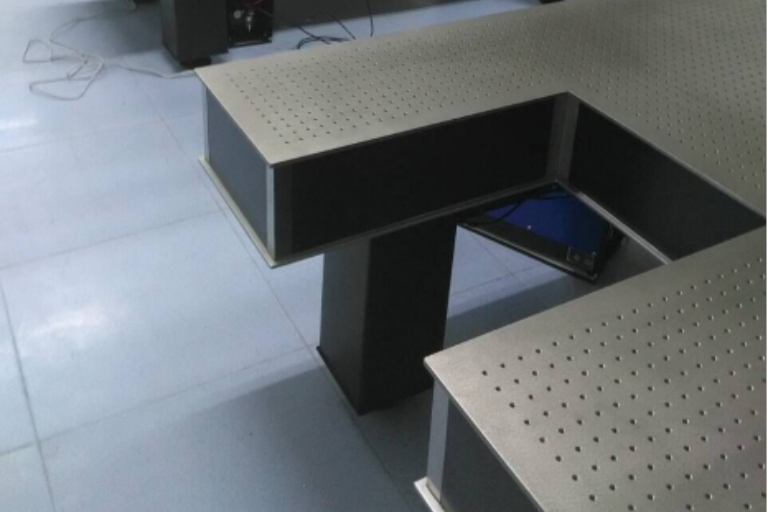

U-Shaped Notch Vibration-Isolated Platform, 2500mm (L) x 1200mm (W) x 800mm (H), for a Zhejiang University

Components: main steel platform, vibration isolation support system, pneumatic control system, air source
Countertop dimensions: 2500mm×1200mm×200mm (length×width×height), one side U-shaped notch
Vibration isolators: 4 ZDT200 units, height 600mm
Inherent frequency: ≤2Hz
Flatness of the tabletop: ≤0.05mm
Countertop surface roughness: ≤0.8μm
Mounting hole specifications: M6 metric threaded array holes, hole spacing 25mm ×25mm,the distance from the edge to the center of the row of holes is 50mm on each side, surface matte finish
Self-weight load: about 750kg, uniformly distributed load within 200kg.At maximum load, the instrument’s center of gravity height not exceeding 100mm

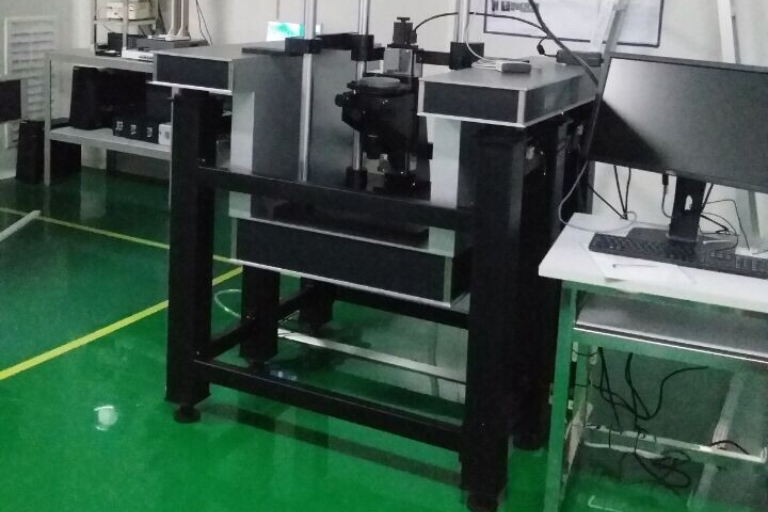

Concave Centered Vibration-Isolated Optical Platform, 1200mm (L) x 1000mm (W) x 1200mm (H),for a Shanghai Company

Components: Main steel bracket platform of the vibration isolation platform, vibration isolation support system (including connecting rods), pneumatic control system, air source
Recessed operation surface height from ground: 600mm
Tabletop dimensions: 760mm×750mm× 150mm (length × width × height)
Weight: Table weight about 120kg, total steel weight of bracket and platform about 360kg, plus load-bearing capacity 250kg, Total weight 610kg
Vibration isolation supports: 6 ZDT100 units, height 1100mm
Vibration isolation supports; working pressure: 0.2~0.4MPa
Inherent frequency: ≤2Hz
System leveling method: automatic adjustment
