Introduction: The urgent need for the application of vibration isolation platforms in university research

As the core battlefield for cutting-edge technological exploration, university laboratories have extremely high sensitivity to environmental vibrations with precision instruments. For example, the nanoscale measurement accuracy of laser interferometers and the sub angstrom imaging resolution of electron microscopes may both result in data bias due to ground vibrations or equipment resonance.

The application of vibration isolation platforms in universities has become a key means of vibration isolation, and has become an "invisible pillar" for universities to improve research efficiency. Its importance is particularly prominent in disciplines such as optics, materials, and quantum.

Scenario adaptation: Multidisciplinary demand drives the application technology upgrade of vibration isolation platforms in universities

The vibration interference sources in university laboratories are complex and diverse, including building floor vibration (0.5-50Hz), equipment operation vibration (50-200Hz), and low-frequency vibration caused by personnel activities (1-5Hz). For different scenarios, the application of vibration isolation tables in universities needs to achieve differentiated design:

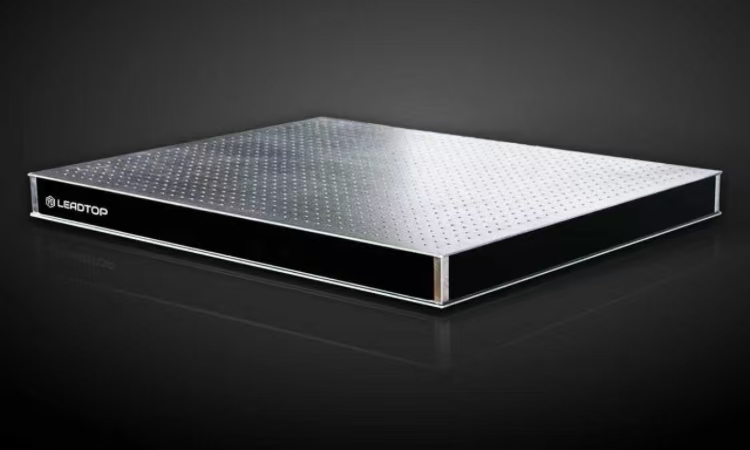

In the field of microscopic imaging, biological microscopes require isolation of mid to high frequency vibrations caused by human movement. Traditional rubber isolation tables can meet the requirements, but LeadTop's honeycomb core optical platform MOT-F series has a hexagonal lightweight and high-strength design, which reduces the natural frequency to 3-5Hz and improves the isolation efficiency by 20%, significantly optimizing the application of university isolation tables in biological laboratories.

In the field of laser measurement, laser interferometers are extremely sensitive to vibration. LeadTop's air floating pendulum type isolation optical platform ZDT-B series works together with the pendulum through air springs to reduce the horizontal natural frequency to 1.0-1.5Hz, and with a 95% @ 10Hz isolation efficiency, ensures nanometer level measurement accuracy, becoming a benchmark product for university isolation tables applied in laser laboratories.

Industrial testing scenario: Heavy equipment such as coordinate measuring machines require support for irregular platforms. LeadTop's MOT-Y series offers customized L-shaped and U-shaped non-standard sizes, with medium carbon steel plate structures capable of carrying loads of over 100kg. At the same time, resonance is suppressed through built-in damping materials, expanding the boundaries of the application of university isolation tables in industrial testing scenarios.

Technological Integration: Collaborative Innovation of Active and Passive Vibration Isolation for the Application of Vibration Isolation Platforms in Universities

The demand for low-frequency vibration isolation in university research is increasing day by day, and active vibration isolation technology has become a key breakthrough in the application of university vibration isolation platforms. LeadTop's LHV series active isolation module adopts six degrees of freedom precision control, and outputs reverse force within 10-20ms through electromagnetic actuators, suppressing 5Hz vibration displacement from 0.05mm to below 0.005mm.

Conclusion: The application of vibration isolation platforms in universities helps universities to reach new heights in scientific research

The technological evolution of the application of vibration isolation platforms in universities, from passive isolation to active control, from standard platforms to customized shapes, is driving the expansion of scientific research in universities towards higher precision and wider scenarios. LeadTop and other brands have integrated material innovation with intelligent algorithms to provide universities with vibration control solutions that cover all frequency bands and scenarios, becoming the "stabilizer" for breakthroughs in university research. The future of the application of vibration isolation platforms in universities is worth looking forward to.
