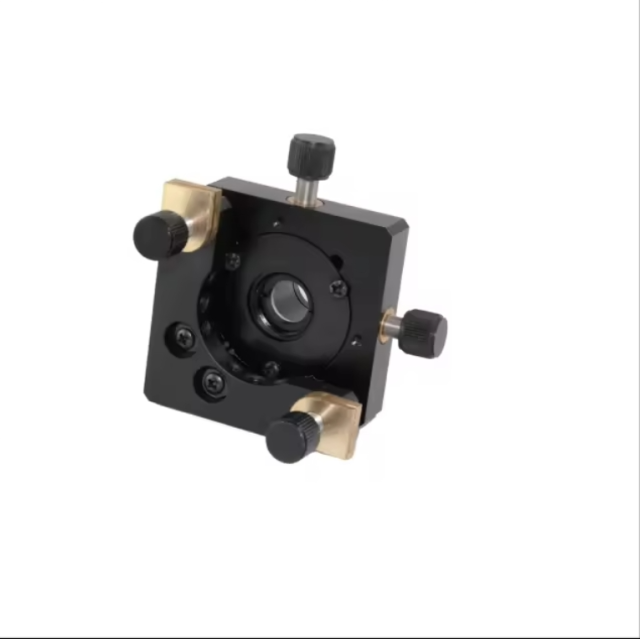

Optical adjustment frame series products, because of its ultra-fine resolution (adjustment screw pitch is only 0.25mm), so it has ultra-high precision and stability (high-performance imported disc spring reset), a wide range of applications (up to 100 kinds of specifications), beautiful appearance, cost-effective, and widely used in optical related scientific research, teaching, industrial products, especially in the field of laser application. It also highlights its unique performance.

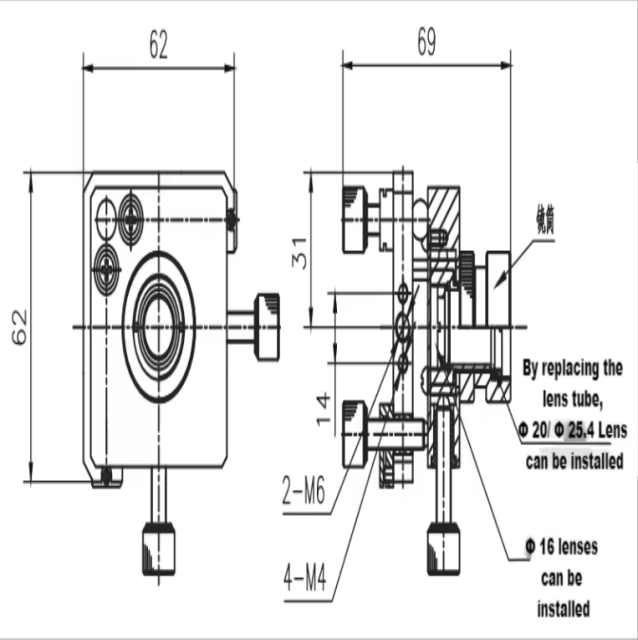

Product Features M6x0.25 fine thread screw adjustment (with copper nut), disc spring reset, adjustable reset force, from zero to rigidity; The lens tube is equipped with a clip lens, which can be fixed to the adjustment bracket after the lens is installed; PTFE gasket for protecting lenses; Two directional mounting holes, suitable for different optical path directions. Two dimensional tilt adjustment range ± 4 °; It can translate the lens in two dimensions; Other sizes of lenses and frames can be customized.
