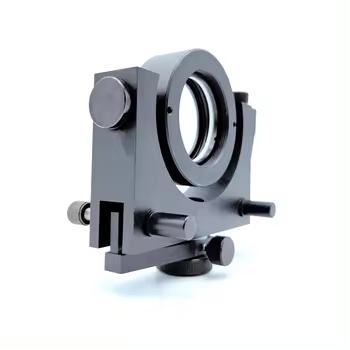

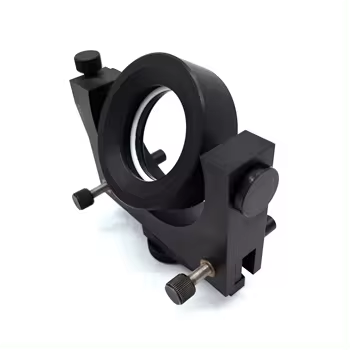

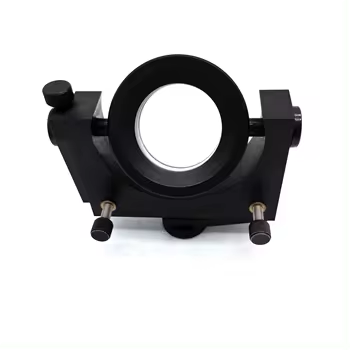

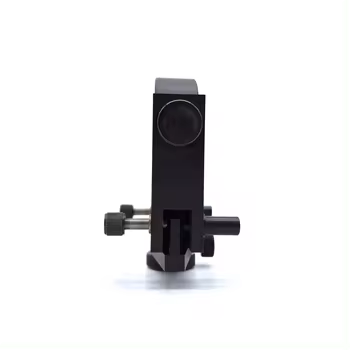

LDTTF40-TZ-1YT Optical Adjustment Frame series

No.LDTTF40-TZ-1YT

The two rotation axes are orthogonal and coplanar, so the lens can be adjusted in two dimensions orthogonal and coplanar to ensure that the optical path is unchanged;
M6x0.25 fine screw adjustment (with copper nut);
360° coarse adjustment, ±3° fine tuning.

$80.60

Description
Services & Guarantee

PRODUCT INTRODUCTION
Optical adjustment frame series products, because of its ultra-fine resolution (adjustment screw pitch is only 0.25mm), so it has ultra-high precision and stability (high-performance imported disc spring reset), a wide range of applications (up to 100 kinds of specifications), beautiful appearance, cost-effective, and widely used in optical related scientific research, teaching, industrial products, especially in the field of laser application. It also highlights its unique performance.
KEY ATTRIBUTUES

Place of Origin	Jiangxi, China
Warranty	1 years
Customized support	OEM
Brand Name	customization
Model Number	LDTTF40-TZ-1YT
Material	metal
Power	Micrometer Screw
Voltage	NO
Model	LDTTF40-TZ-1YT
Product Name	High Precision Mirror Mount
MOQ	1pcs
certificate	CE ISO
Adjustment range	Coarse: 360°Fine: ±3°
Net Weight	0.6kg
Installation Diameter	40

PURCHASE PARAMETERS

PACKING AND DELIVERY

Selling Units:	Single item
Single package size:	11.2X10.3X5 cm

Single gross weight:

0.700 kg

LEAD TIME

Quantity (pieces)	1 - 500	> 500
Lead time (days)	43	To be negotiated

SAMPLES

Maximum order quantity: 1 piece

Sample price:

$85.00/piece
