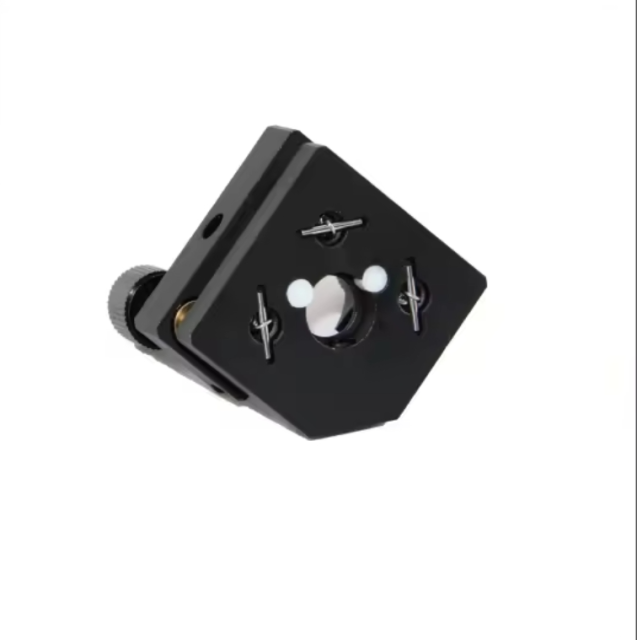

LDTBFxx-1ZT Optical Adjustment Frame small caliber series

No.LDTBFxx-1ZT

M6x0.25 fine screw adjustment (with copper nut), three spring resetting, soft and continuous adjustment without dead point;
Direct card lens, three-point polytetrafluoroethylene support, protective lens;
Two mounting holes for different optical path directions.
Adjustment range ±3°.

$13.80

LDTBFxx-1ZT:

LDTBF8-1ZT

LDTBF10-1ZT

LDTBF12.7-1ZT

LDTBF16-1ZT

Get The Latest Quote

Description
Services & Guarantee

PRODUCT INTRODUCTION
Optical adjustment frame series products, because of its ultra-fine resolution (adjustment screw pitch is only 0.25mm), so it has ultra-high precision and stability (high-performance imported disc spring reset), a wide range of applications (up to 100 kinds of specifications), beautiful appearance, cost-effective, and widely used in optical related scientific research, teaching, industrial products, especially in the field of laser application. It also highlights its unique performance.
KEY ATTRIBUTUES

Place of Origin	Jiangxi, China
Warranty	1 years
Customized support	OEM
Brand Name	customization
Model Number	LDTBFxx-1ZT
Material	metal
Power	Micrometer Screw
Voltage	NO
Model	LDTBFxx-1ZT
Product Name	High Precision Mirror Mount
MOQ	1pcs
certificate	CE ISO
Adjustment range	±3°

PACKING AND DELIVERY

Selling Units:	Single item
Single package size:	5X5X3 cm
Single gross weight:	0.500 kg

PURCHASE PARAMETERS

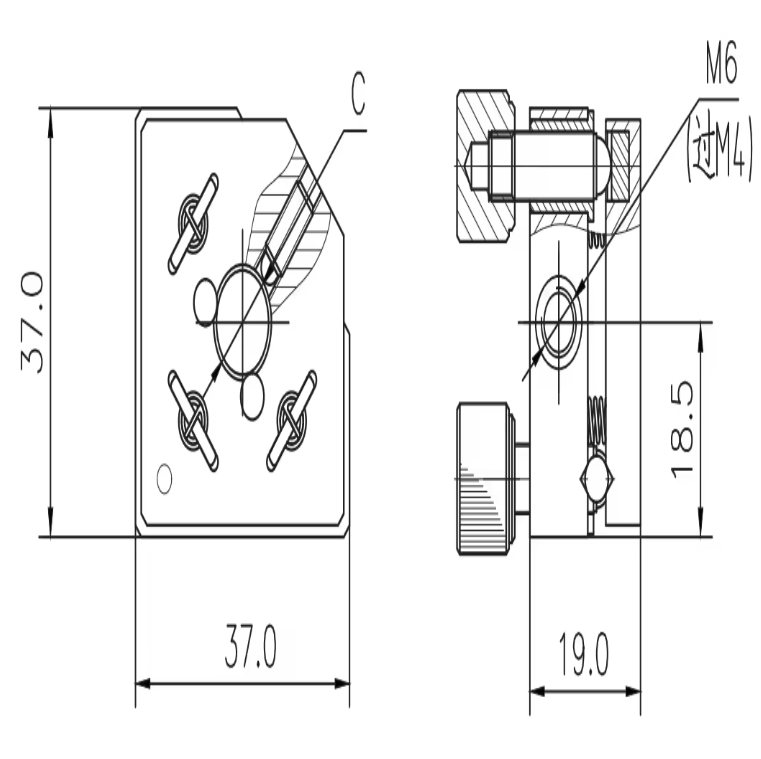

Model	LDTBF8-1ZT	LDTBF10-1ZT	LDTBF12.7-1ZT	LDTBF16-1ZT	LDTBF50.8-1ZT
C(lens diameter)	8	10	12.7	16	50.8
Self Weight(Kg)	0.1	0.1	0.1	0.1	0.22

LEAD TIME

Quantity (pieces)	1 - 500	> 500
Lead time (days)	43	To be negotiated

SAMPLES

Maximum order quantity: 1 piece

Sample price:

$33.00/piece
