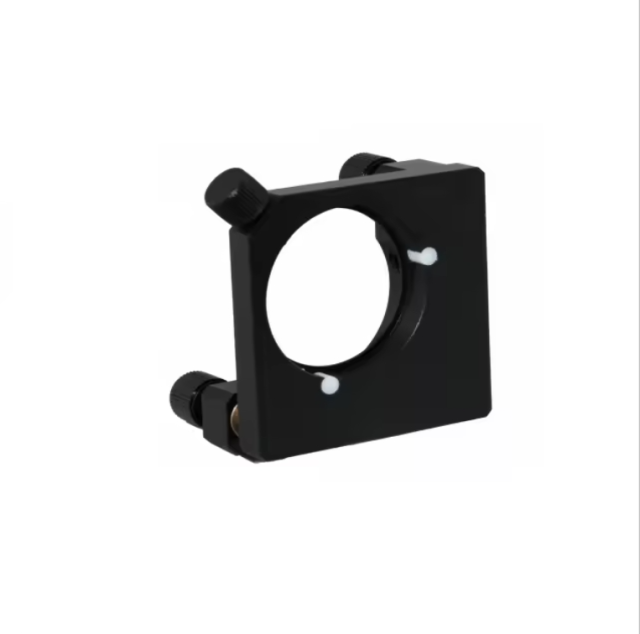

LDTBFxx-2ZT Optical Adjustment Frame

No.LDTBFxx-2ZT

M6x0.25 fine-tooth screw adjustment (with copper nut), multi-group resetting spring, strong resetting force, soft and continuous adjustment without dead point direct clamping lens, three-point polytetrafluoroethylene support, protecting lens; Polytetrafluoroethylene gasket, protective lens;
Two mounting holes for different optical path directions.
Adjustment range ±4°.
Frames of other sizes can be customized.

$42.00

LDTBFxx-2ZT:

LDTBF38.1-2ZT

LDTBF40-2ZT

LDTBF76-2ZT

Get The Latest Quote

Description
Services & Guarantee

PRODUCT INTRODUCTION
Optical adjustment frame series products, because of its ultra-fine resolution (adjustment screw pitch is only 0.25mm), so it has ultra-high precision and stability (high-performance imported disc spring reset), a wide range of applications (up to 100 kinds of specifications), beautiful appearance, cost-effective, and widely used in optical related scientific research, teaching, industrial products, especially in the field of laser application. It also highlights its unique performance.
KEY ATTRIBUTUES

Place of Origin	Jiangxi, China
Warranty	1 years
Customized support	OEM
Brand Name	customization
Model Number	LDTBFxx-2ZT
Material	Aluminum Alloy
Power	Micrometer Screw
Voltage	NO
Model	LDTBFxx-2ZT
Product Name	High Precision Mirror Mount
MOQ	1pcs
certificate	CE ISO

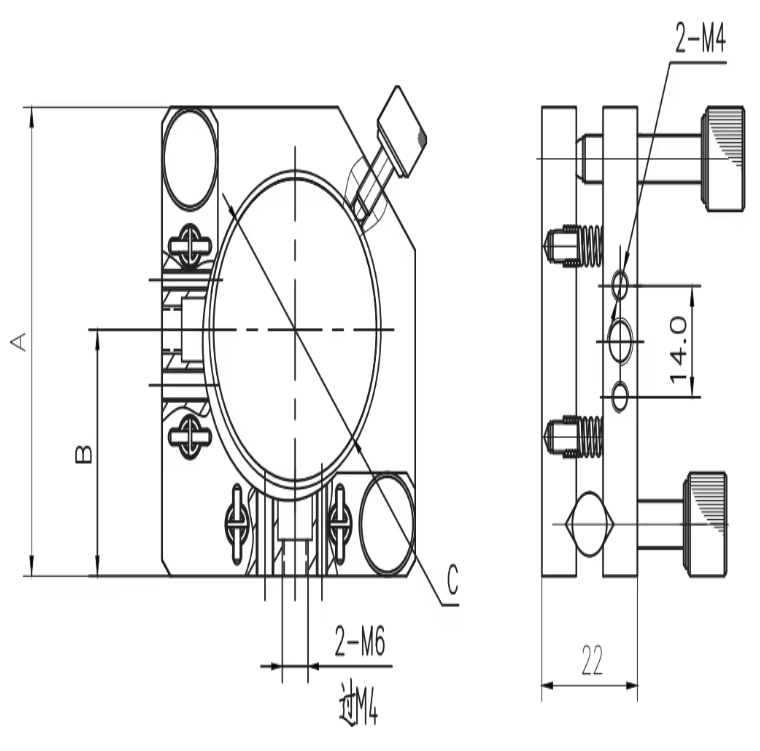

PURCHASE PARAMETERS

Model	LDTBF38.1-2ZT	LDTBF40-2ZT	LDTBF76-2ZT
A	59	59	96
B	29.5	29.5	53
C(lens diameter)	38.1	40	76
Self Weight(Kg)	0.26	0.26	0.35

PACKING AND DELIVERY

Selling Units:	Jiangxi, China
Single package size:	5X5X3 cm

Single gross weight:

0.500 kg

LEAD TIME

Quantity (pieces)	1 - 500	> 500
Lead time (days)	43	To be negotiated

SAMPLES

Maximum order quantity: 1 piece

Sample price:

$42.00/piece
