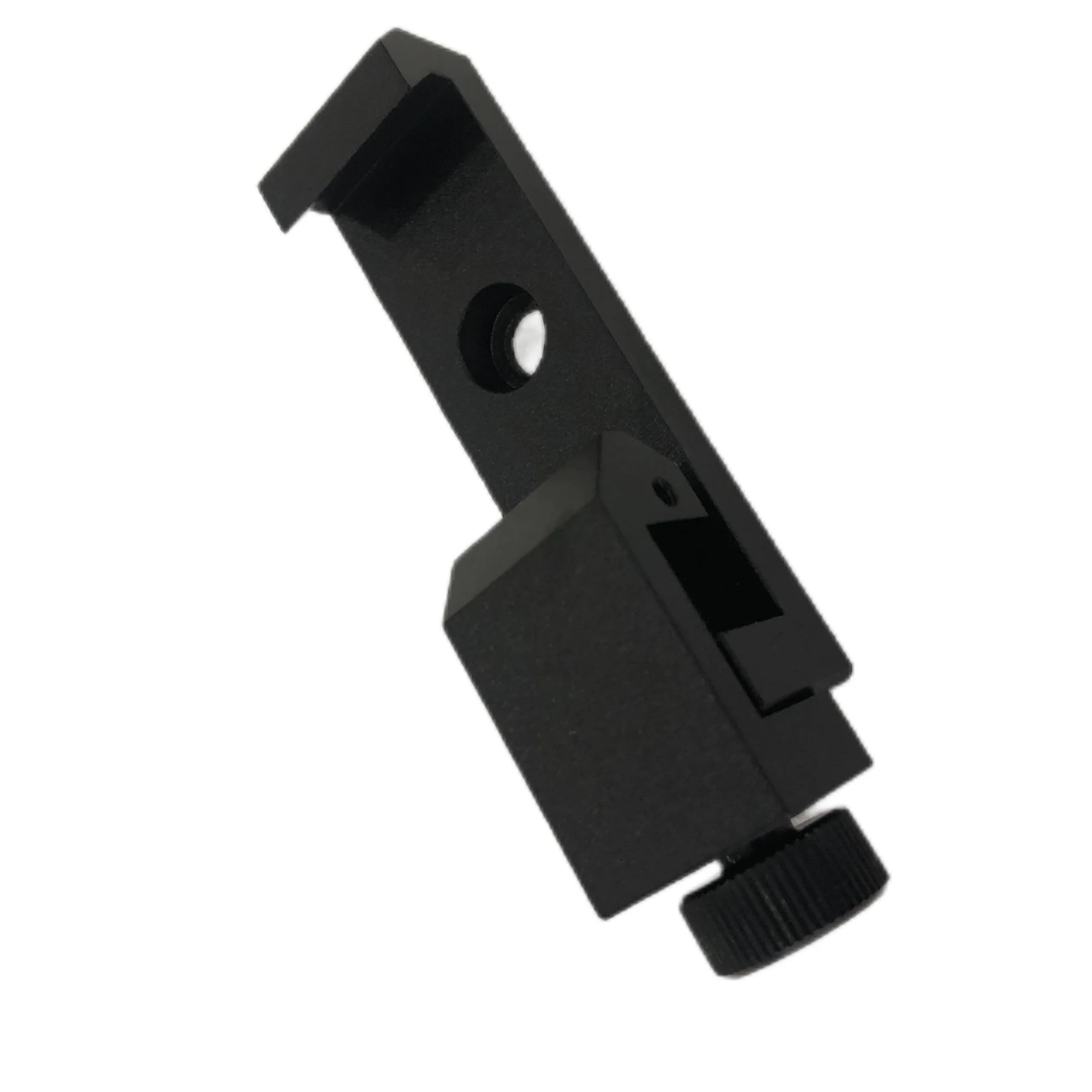

LDTDG2-88 Optical slide and Slide Loading Blocks Net Weight 0.3kg with High Precision
No.LDTDG2-88
Adopting a dovetail structure, it is used in conjunction with the series LSDG1-xx slide rail, which is easy to adjust and has good repeatability. The rigid locking handwheel with a plastic head is firmly locked and does not damage the light fixture seat. The sliding seats of various widths are suitable for different distances. The sliding seats can be horizontally adjusted, and the adjustment mechanism is driven by M6x0.25mm ultra-fine tooth screws, with precision linear guide rail guidance, spring reset, high accuracy, and good stability. Multiple hole distances can be matched with various adjustment mechanisms of the company, making it convenient for users to build a simple light path system.
