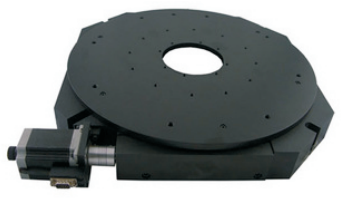

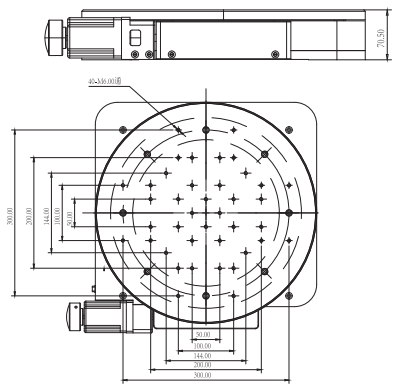

LDTDH-400WS-H Motorized Rotary Stages

No.LDTDH-400WS-H

Features:
Prototype stepper motors and DB interface
High precision worm gear bearings
Clock wise and anti-clock rotations with tiny backlash
High precision scaling for rotating degree reading
The stepper motor is jointed with the worm gear by high quality coupling with synchronized transmission.

$3428.57

Description
Services & Guarantee

Product Features:
The central through hole of the rotary table has strict coaxiality requirements with the rotation center, and the central aperture of the rotary table has strict matching tolerance limits, which is convenient for customers to do precise positioning; the scale ring on the periphery of the table is a laser-engraved scale, which is convenient for initial positioning and reading; the stepper motor and worm are connected by imported high-quality elastic couplings, with synchronous transmission and good deflection elimination performance, which greatly reduces eccentric disturbance and has low noise; the electric rotary table can be used horizontally or vertically, and can be used with other types of tables to form a multi-dimensional electric adjustment table.
Technical Specification:

Product Model	LDTDH-200WS-H	LDTDH-400WS-H
Transmission Ratio	180:1	720:1
Platform Diameters	200mm	400mm
Resolution	4.5”	1.125”
Repeating Accuracy:	＜7.2”	7.2”
Motor	57BYGH(1.8°）	57BYGH(1.8°）
Backlash	7.2”	7.2”
Max Speed	25°/Sec	5°/Sec
Eccentric	20μm	30μm
Net Weight	12kg	28kg
Load Capacity	80kg	100kg
