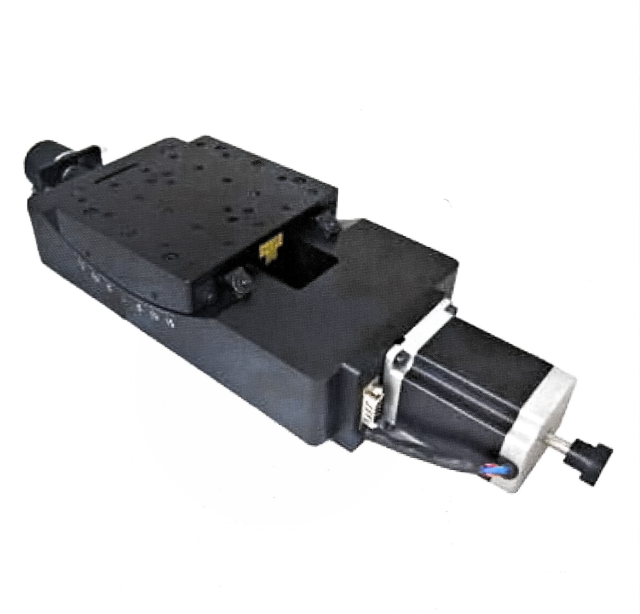

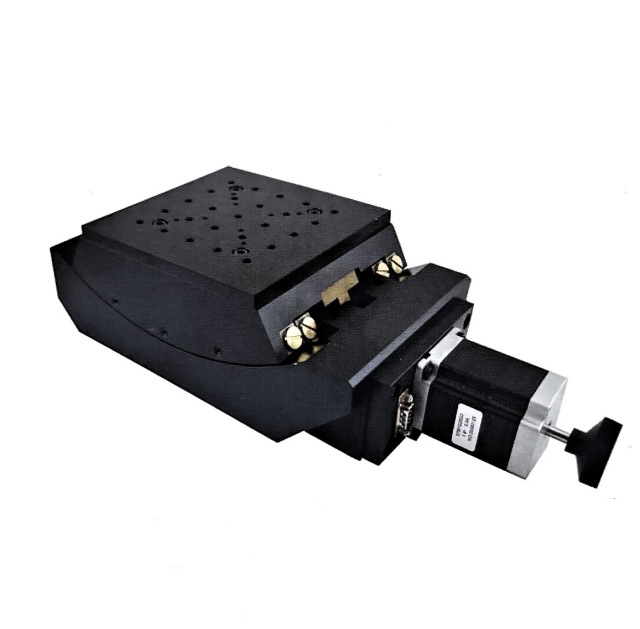

LDTDJ-10HW-02 Series Motorized Goniometer Stages

No.LDTDJ-10HW-02

Features:
It is equipped with stepper motor and DB interface as standard, and can realize automatic control with our company's motion controller. The rotating shaft system is precision-machined by multiple processes, with high matching accuracy, large load-bearing capacity and long service life. It adopts precision-matched worm gear structure.

$928.57

Description
Services & Guarantee

Product Features:
The product structure is small and thin, suitable for light load, low speed use, and scientific experiments.High-quality precision ground screw drive, small lead, the same subdivision number can achieve higher resolution..The clever design of the anti-backlash nut structure can minimize the gap of the ground screw pair.The guide rail adopts a cross roller guide rail, which is comfortable to move, has the function of lateral adjustment of the guide rail preload and anti-backlash, and can be used in multiple combinations.Zero position and limit switches are installed at both ends to facilitate accurate positioning and protect the product.
Note: Different parameters have different prices, please check the parameter table below
TECHNICAL SPECIFICATIONS:

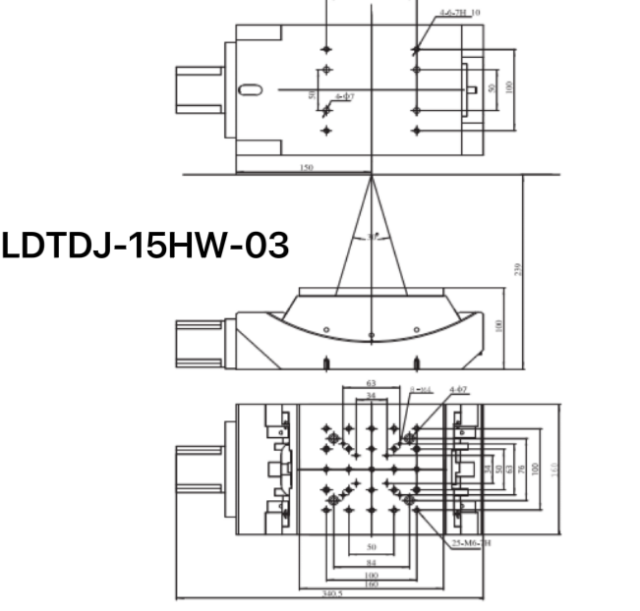

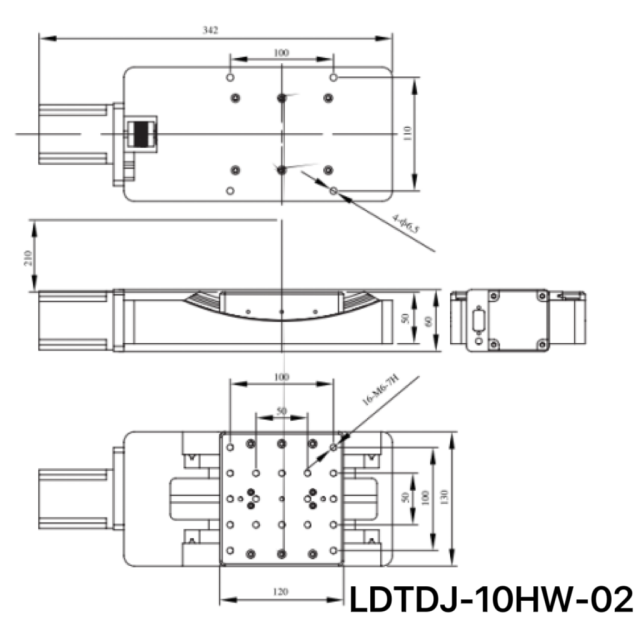

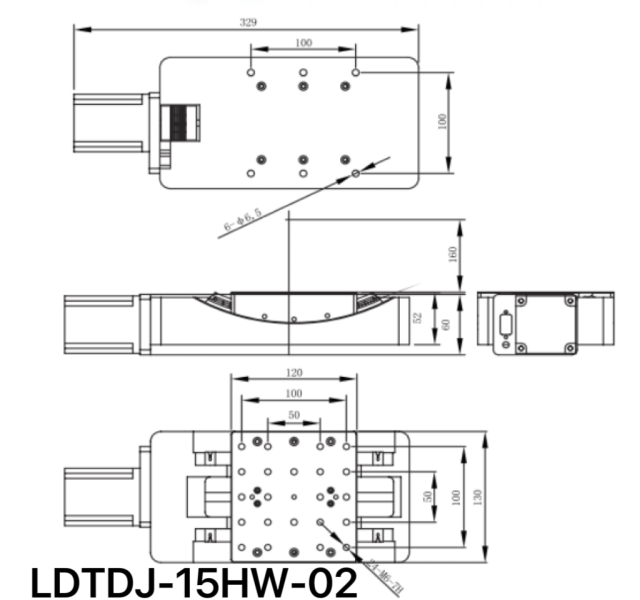

Product Model	LDTDJ - 10HW - 02	LDTDJ - 15HW - 02	LDTDJ - 15HW - 03
Price	$928.57	$928.57	$1000.00
Platform Dimension	120X130mm	120X130mm	160X160mm
Adjusting Angle Range	±10°	±10°	±15°
Transmission Ratio	464:1	372:1	400:1
Center Height	210mm	160mm	139mm
Guide Rail	Arc-shaped Crossed Roller	Arc-shaped Crossed Roller	Arc-shaped Crossed Roller
Prototype Motor	57BYGH(1.8°）	57BYGH(1.8°）	57BYGH(1.8°）
Resolution	1.7”	2.2”	2”
Repeating Accuracy	＜10”	＜10”	＜10”
Max Speed	10°/Sec	12°/Sec	11°/Sec
Load Capacity	15kg	15kg	30kg
Net Weight	9kg	9kg	11kg
