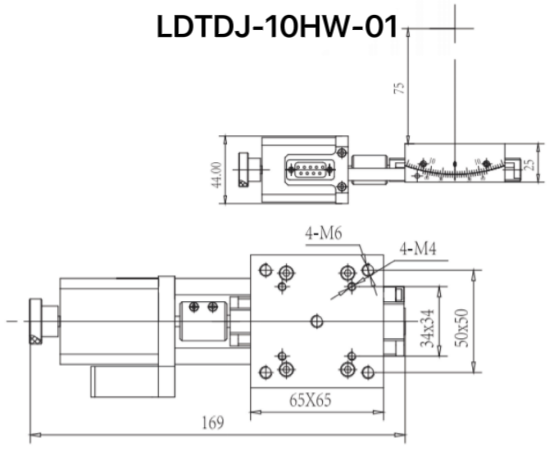

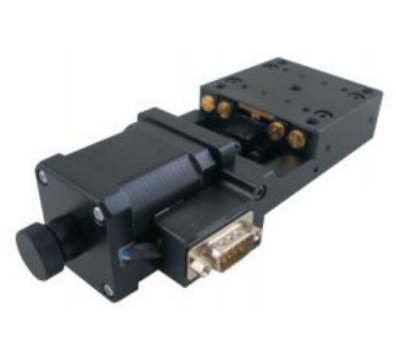

LDTDJ-10HW-01 Series Motorized Goniometer Stages

Product Features:
The special structural design ensures that the table top of the angle table has extremely low deflection and tilt, making the movement smoother; the scale ring on the periphery of the table top is a laser-engraved ruler, which can rotate relative to the table top to facilitate initial positioning and reading; the stepper motor and worm are connected by imported high-quality elastic couplings, with synchronous transmission and good deflection elimination performance, which greatly reduces eccentric disturbance and has low noise; the electric angle table can be used horizontally or vertically, and can be combined with other types of tables to form a multi-dimensional electric adjustment table; the electric angle table is designed in pairs, can be stacked or used alone, and the two rotation radii are carefully designed. After superposition, it can rotate orthogonally in two dimensions around a common point.
Note: Different parameters have different prices, please check the parameter table below
TECHNICAL SPECIFICATIONS:
