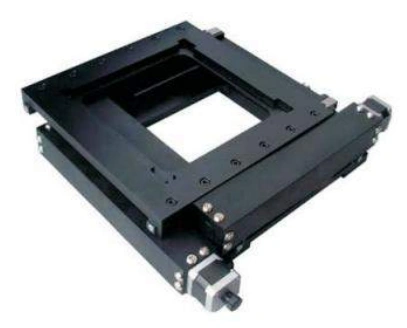

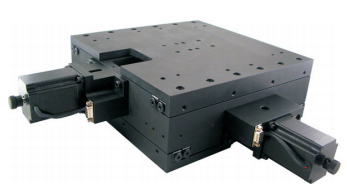

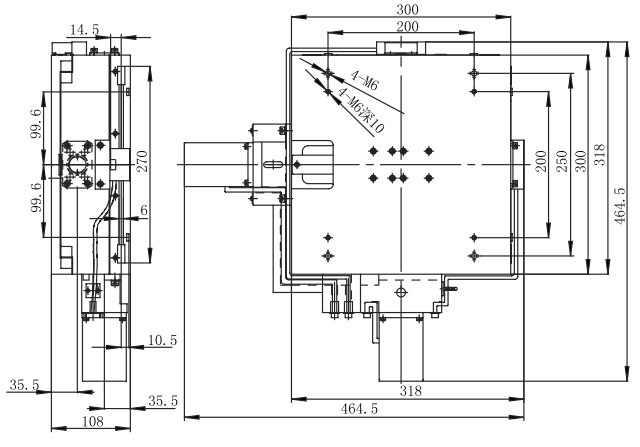

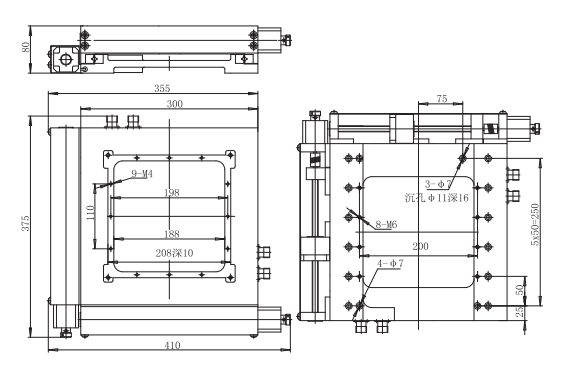

LDTDP- JG Series Motorized XY stage Microscope positioning stage with high precision

Functional Positioning Tailored for Scientific and Industrial Use

The LDTDP-JG Series motorized XY stage is designed primarily for professionals in scientific research, industrial automation, and precision optical instrumentation. As a specialized xy translation stage, it facilitates precise, repeatable movements with scalable load capacities suited for microscope positioning and laser alignment. Users such as research engineers, microscopy specialists, and automation system integrators will find this precision xy stage well-suited for enhancing workflow efficiency and repeatability in high-accuracy XY displacement tasks. The stage’s robust construction and adaptable mounting options support diverse applications requiring stable and controlled motion.

Advanced Technical Design and Specifications Ensuring Precision

Featuring a cross ball guide mechanism integrated with a precision-ground screw drive and dovetail guide rail, the motorized xy stage delivers minimal backlash and outstanding stability. The system supports travel ranges of 50 to 170 mm with resolutions down to 0.625 μm and repeatability under 10 μm, meeting stringent accuracy requirements. Equipped with zero position and limit switches at both ends, the precision xy stage guarantees safety and positioning reliability during automated operations. The back-in-the-air nut structure further reduces screw pair gap, enhancing repeatability and smooth motion performance, ideal for process control and measurement repeatability essential in automated testing environments.

Applications in Scientific Research, Semiconductor, and Optical Calibration

The LDTDP-JG Series motorized xy stage is extensively employed in environments requiring precise XY positioning, such as semiconductor inspection, optical instrument calibration, and automated laser measurement systems. This precision xy stage supplier offers models capable of supporting loads up to 60 kg, making it suitable for handling heavy components in high-volume manufacturing and research testing setups. Its integration into automated inspection and microscope platforms enhances productivity by delivering micron-level position accuracy, enabling users to comply with industrial standards and improve the overall throughput of precision assembly and measurement processes.

Structural and System Design Superiority of the XY Stage

The LDTDP-JG Series offers a structurally optimized motorized xy stage design incorporating cross ball guide technology and a dovetail guide rail, which collectively enhance linear stability and reduce vibrational interference. This precision xy stage is built with a precision-ground screw drive featuring a back-in-the-air nut configuration, effectively eliminating mechanical play and minimizing backlash. The built-in zero position and limit switches provide automated safeguards against overtravel, increasing system reliability during lengthy operation cycles. This modular configuration allows straightforward integration with existing motion control platforms, satisfying the requirements of engineers seeking dependable and precision-aligned XY positioning hardware.

Enhanced Performance and Usability for Automation Systems

Performance-wise, the LDTDP-JG Series delivers excellent repeatability under 10 μm alongside high-speed capability and extended travel range in a compact footprint. As a precision component, this precision xy stage supplier ensures ease of control through electric actuation, enabling programmed, automated displacement tailored to complex research or industrial processes. Its large load capacity supports diverse applications, allowing users to handle heavier specimens or components without sacrificing accuracy or motion smoothness. The system also benefits from low maintenance demands, thus providing operational continuity and maximizing return on investment in demanding laboratory or manufacturing environments.

Technical Specification:

Use Scenarios

Microscope Positioning in High-Precision Laboratory Environments

Within advanced scientific laboratories, the LDTDP-JG Series functions as a critical component of microscope stage positioning systems. It provides precise XY displacement essential for detailed sample analysis and imaging workflows. The device’s high-resolution positioning and minimal backlash enable fine-tuned adjustments under automation control. Its compatibility with microscope setups ensures integration with imaging software and positioning controllers, facilitating repeatable and accurate sample alignment for research in biology, materials science, and nanotechnology. The stage’s capability to handle moderate loads while maintaining micron-level accuracy is crucial for experimental reproducibility and data integrity.

Automated Semiconductor Inspection and Laser Alignment Systems

In semiconductor manufacturing and optical measurement sectors, the LDTDP-JG Series serves as a reliable motorized xy stage for alignment and inspection applications. It supports maintenance of critical tolerances and micron-scale repeatability required for quality assurance of microelectronic components. The stage’s large travel range and load capacity enable precise positioning of wafers or optical devices during automated inspection. It integrates seamlessly with automated test systems, ensuring process consistency and compliance with industry standards. By delivering stable, smooth XY motion controlled through its comprehensive feedback and limit switch system, this precision xy stage enhances throughput and minimizes human error in high-demand semiconductor workflows.

FAQ

What are the travel ranges available for your motorized XY stages?

We offer three standard travel ranges for our motorized XY stage models: 50 mm, 100 mm, and 170 mm on both X and Y axes. If you require a different travel distance, please contact us to discuss potential customization options.

How do you ensure accuracy and repeatability in your precision XY stage?

Our precision XY stage features a cross ball guide, precision-ground screw drive, dovetail guide rails, and a back-in-the-air nut structure. These components minimize backlash and ensure repeatability under 10 μm for reliable automated positioning.

Can you assist with installation and integration of the XY translation stage?

Yes, we provide technical support for the installation and integration of our XY translation stages. Our team assists with optimal setup to ensure smooth operation and precise control for your automated measurement or microscope applications.

What is the load capacity for different models of the LDTDP-JG Series?

Load capacity depends on the model: 10 kg for LDTDP-50-JG-2, 50 kg for LDTDP-100-JG-2, and 60 kg for LDTDP-170-JG-2 stages. Our motorized XY stage manufacturer ensures each model meets specified load requirements for demanding scientific tasks.
