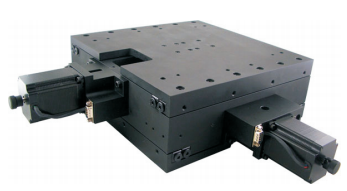

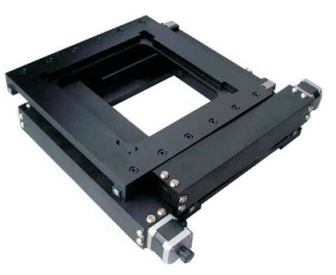

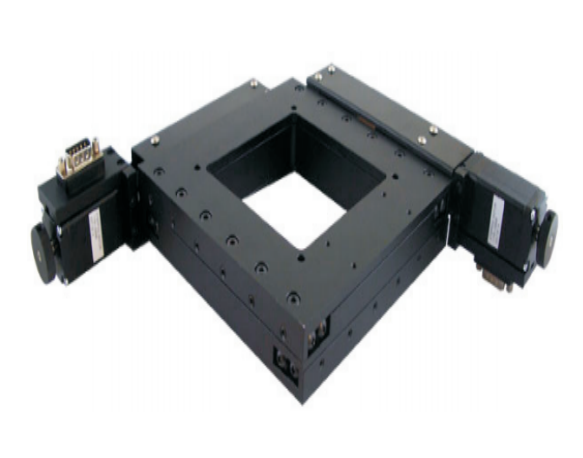

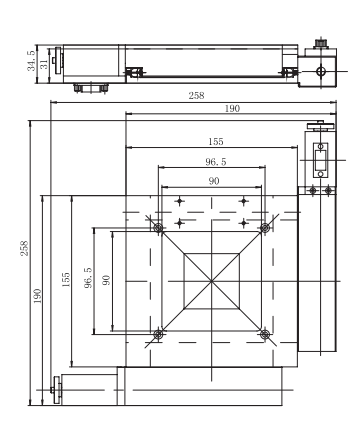

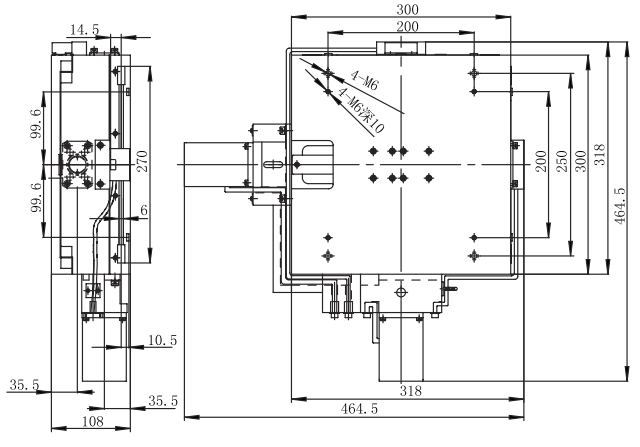

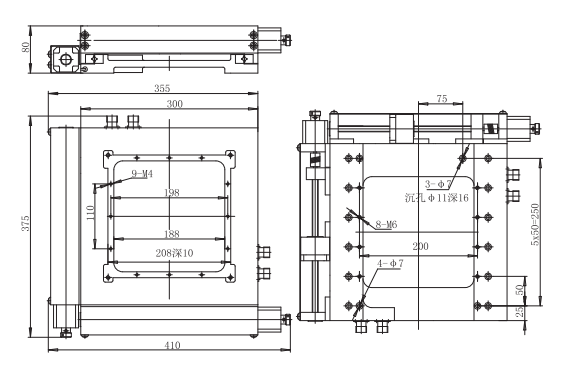

LDTDP- JG Series Motorized XY Integrated Positioning Stage

No.LDTDP- JG

Features:
High-precision motorized integrated translation stage cross ball guide
High precision, fast speed, large load, long travel, high degree of automation, widely used in scientific research, laser applications, and fully automatic measurement and testing.
The electric displacement system consists of three parts: displacement stage, drive motor and controller.

$1714.28

Description
Services & Guarantee

Product features:
High-quality precision-ground screw drive, small lead, the same subdivision number can achieve higher resolution.
The clever design of the back-in-the-air nut structure can minimize the gap of the ground screw pair.
The guide rail adopts a dovetail guide rail, which is comfortable to move and has a large load capacity.
Zero position and limit switches are installed at both ends to facilitate accurate positioning and protect the product.

Technical Specification:

Product Model	LDTDP-50-JG-2	LDTDP-100-JG-2	LDTDP-170-JG-2
Price	$1714.30	$2257.14	$2828.57
Travel range	50mm in X & Y Axis	100mm in X&Y Axis	170mm in X&Y Axis
Platform Dimension	150X150mm	300X300mm	300X300mm
Resolution	0.625μm	2.5μm	2.5μm
Repeating Accuracy:	Less than 10μm	Less than 10μm	Less than 10μm
Motor	28BYGH(1.8°）	42BYGH(1.8°）	42BYGH(1.8°）
Guide Rail	Crossed Roller and V Shaped Guide raiLDT
Max Torque	0.1N.M	0.4N.M
Working Currency	0.35A	1.7A
Net Weight	3.2kg	8.3kg	10.03kg
Load Capacity	10kg	50kg	60kg
