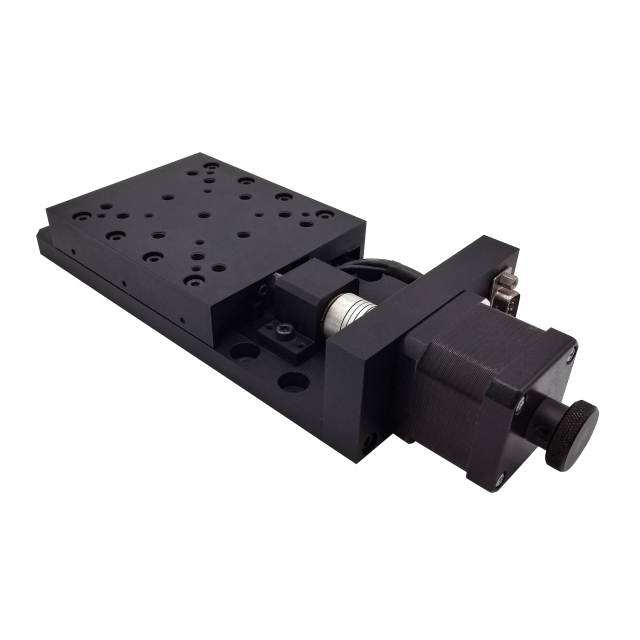

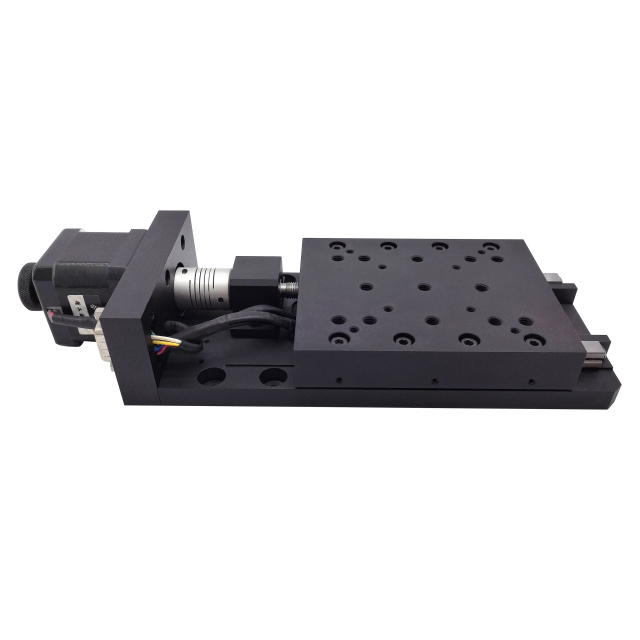

LDTDP-30JS Series Motorized Translation Stage Cross Ball Guide Series

Description
Services & Guarantee

PRODUCT FEATURES:
The product structure is small and thin, suitable for light load, low speed use, and scientific experiments.High-quality precision ground screw drive, small lead, the same subdivision number can achieve higher resolution.The clever design of the anti-backlash nut structure can minimize the gap of the ground screw pair.The guide rail adopts a cross roller guide rail, which is comfortable to move, has the function of lateral adjustment of the guide rail preload and anti-backlash, and can be used in multiple combinations.Zero position and limit switches are installed at both ends to facilitate accurate positioning and protect the product.
TECHNICAL SPECIFICATIONS:

Product Model	LDTDP-30JS	LDTDP-50JS	LDTDP-100JS
Travel range	30mm	50mm	100mm

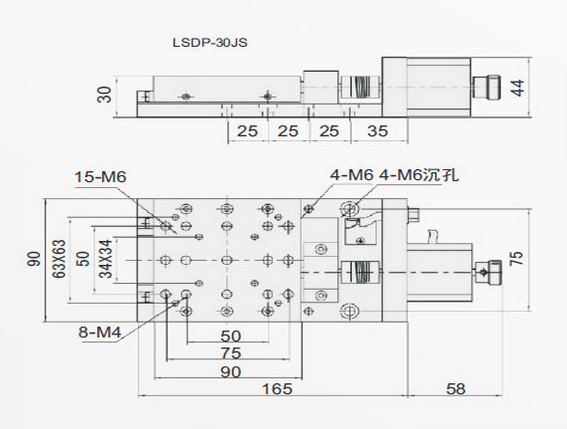

Platform Dimension	90X90mm	90X110mm	90X185mm
Resolution	0.000625mm
Repeating Accuracy	Less than 0.005mm
Motor	42 Stepper Motor(1.8°）
Guide Rail	Crossed Roller and V Shaped Guide rails
Max Torque	0.4N.M
Working Currency	1.7A
Net Weight	1.25kg
Load Capacity	5kg	10kg	20kg
