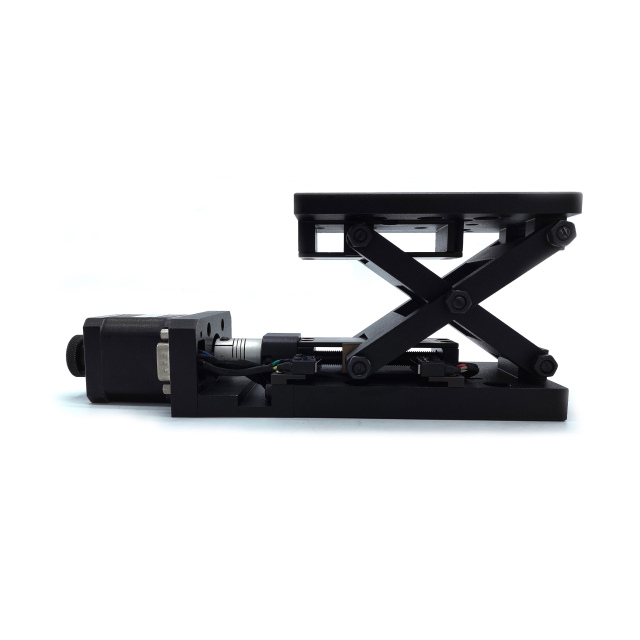

LDTDS-50JS Motorized lifting platform Scissor lift structure

No.LDTDS-50JS

The products provides small angle rotation adjustment, adopts finely ground adjustable dovetail guide rail, high precision, large load.Can be customized according to customer needs。

$257.14

Get The Latest Quote

Description
Services & Guarantee

PRODUCT FEATURES:
This series of products provides small angle rotation adjustment, adopts finely ground adjustable dovetail guide rail, high precision, large load, worm gear drive, comfortable movement, precision and reliability, smooth table operation, small deflection and tilt, paired design, after superposition, the rotation center is the same point, can be orthogonal double axis concentric rotation adjustment. Handwheel locking, safe and reliable. The table is placed horizontally, with standard connection holes, and can be combined with other series of products to form a multi-dimensional adjustment frame.

TECHNICAL SPECIFICATIONS:

Product Model	LDTDS-50JS	LDTDS-90JS
Travel range	50mm in Z Axis	90mm in Z Axis
Platform Dimension	80X120mm	220X140mm
Repeating Accuracy:	0.02mm	0.02mm
Motor	42BYGH(1.8°）	42BYGH(1.8°）
Max Speed	5mm/Sec	5mm/Sec
Net Weight	1.3kg	4.7kg
Load Capacity	5kg	5kg
