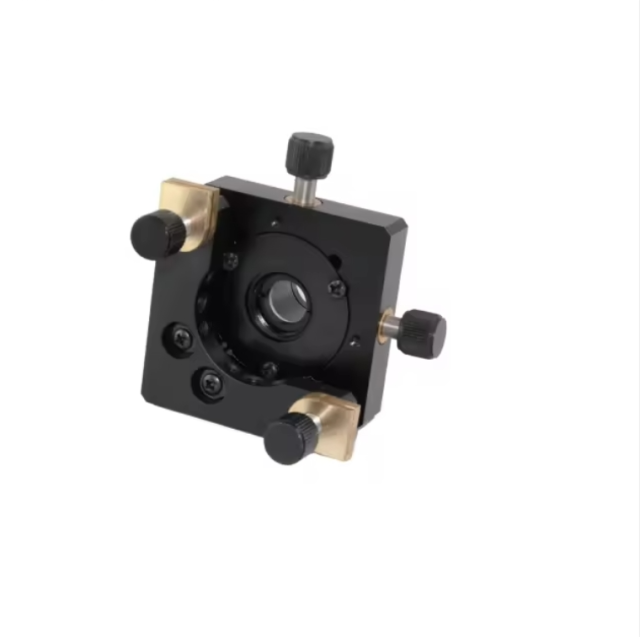

LDTBFxx-04-1YT Optical Adjustment Frame

No.LDTBFxx-04-1YT

M6x0.25 fine screw adjustment (with copper nut), disc spring reset, reset force adjustable, from zero to rigid;
The tube is equipped with a card lens, which can be fixed to the adjusting frame after the lens is installed;
Polytetrafluoroethylene gasket, protective lens;
Two mounting holes for different optical path directions.
Two-dimensional tilt adjustment range of 4°;
The lens can be translated in two dimensions;
Frames of other sizes can be customized.

$65.00

LDTBFxx-04-1YT:

LDTBF20-04-1YT

LDTBF25.4-04-1YT

Description
Services & Guarantee

PRODUCT INTRODUCTION
Optical adjustment frame series products, because of its ultra-fine resolution (adjustment screw pitch is only 0.25mm), so it has ultra-high precision and stability (high-performance imported disc spring reset), a wide range of applications (up to 100 kinds of specifications), beautiful appearance, cost-effective, and widely used in optical related scientific research, teaching, industrial products, especially in the field of laser application. It also highlights its unique performance.
KEY ATTRIBUTUES

Place of Origin	Jiangxi, China
Warranty	1 years
Customized support	OEM
Brand Name	customization
Model Number	LDTBFxx-04-1YT
Material	metal
Power	Micrometer Screw
Voltage	NO
Model	LDTBFxx-04-1YT
Product Name	High Precision Mirror Mount
MOQ	1pcs
certificate	CE ISO
Adjustment range	±4°

PURCHASE PARAMETERS

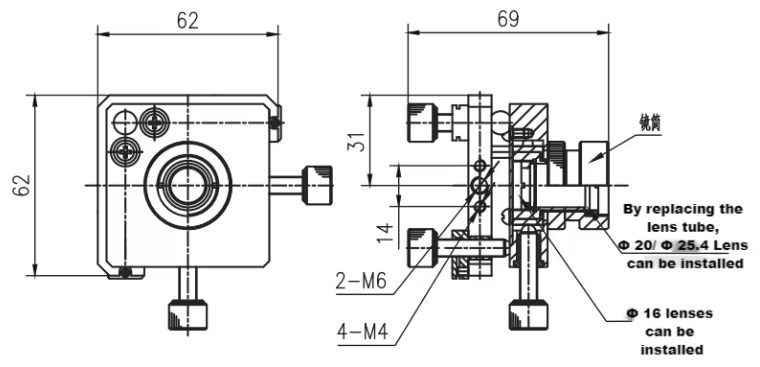

Model	LDTBF20-04-1YT	LDTBF25.4-04-1YT
Clamping lens diameter	φ16/φ20	φ16/φ25.4
Translation adjustment range	±2mm	±2mm
Self weight(kg)	0.24	0.24

PACKING AND DELIVERY

Selling Units:	Single item
Single package size:	5X5X3 cm

Single gross weight:

0.500 kg

LEAD TIME

Quantity (pieces)	1 - 500	> 500
Lead time (days)	43	To be negotiated

SAMPLES

Maximum order quantity: 1 piece

Sample price:

$65.00/piece
