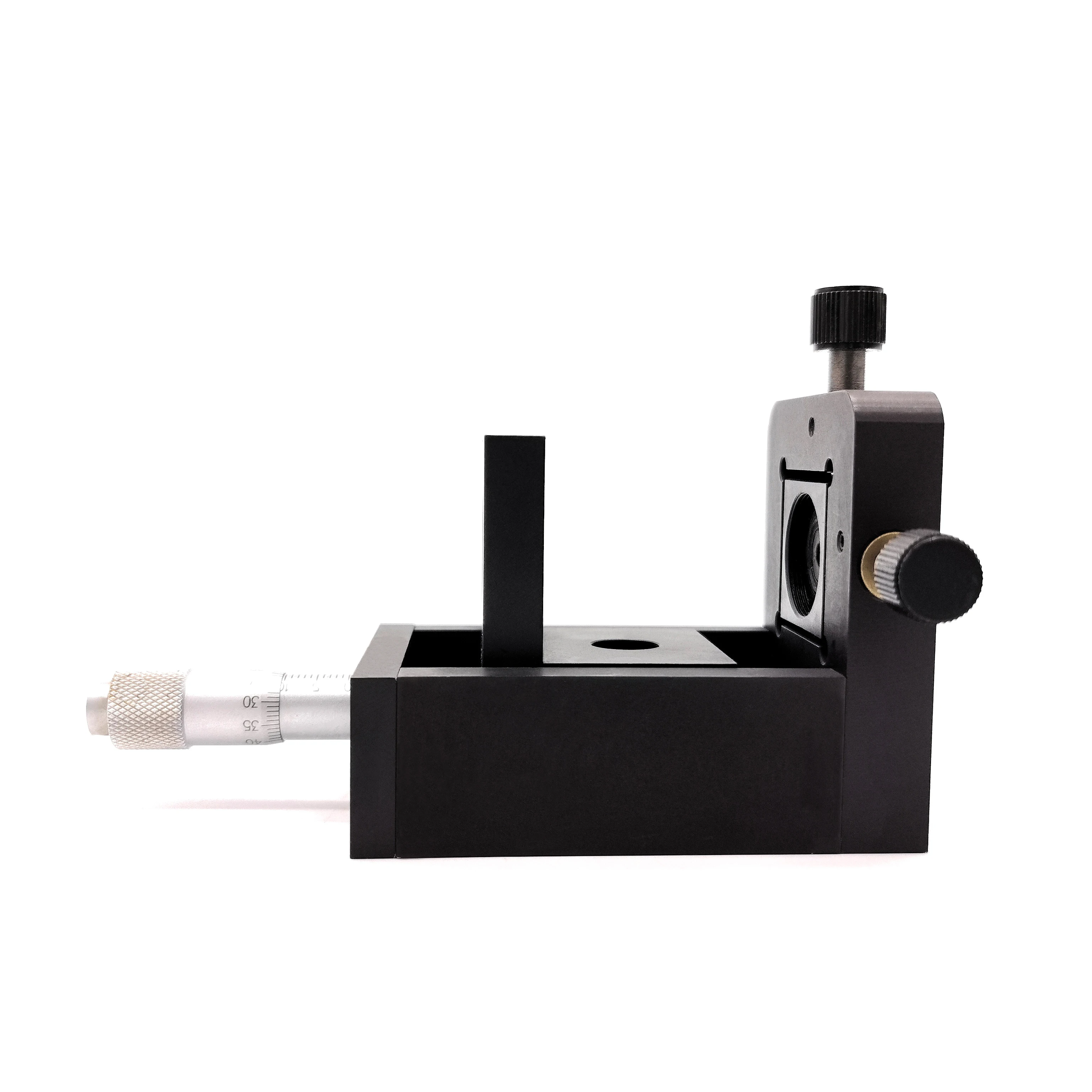

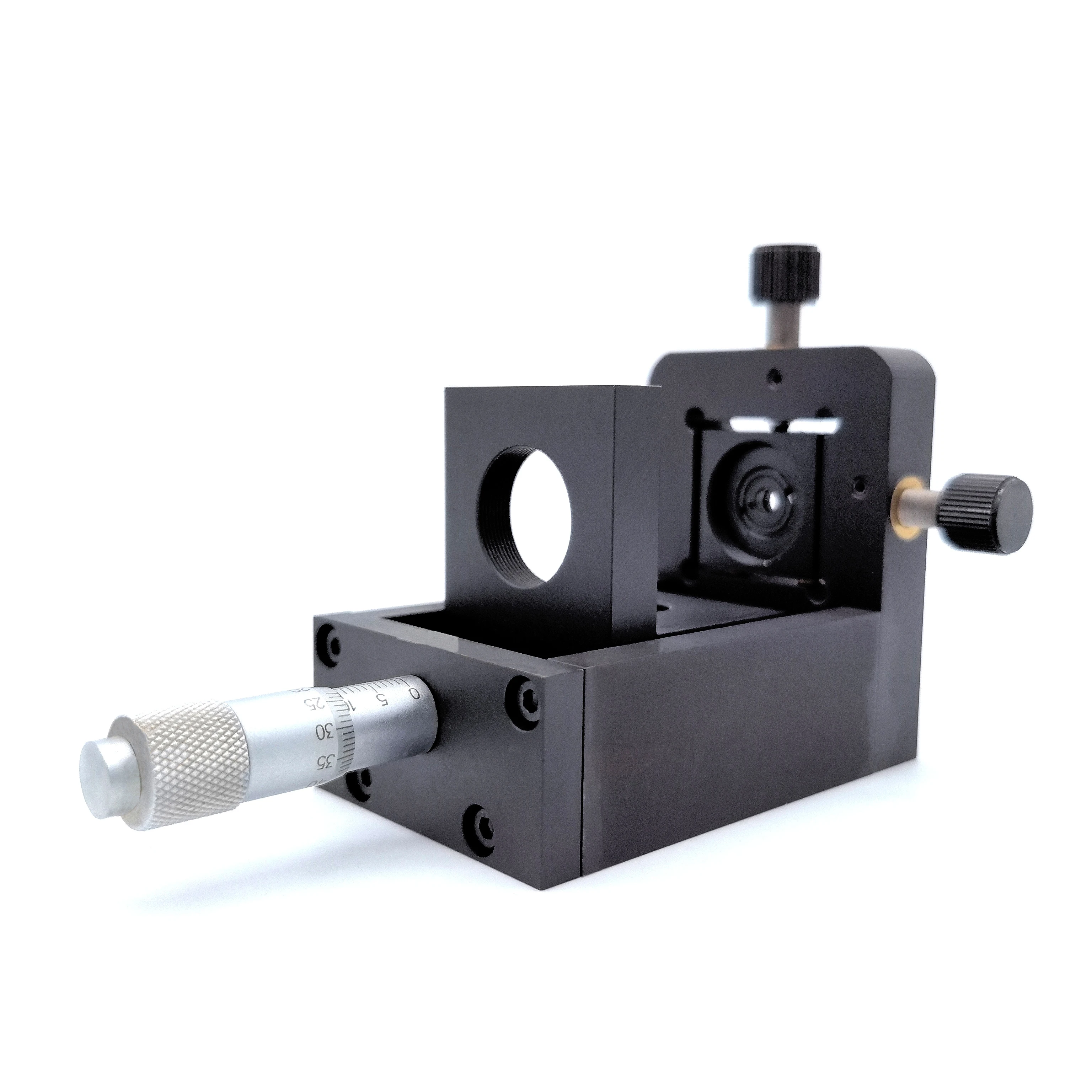

LDTLB1 Series Optical Spatial Filters with High Precision
No.LDTLB1
Equipped with standard microscope objective holder and pinhole holder. The microscope objective lens holder is adjusted with a micrometer head, which can continuously and quantitatively adjust the distance between the objective lens and the pinhole. The guide rail adopts a precision linear ball guide pair, which has stable motion and high accuracy. The pinhole seat can be precisely adjusted in two dimensions through two M6x0.25 fine tooth screws.
