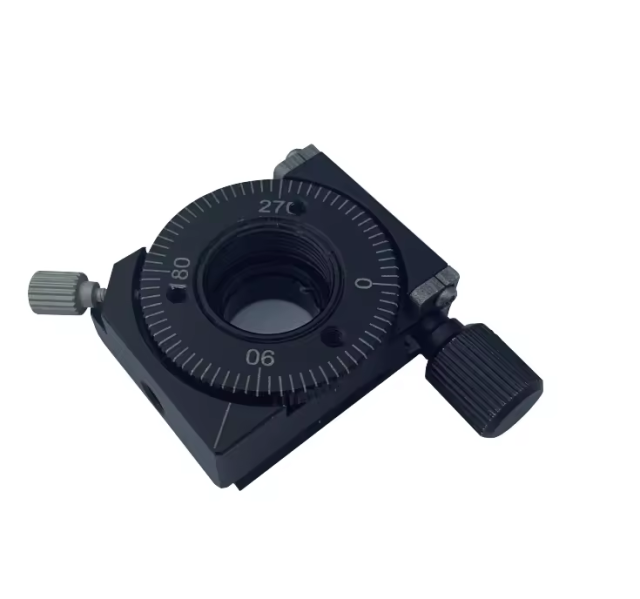

LDTSH-29WS Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 29mm Load Capacity 5kg

No.LDTSH-29WS
Worm Gear  Manual Rotary Table Product Features:
  • The table can be scribed 360 degrees for easy reading.
  • Precision shaft system design, adjustable shaft system clearance, good stability.
  • Precision machining worm gear transmission, large reduction ratio, high precision.
  • Elimination of air return structure to ensure that the worm gear fully engaged, reducing the table movement air return.
  • The upper and lower parts are equipped with connection holes of standard hole spacing, which is convenient to connect with other displacement tables to form a multi-dimensional mobile table.






$86.00
Get The Latest Quote
  • LDTSH-29WS Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 29mm Load Capacity 5kg
  • LDTSH-29WS Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 29mm Load Capacity 5kg
  • Description
  • Services & Guarantee

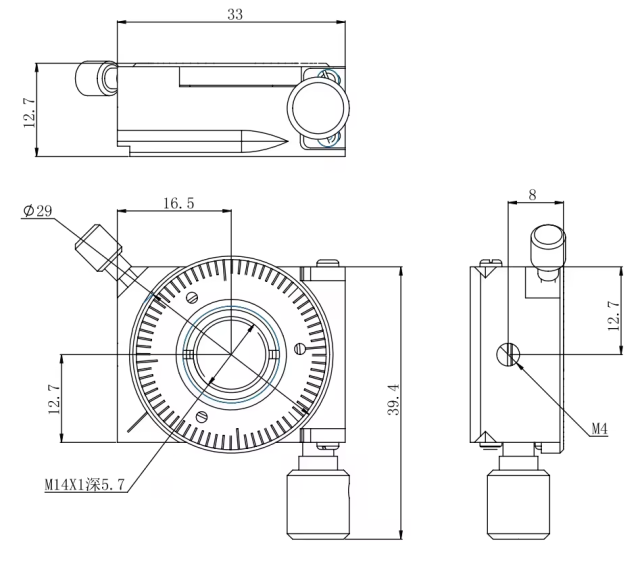

TECHNICAL SPECIFICATIONS:

Model

LDTSH-29WS

Platform Size

Φ29mm

Coarse Adjustment

360°

Driving Mode

Worm Gear

Center Aperture

M14X1,hole with 0.5 inch lenses
Mini Scaling
 5°

Parallelism of Motion

30μm
Concentricity of Motion
 15μm

 Minimum Adjustment

3''
Net Weight

0.15kg

Load Capacity

5kg

APPLICATIONS:
Scientific research, laser application, fully automatic measurement and testing, industrial automation, etc.
