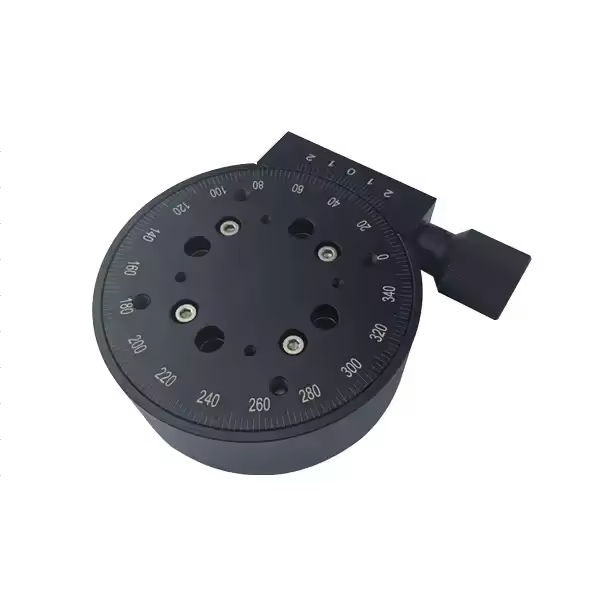

LDTSH-100WS Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 100mm Load Capacity 15kg

No.LDTSH-100WS
Worm Gear  Manual Rotary Table Product Features:
  • The table can be scribed 360 degrees for easy reading.
  • Precision shaft system design, adjustable shaft system clearance, good stability.
  • Precision machining worm gear transmission, large reduction ratio, high precision.
  • Elimination of air return structure to ensure that the worm gear fully engaged, reducing the table movement air return.
  • The upper and lower parts are equipped with connection holes of standard hole spacing, which is convenient to connect with other displacement tables to form a multi-dimensional mobile table.






$171.00
Get The Latest Quote
  • LDTSH-100WS Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 100mm Load Capacity 15kg
  • LDTSH-100WS Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 100mm Load Capacity 15kg
  • Description
  • Services & Guarantee

TECHNICAL SPECIFICATIONS:

Model

LDTSH-100WS

Platform Size

Φ100mm

Coarse Adjustment

360°

Driving Mode

Worm Gear

Mini Reading

12'
Mini Scaling
 2°

Parallelism of Motion

30μm
Concentricity of Motion
 15μm

 Minimum Adjustment

36''
Net Weight

0.8kg

Load Capacity

5kg

APPLICATIONS:
Scientific research, laser application, fully automatic measurement and testing, industrial automation, etc.
