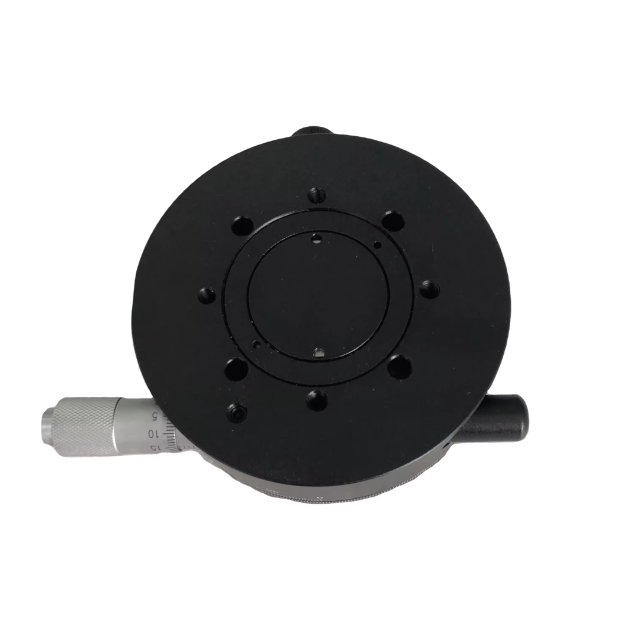

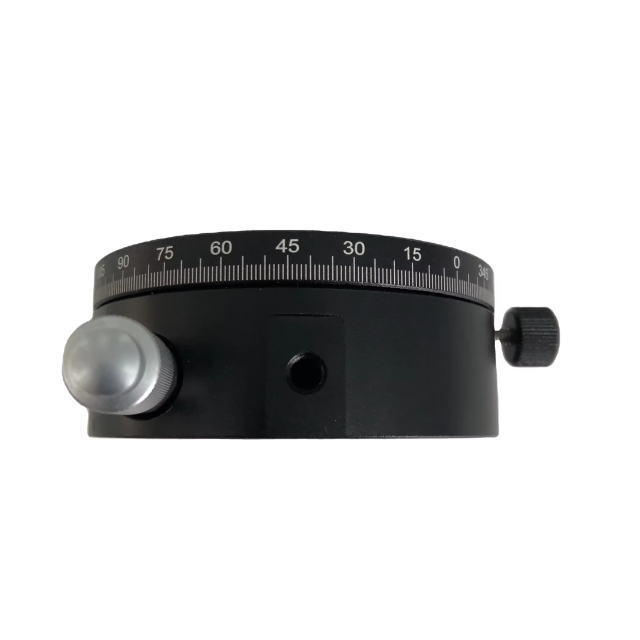

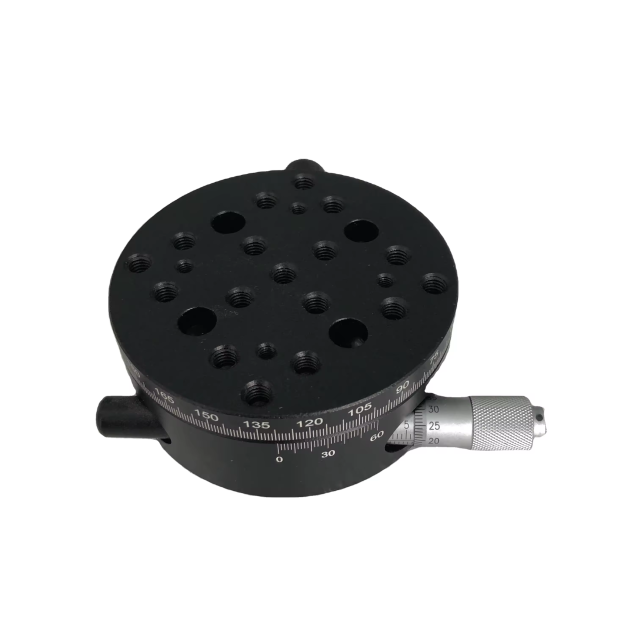

LDTSH-82TV-B Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 82mm Load Capacity 5kg

No.LDTSH-82TV-B
Product Features:
Manual rotary table series products are mainly used to adjust the rotation of objects around the central axis. The ultra-dense shaft system design and ultra-thin design can effectively reduce the overall height of the product when used in combination.


$107.00
Get The Latest Quote
  • LDTSH-82TV-B Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 82mm Load Capacity 5kg
  • LDTSH-82TV-B Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 82mm Load Capacity 5kg
  • LDTSH-82TV-B Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 82mm Load Capacity 5kg
  • LDTSH-82TV-B Customize OEM Precision Shaft Design Manual Rotary Positioning Stage Platform Dimension 82mm Load Capacity 5kg
  • Description
  • Services & Guarantee

TECHNICAL SPECIFICATIONS:

Model

LDTSH-82TV-B

Platform Size

Φ82mm

Coarse Adjustment

360°

Driving Mode

Micrometer screw

Fine Adjustment

 ±10°
Mini Scaling
 5'

Parallelism of Motion

50μm
Concentricity of Motion
 30μm

Load Capacity

5kg
Net Weight

0.5kg

APPLICATIONS:
Scientific research, laser application, fully automatic measurement and testing, industrial automation, etc.
