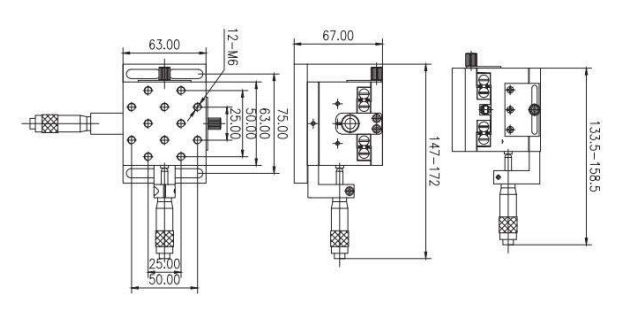

LDTSP-D2-X-25V Integrated Multi-axis Manual Translation Stage Table Size 63x63 mm Travel Range 25 mm

Functional Targeting for Precision Positioning Applications

The LDTSP-D2-X-25V Integrated Multi-axis Manual Translation Stage is engineered to facilitate accurate manual adjustments in multiple axes for precision-driven users such as optical engineers, research labs, and manufacturing technicians. Its compact 63x63 mm table size and two-dimensional travel capability afford spatial efficiency, allowing integration into constrained systems. This solution suits users requiring meticulous spatial control with micrometer-level correction, enhancing workflows where manual yet high-precision linear stage positioning is critical. As a product from a trusted linear stage supplier, it supports operational flexibility with a left-right hand pair option for ergonomic configurations.

Technical Composition and Measurable Accuracy Metrics

This stage incorporates advanced elements like linear ball bearings, cross roller guides, dovetail pairs, and finely ground steel rods to ensure structural rigidity and axis parallelism. The micrometer head drive combined with a spring reset mechanism eliminates backlash effectively, resulting in minimum adjustment increments as low as 2 µm and positioning precision around 5 µm. The travel range extends to 25 mm per axis, supporting loads up to 5 kg. Straightness and runout parameters are maintained within tight tolerances, underscoring its status as a high precision linear stage engineered for consistency and repeatability critical in precision assembly or scientific instrumentation.

Real-World Integration and Industry Application Value

The LDTSP-D2-X-25V excels in environments demanding precise manual control such as optical component alignment, microscopy stage adjustment, laser system calibration, and prototype fabrication. It supports workflows in research labs, semiconductor R&D, and photonics manufacturing where reliable spatial translation directly influences output quality and repeatability. Offered by a specialized motorized linear stage manufacturer known for vibration isolation and optoelectronic solutions enhances its system compatibility credentials. This capability enriches integration into advanced test benches and optical platforms, delivering measurable improvements in calibration accuracy and operational stability.

Structural and Design Excellence Supporting Multi-axis Positioning

The stage’s design integrates multiple precision guide systems—including linear ball bearings, cross roller guides, and dovetail pairs—ensuring exceptional mechanical stability and axis alignment. The compact platform size facilitates installation in spatially restricted setups while the spring reset micrometer mechanism eliminates operational backlash, improving repeatability. This structural composition is characteristic of a reliable precision linear stage tailored to provide linear motion with minimized mechanical error. Furthermore, modular design options including left and right hand configurations enhance adaptability, supporting varied system integration requirements for end users sourcing from an established linear stage supplier.

Performance Reliability and Usability in Precision Manual Control

User operation benefits from smooth, backlash-free micrometer-driven movement allowing intuitive, fine-tuned manual displacement. The device offers high resolution (down to 2 µm adjustment steps) and consistent positioning accuracy, improving throughput in setups requiring exact spatial manipulation. The robust load capacity of 5 kg accommodates diverse instruments and samples without compromising precision. This product inherently improves user confidence in manual linear stage adjustments and maintenance of system calibration integrity. The design delivers practical performance facilitating optimized workflows in research or manufacturing, embodying qualities expected from a leading motorized linear stage manufacturer offering high-precision solutions.

Use Scenarios

Precision Optical Component Alignment in Laboratory Environments

In advanced optical laboratories, the LDTSP-D2-X-25V serves to manually adjust spatial positioning of lenses, mirrors, and sensors requiring meticulous alignment. Within these settings, precise manual control combined with minimal backlash ensures repeatable positioning critical for beam path calibration and signal optimization. Its compact footprint integrates easily with existing optical benches or vibration isolation platforms provided by specialized motorized linear stage suppliers. This stage enhances experiment reliability by maintaining strict geometric tolerances and enabling ergonomic operation in setups with limited space, directly supporting precision laboratory workflows.

Manual Multi-axis Positioning in Photonics Manufacturing and R&D

Photonics manufacturing environments benefit from this stage’s capacity for fine manual translation during assembly or calibration of optoelectronic components. The product facilitates accurate sample placement, sensor alignment, and prototype testing requiring high positional fidelity. With tightly specified straightness and perpendicularity parameters, it complies with demanding production standards and system integration requirements, typical of solutions sourced from a reputable precision linear stage supplier. The platform’s ability to provide two-axis movement in a compact form improves process versatility, enabling repeatable adjustments that enhance overall manufacturing precision and product consistency.

FAQ

What is the load capacity of the LDTSP-D2-X-25V integrated multi-axis manual translation stage?

Our precision linear stage supports a maximum load of 5 kg, suitable for various optical and experimental instruments. Designed for stability and accuracy, this capacity allows us to ensure reliable operation in demanding precision environments.

Can the LDTSP-D2-X-25V be customized for specific travel ranges or sizes?

While the standard travel range is 25 mm with a 63x63 mm platform, we offer tailored solutions across our portfolio. Contact us to discuss your requirements so we can provide options aligned with your application needs from a trusted linear stage supplier.

How do you ensure the elimination of backlash in your precision linear stage?

We use a micrometer head drive combined with a spring reset mechanism to effectively minimize backlash. This design ensures smooth, highly accurate manual adjustments, critical for applications that require micrometer-level control in sensitive setups.

What support do you provide for installation and maintenance of your motorized linear stage?

We offer comprehensive technical support and detailed guidelines to assist with the setup and upkeep of your motorized linear stage or manual translation stage. Our engineers are ready to help optimize performance and extend product lifespan through expert advice.
