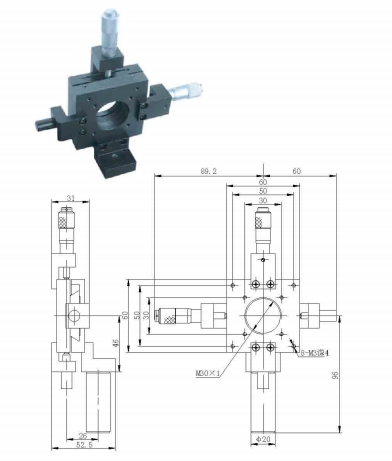

LDTSP-D2-W-13V Integrated Multi-axis Manual Translation Stage Table Size 60.5 x 39.5 mm Travel Range 13 mm

No.LDTSP-D2-W-13V

Product Features

Micrometer head drive, spring reset, quantitative reading, eliminate empty back, achieve higher adjustment accuracy

The guide form has precision linear ball and fine grinding steel rod, cross roller, dovetail pair and so on

Left and right hand pairs design, horizontal two axis micrometer head installed on the same horizontal surface, easy to operate

The integrity of the structure ensures the parallelism and perpendicularity of the two axes

Compact structure design, easy to use, in a small space to achieve two-axis translation adjustment product characteristics

$122.00

Get The Latest Quote

TECHNICAL SPECIFICATIONS:

Model	LDTSP-D2-W-13V
Platform Size	60x60 mm
Drive mode	Micrometer head
Drive position	Central drive
Travel range	13 mm
Minimum scale	10 um
Precision	5 um
Minimum adjustment	2 um
Load capacity	4 kg
Straightness	20 um
runout	60
Tilt	45
Two-dimensional perpendicularity	40 um
Table parallelism	80 um
Weight	0.4 kg
