The guide rail is a dovetail pair with large load-bearing capacity
The displacement adjustment adopts a precision-ground screw or a gear rack drive
The precision-ground screw is placed in the center of the translation stage for easy operation
The table and base are distributed with mounting holes with standard hole spacing for easy installation and combination
Can be combined with other series of translation stages to form a multi-dimensional adjustment frame
|

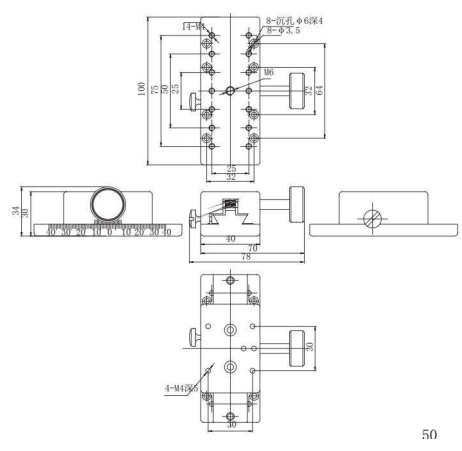

Model |
LDTSP-W-80L-01 |
|
Platform Size |
40x60 mm |
|
Drive mode |
Rack and pinion |
|
Drive position |
Central drive |
|
Travel range |
80 mm |
| Minimum adjustment | 2 um |
|
Load capacity |
5 kg |
|
Straightness |
30um |
|
Table parallelism |
30um |
|
Weight |
0.5kg |
