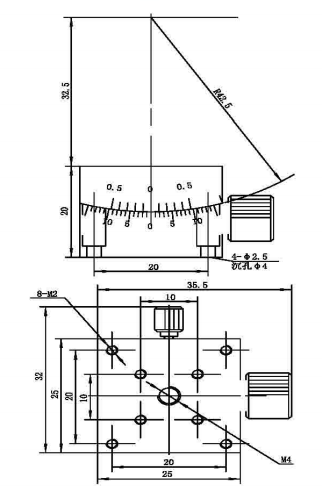

LDTSS-02-15 WW Manual Goniometer Stages Table Size 25x25 mm

No.LDTSS-02-15 WW

Product Features:
This series of products provide small Angle rotation adjustment, the use of fine grinding adjustable dovetail guide rail, high precision, large load, wheel pair drive, comfortable movement, precision and reliable, smooth operation of the table, small swing and tilt, pair design, superimposed rotation center for the same point, can be orthogonal biaxial concentric rotation adjustment. Hand wheel lock, safe and reliable. The table surface is placed horizontally, with standard connecting holes, and can be composed of multi-dimensional adjustment frame with other series of products.

$113.00

Get The Latest Quote

Description
Services & Guarantee

TECHNICAL SPECIFICATIONS:

Model	LSSJ-02-15WW	LSSJ-02-30WW
Platform Size	25x25 mm	25x25 mm
Angle Adjustment Range	±15°	±30°
Driving Mode	worm gear	worm gear
Guide Rail	Dove Tail	Dove Tail
Mini Scaling	1°	2°
Axis Center Height	32.5 mm	12.5 um
Load Capacity	2kg	2kg
Net Weight	0.21kg	0.22kg
