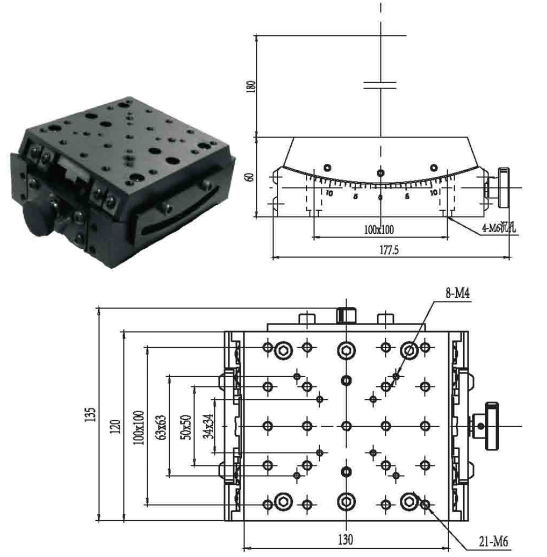

LDTSS-03-10 WW Manual Goniometer Stages Table Size 120x130 mm

No.LDTSS-03-10 WW
Product Features:
This series of products provide small Angle rotation adjustment, the use of fine grinding adjustable dovetail guide rail, high precision, large load, wheel pair drive, comfortable movement, precision and reliable, smooth operation of the table, small swing and tilt, pair design, superimposed rotation center for the same point, can be orthogonal biaxial concentric rotation adjustment. Hand wheel lock, safe and reliable. The table surface is placed horizontally, with standard connecting holes, and can be composed of multi-dimensional adjustment frame with other series of products.
$1000.00
  • LDTSS-03-10 WW Manual Goniometer Stages  Table Size  120x130 mm
  • LDTSS-03-10 WW Manual Goniometer Stages  Table Size  120x130 mm
  • Description
  • Services & Guarantee
TECHNICAL SPECIFICATIONS:

Model

LDTSJ-03-10WW

LDTSJ-03-15WW

Platform Size

120X130mm

120X130mm

Angle Adjustment Range

±15°

±30°

Driving Mode

worm gear

Round Roller Ball

Guide Rail

Round Roller Ball

Round Roller Ball

Mini Scaling

Axis Center Height

180mm

120mm

Load Capacity

40kg  40kg

Net Weight

3.5kg

3.5kg
