Product Description
Targeted Use and User Integration for Precision Workflows

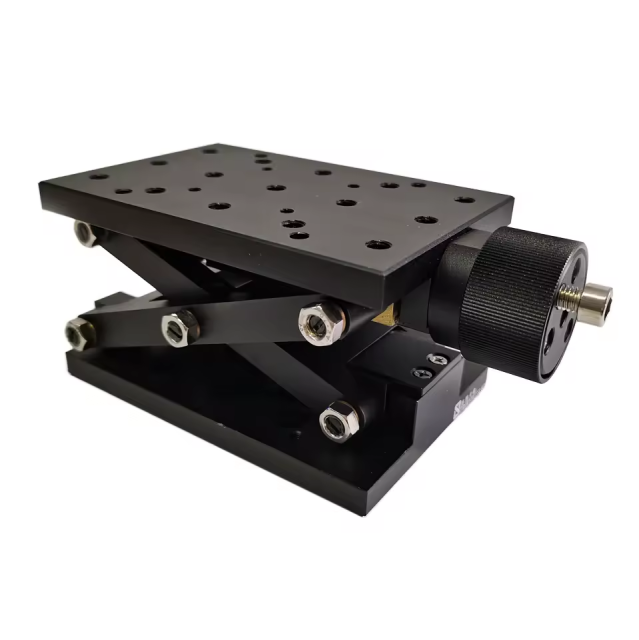

Engineered for professionals requiring accurate vertical positioning, the LDTSS-120JS Scissor-shaped Manual Vertical Translation Stage Lab Jack serves advanced laboratories and industrial settings. This device facilitates manual height adjustments essential in optical benches or modular optical breadboard tables. Ideal for engineers and technical users who demand repeatable vertical displacement control in experiments or precision assembly, it integrates seamlessly with a variety of optical components. The design supports compatibility with existing vibration isolation optical tables, contributing to enhanced stability and workflow efficiency in complex instrumentation environments.
Technical Specifications and Measurable Accuracy

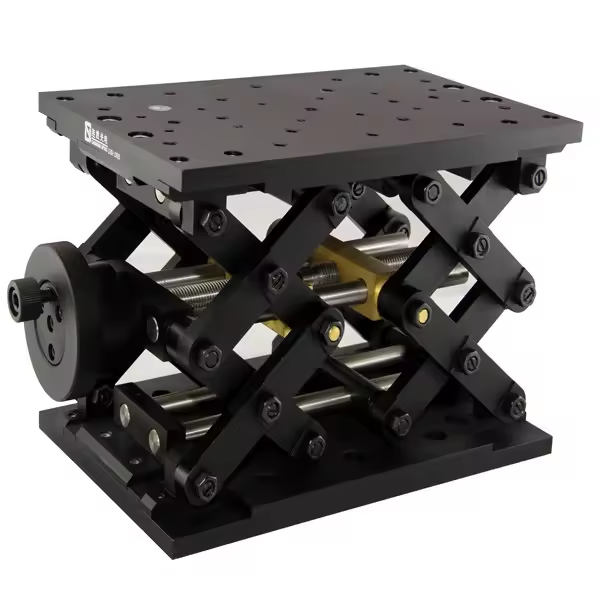

The LDTSS-120JS features a scissor-shaped lifting mechanism combined with a precision-ground screw drive and double-guide rail five-axis positioning system, allowing smooth, accurate vertical movement within a 120mm travel range. It supports up to 25 kg load capacity with position accuracy of 0.1 mm, meeting stringent technical requirements. Multiple mounting holes on both upper and lower surfaces provide versatile attachment options, offering compatibility with industry-standard spacing found in optical breadboard tables. These specifications support reliable and fine-tuned vertical adjustment crucial for high-precision tasks in sensitive environments where integration with vibration isolation optical tables is required.
Industry Applicability and Integration Value
This stage is well-suited for sectors such as photonics, laser technology, semiconductor manufacturing, and precision measurement. Used within optical breadboard tables and setups featuring vibration isolation optical tables, it enables controlled manual height adjustments critical for aligning equipment or supporting delicate instrumentation. The platform’s adaptability within larger optical bench assemblies enhances system modularity and operational stability. By ensuring repeatable positioning and integrating smoothly into existing configurations, the LDTSS-120JS provides tangible value for projects demanding consistent vertical maneuverability in demanding scientific or industrial contexts.
Product Advantages
Structural and System Integration Benefits
The LDTSS-120JS design incorporates a robust scissor-shaped manual lifting support mechanism complemented by a double-guide rail five-axis positioning system, enhancing both stability and control. Its compatibility with standardized hole spacing facilitates direct integration into optical breadboard tables and other modular equipment supplied by leading optical breadboard suppliers. As a solution from a recognized vibration isolation optical table manufacturer, it supports seamless assembly with vibration isolation optical tables, optimizing workflow consistency. The well-distributed mounting holes on multiple surfaces allow flexible equipment attachment, promoting efficient customization and system scalability within precision optical platforms.
Performance Efficiency and User-Centered Design
Operation of this lab jack is enhanced by a smooth, precision-ground screw drive and a locking handwheel that ensures stable and repeatable positioning. Its manual control mechanism provides exact vertical translation with minimal backlash, supporting user demands for fine adjustment in challenging environments. Lightweight yet capable of sustaining up to 25 kg loads, it enables versatile application without compromising ease of use. When integrated with vibration isolation optical tables or optical breadboard tables, users gain measurable improvements in alignment accuracy and position repeatability, directly impacting experimental reliability and production quality.
Use Scenarios
Optical Research and Laboratory Precision Environments
In research laboratories focused on photonics, laser manipulation, or optical alignment, the LDTSS-120JS is integral for precise vertical positioning tasks. It supports manual height adjustments within setups that utilize vibration isolation optical tables or optical breadboard tables to reduce environmental vibrations. Its stable platform and accurate travel range allow for delicate tuning of experimental configurations, ensuring compliance with strict measurement protocols. Integration with optical breadboard suppliers’ modular systems facilitates straightforward assembly and enhances experiment repeatability, critical for high-precision research workflows where controlled vertical displacement is fundamental.
Industrial Automation and Semiconductor Equipment Calibration
Within semiconductor manufacturing or industrial automation lines, this manual translation stage functions as a fine adjustment component for sensors, measurement devices, or alignment fixtures installed on optical breadboard tables. Combined with vibration isolation optical tables, it minimizes vibration interference, ensuring consistent calibration and positioning accuracy. Its robust structural design and compatibility with modular optical benches allow it to be incorporated into automated systems requiring manual override or fine-tuning positions. This enhances process reliability and maintains stringent tolerance standards, supporting high throughput and precise equipment adjustment in demanding production environments.
TECHNICAL SPECIFICATIONS:
