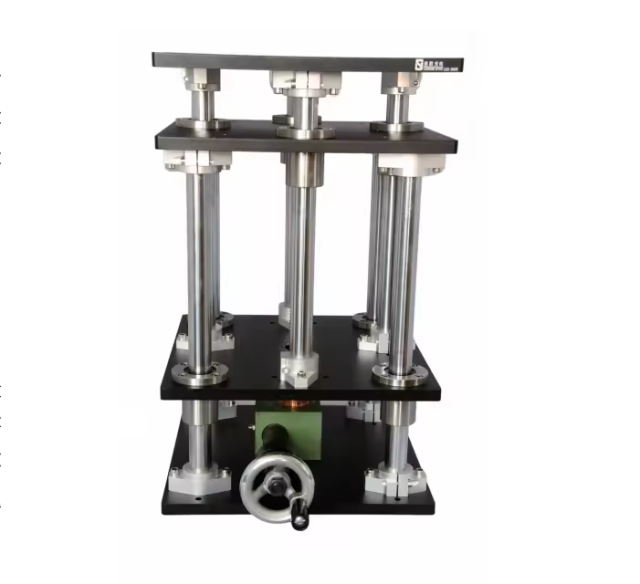

LDTSS-XW-A Series Customize OEM Manual Hand Screw Vertical Lab Jack Positioning Stage Platform Size 400x400mm Travel Range 100-400mm

No.LDTSS-XW-A

Product Features
Used for lifting and adjusting with large stroke, variable quantity and large load

Adopting shear-shaped lifting support, precision-ground screw drive, double-guide rail five-axis positioning mechanism, it ensures absolutely smooth, comfortable, high-precision and large-load movement.
Multiple holes on the upper and lower surfaces are highly practical and can be used as mounting surfaces.
Equipped with locking handwheel, safe and reliable.
Both the base and the table have connection holes with standard hole spacing, which is convenient for combination with other series products.

$2324.00

Get The Latest Quote

TECHNICAL SPECIFICATIONS:

Model	LDTSS-XW-100A	LDTSS-XW-200A	LDTSS-XW-300A	LDTSS-XW-400A
Price	2324 USD	2400 USD	2686 USD	2786 USD
Platform Size	400x400 mm	400x400 mm	400x400 mm	400x400 mm

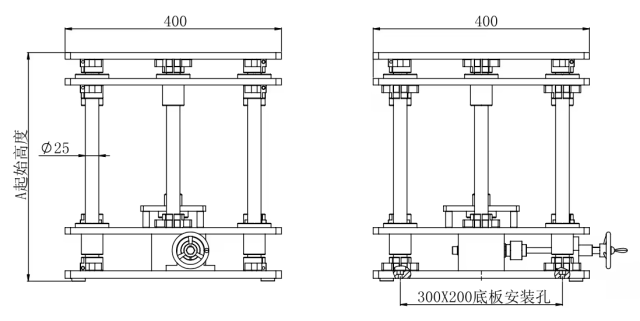

A Original Height	322mm	422mm	522mm	622mm
Drive mode	Precision Elevator+T Guide screw	Precision Elevator+T Guide screw	Precision Elevator+T Guide screw	Precision Elevator+T Guide screw
Parallelism of Countertop	50μm	100μm	150μm	200μm
Drive position	Central drive	Central drive	Central drive	Central drive
Travel range	100 mm	200 mm	300 mm	400 mm
Minimum adjustment	1 μm	1 μm	1μm	1 μm
Load capacity	100 kg	100 kg	100 kg	100 kg
Straightness	50 μm	70μm	100μm	150μm
Weight	38kg	41kg	44kg	47kg

APPLICATIONS:
Scientific research, laser application, fully automatic measurement and testing, industrial automation, etc.
