Product Description
Precision Vertical Adjustment for Laboratory Applications

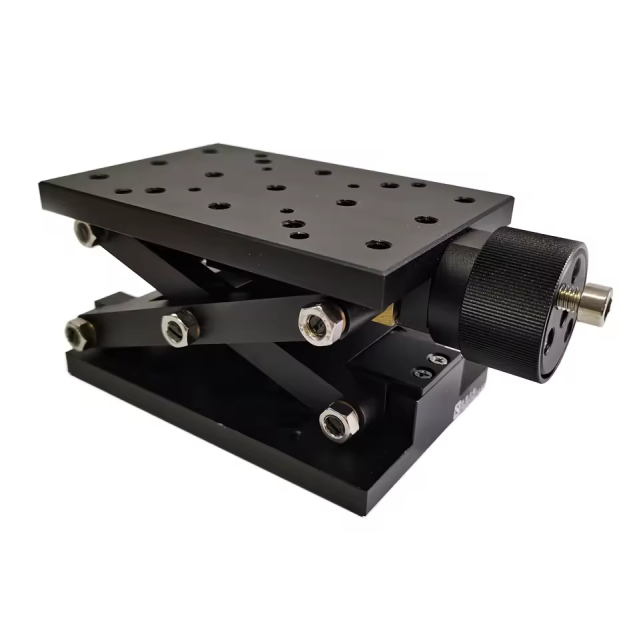

The LDTSS-60JS manual vertical translation stage stage is designed specifically for scientific and industrial users requiring robust and accurate vertical displacement within a 60mm travel range. This model supports engineers and researchers aiming to enhance experimental setups, particularly those involving integration with vibration isolation optical table or optical breadboard supplier systems. The unit’s compact platform and multi-mounting holes enable seamless mounting on various platforms such as an optical breadboard table, ensuring adaptability across demanding precision workflows in physics, optics, and semiconductor contexts. Users benefit from manual control combined with consistent positioning repeatability, making it an essential component for precision labs.
Advanced Mechanical Design with High Accuracy Specifications
Featuring a shear-shaped lifting support and precision-ground screw drive, the manual vertical translation stage delivers exceptional stability and smooth motion control. It supports a load capacity up to 20kg while maintaining a vertical positioning accuracy of 0.1mm, critical for applications mounted on a vibration isolation optical table. The double-guide rail five-axis positioning mechanism reduces lateral shift and guarantees stability during adjustment. A locking handwheel enhances safety, preventing unwanted movement during measurements. These technical specifications make the LDTSS-60JS compatible with various optical table systems and optical breadboard tables where high precision and reliable mechanical performance are non-negotiable requirements.
Versatile Integration for Optical and Industrial Environments
This vertical translation stage is widely utilized in environments requiring precise vertical positioning such as laser labs, semiconductor manufacturing facilities, and industrial automation processes. Its compatibility with an optical table and integration flexibility with an optical breadboard supplier’s platforms allow users to optimize their measurement stations or experimental apparatus. The LDTSS-60JS supports fine-tuning in metrology setups, sensor calibration, and laser experiments, where vibration isolation optical table systems demand stable mounting and positional accuracy. By enabling precision vertical displacement, this stage contributes directly to enhancing operational accuracy, yield improvement, and experimental repeatability in research and production settings.
Product Advantages
Innovative Structural and Modular Design for Seamless Integration
The LDTSS-60JS is designed with a compact and versatile platform suitable for integration with various optical table and optical breadboard table systems supplied by professional suppliers. The shear-shaped lifting support and double-guide rail five-axis system ensure structural stability and load support, optimized for use on a vibration isolation optical table environment. The multiple mounting holes on the unit’s surfaces facilitate modular arrangements and compatibility with surrounding instrumentation or stages. This design logic supports system scalability for complex experiments and enables effortless incorporation within customized optical platform assemblies, enhancing system-wide reliability for precision-demanding users.
Enhanced Performance and Operational Precision for End Users
Engineers and technicians benefit from the stage’s smooth manual adjustment mechanism with a locking handwheel that ensures high operational security and positional repeatability. Its fine 0.1mm accuracy and 20kg load capacity make the LDTSS-60JS an effective tool for tasks that require steady vertical movement on an optical table or optical breadboard supplier’s platform. The ergonomic design minimizes operator fatigue during manual adjustments, and the stable mechanical foundation reduces vibration transmission, complementing vibration isolation optical table setups. This emphasis on precision, usability, and safety translates into improved workflow efficiency and reduced calibration errors in sensitive optical and photonics applications.
Use Scenarios
Precision Height Adjustment in Advanced Optical Laboratories
In sophisticated optical labs, where environmental stability and micrometer-level positioning are crucial, the LDTSS-60JS vertical stage functions as an essential accessory integrated into vibration isolation optical table systems. Its role is to provide precise, smooth vertical displacement for optical components or sensors. The design’s compatibility with optical breadboard table configurations and precise mechanical control allows engineers to align critical optical paths without compromising stability. Its locking mechanism ensures that positions remain fixed during sensitive measurements, while the load capacity accommodates diverse apparatus. This integration supports workflows that demand repeatable and reliable positioning, enhancing experiment accuracy and reducing downtime in optical research facilities.
Supporting Industrial Automation and Semiconductor Manufacturing Processes
In semiconductor fabrication and metrology environments, precise vertical positioning devices such as the LDTSS-60JS are necessary for accurate equipment calibration and process control. Installed on various optical breadboard tables or directly on vibration isolation optical table setups, the stage supports vertical displacement of diagnostic instruments and process monitoring tools. Its reliable mechanical drive and fine positioning accuracy comply with strict industrial standards, ensuring stable operations under moderate loads. By incorporating this manual stage into modular system architectures, manufacturers benefit from enhanced process repeatability and device alignment precision critical for yield optimization and quality control in automated production lines.
TECHNICAL SPECIFICATIONS:
