LDTTOUCH controller is a comprehensive user requirements, and strive to operate simple and convenient, stable performance, strong control ability and the development of the third generation of control system, can control the movement of 4 axes at the same time, both can be operated by a single machine can also be connected with the upper computer software, simple operation, intuitive interface, strong operability. Users can set parameters on the touch screen as required. The software is equipped with secondary development interface, through which users can make personalized operation function according to specific requirements.

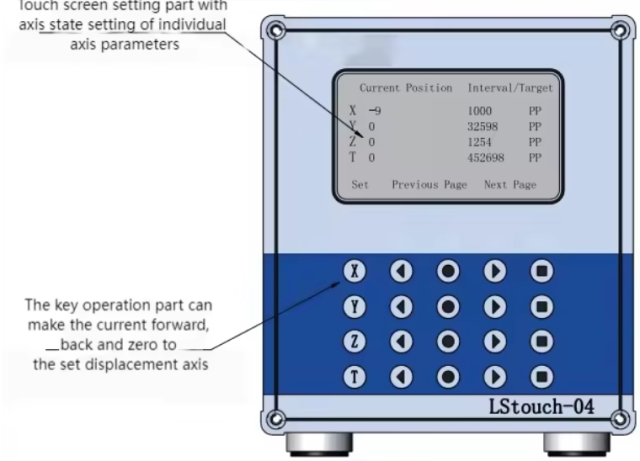

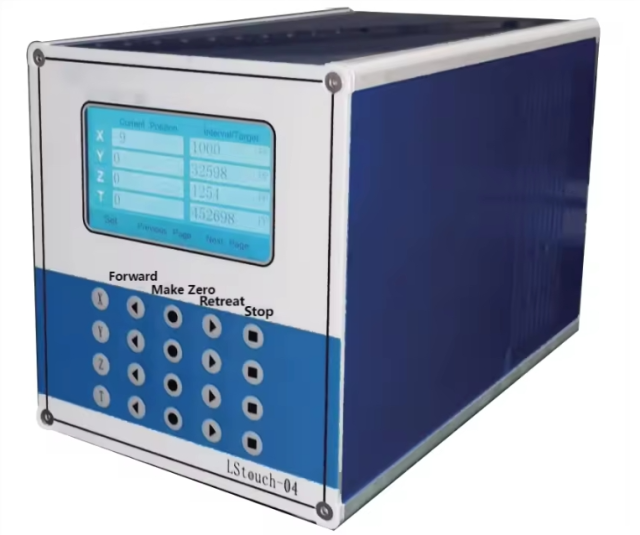

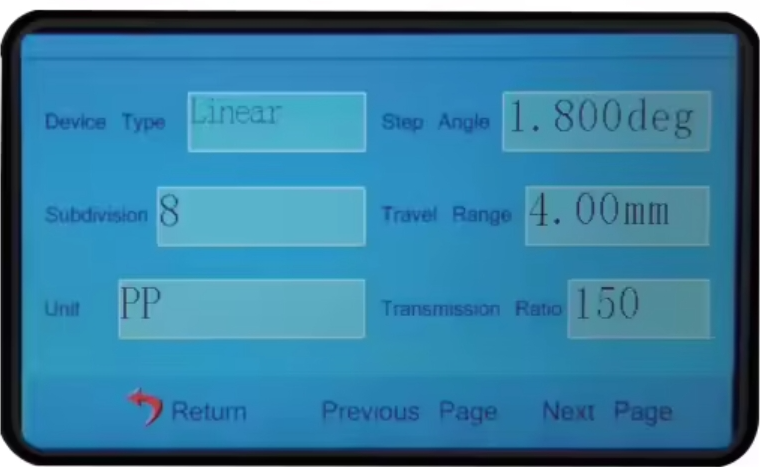

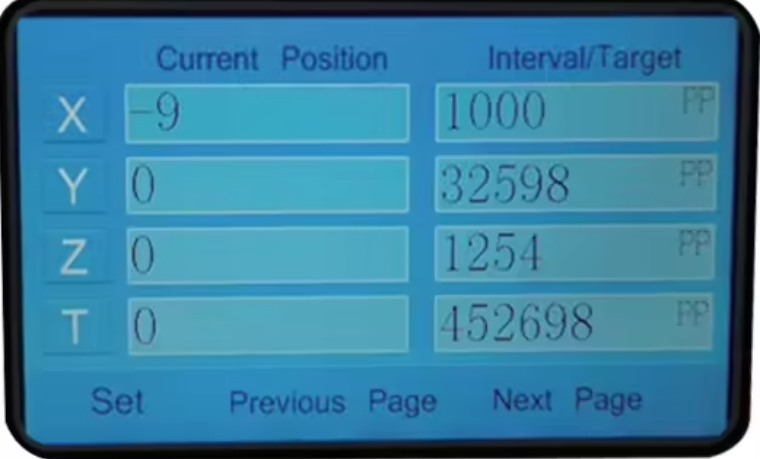

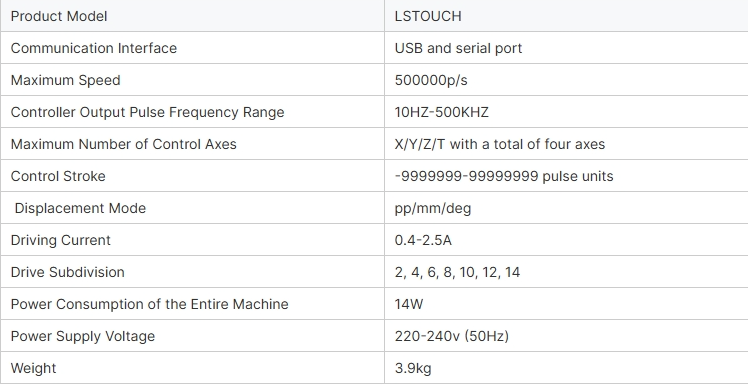

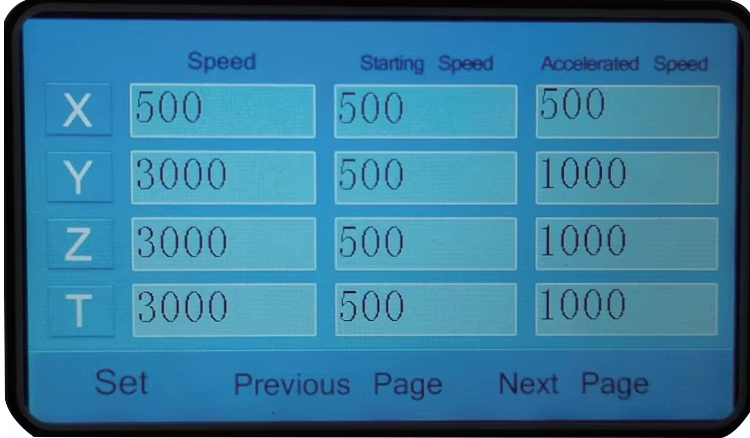

TECHNICAL INDEX Product Features ● Large control stroke. ● Absolute position, reference position display. ● Can perform forward, reverse, back to the origin operation. ● Normal speed, initial speed, acceleration can be arbitrarily set. ● Simple and clear operation keys, make the operation more concise. ● Suitable for fixed length, position, positioning and other purposes. ● Function keys can control the movement of each axis. ● Large LCD display, easy to set parameters. operation interface 1. Tap the display screen to display the following interface X, Y, Z, and T represent the four corresponding axes of motion. Current Position: The current position is in the counting position, which can be expressed as pulse (PP), millimeter (mm), or Angle (DEG). Interval/Target: Interval/ target Indicates the distance traveled from the beginning to the end. If it is the target, it indicates the final location. 2. Tap the touch screen "Set" to display the following interface Device Type: Indicates the mode of the Device, such as displacement table or rotary table. You can tap "Device Type". Table Select device mode. Step Angle: motor step Angle (the stepper motor provided by our company is 1.8°). Subdvision: Drive subdivision. Because the drive subdivision needs to be set manually, the subdivision entered in the table should correspond to it, and the factory fine score is set to 8 subdivision. Travel Range: lead screw lead, mainly used in displacement table, screen input lead should be consistent with the corresponding lead screw. Three driving units are set respectively: pulse (pp), millimeter (mm), Angle (Deg). Can be set according to specific requirements. Transmission ratio setting is mainly for electric turntable or electric Angle table, and different transmission ratios are set according to the specific equipment. 3. Tap "Next Page" to display the following interface X,Y,Z,T: represents the four axes respectively. Speed: Normal speed The speed of the motor after smooth movement. Starting Speed Indicates the speed at which the motor starts to run. Accelerated Speed: acceleration.
