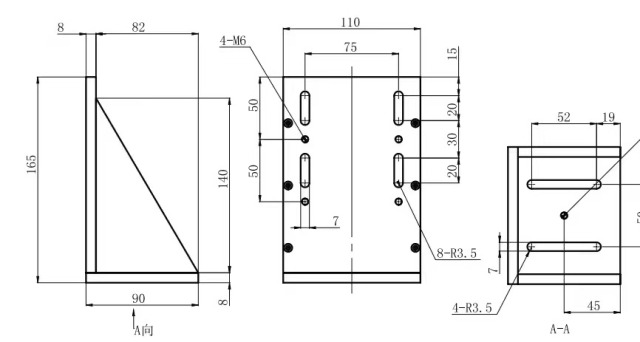

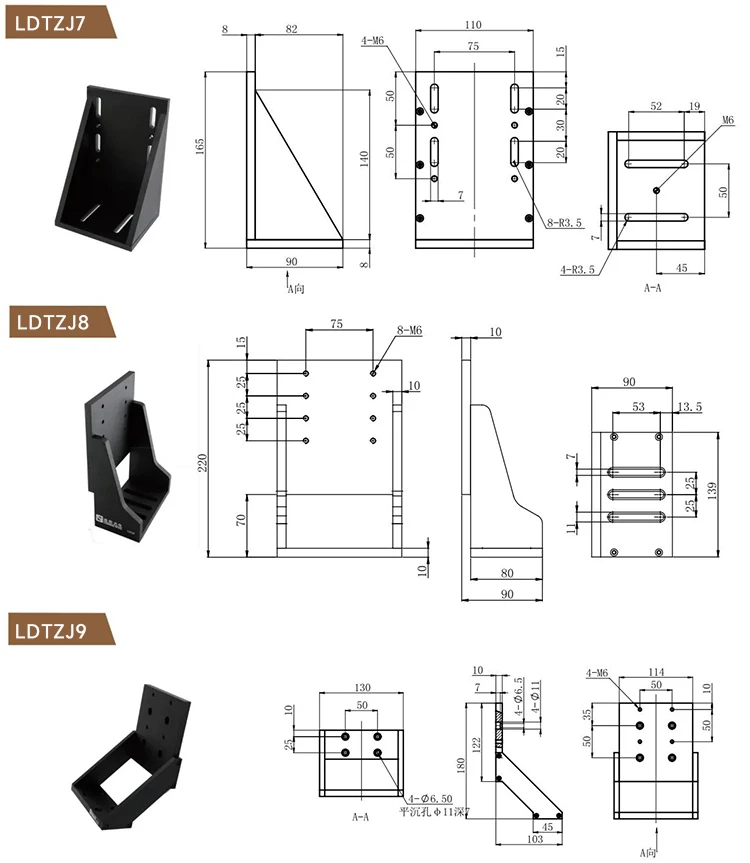

LDTZJ7 Right Angle Mounting Plate/Adapter with High Precision Customized OEM Support
No.LDTZJ7
It is used for combining the displacement table into a two-dimensional or three-dimensional orthogonal system, and other adjustment frames can also be orthogonally combined. The two orthogonal surfaces are precision machined to ensure verticality requirements, and multiple installation hole designs have strong universality. The displacement table can be converted to vertical use, replacing the lifting table or combined with a vertical translation table, providing a horizontal table for users to use. Different specifications of translation tables can be used in combination with different specifications of right angle fixing blocks.
Product Features: - For assembly one single axis positioning stages to XY, XYZ and other multiple -Axis stages - All aluminum material with black anodized surface treatment, with standard mounting holes
