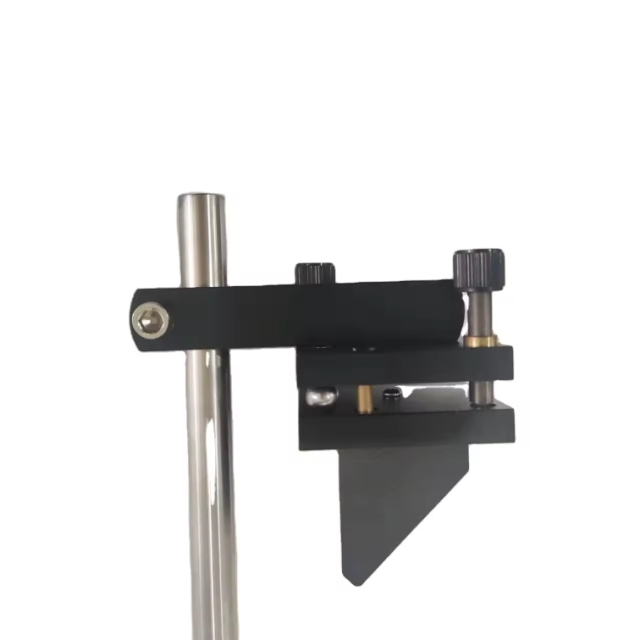

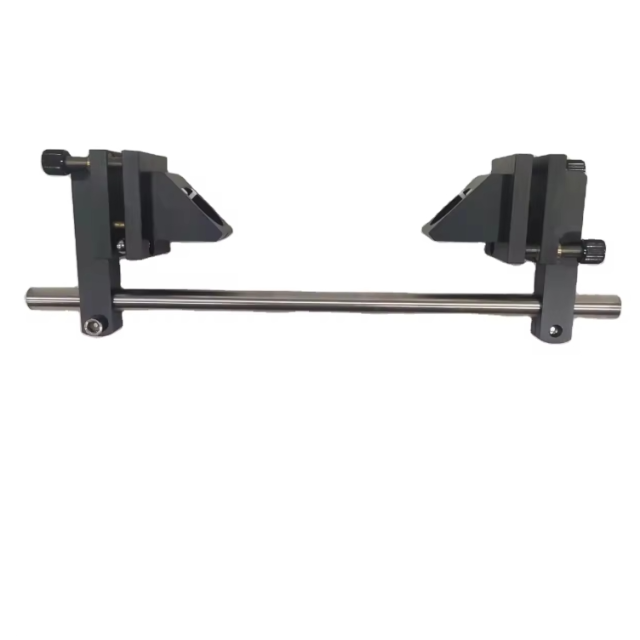

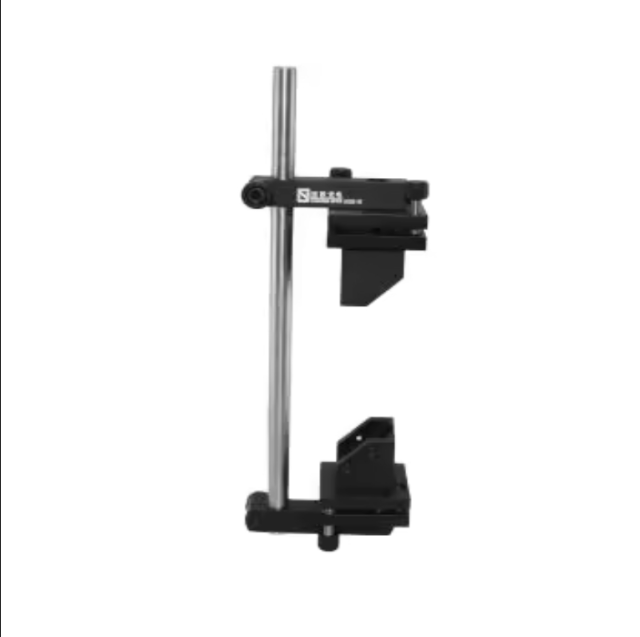

LDTZZ2-25 Beam Steering Mount series
No.LDTZZ2-25
- The beam deflector can change the direction or height of the beam, and can hold a variety of diameter mirrors and prisms;
- Adapt to different diameters of the beam, the mirror seat can be rotated 360°, and can be adjusted ±4° tilt;
- The adjusting mechanism is driven by M6x0.25 ultra-fine screw, and the disc spring is reset, which has high precision and excellent stability.
- Bracket rod adopts standard diameter stainless steel, easy installation, beautiful application;
- Prisms with 25mm card width can be installed
$68.00
LDTZZ1-xx:
LDTZZ1-20
LDTZZ1-25
LDTZZ1-30
