Product Description

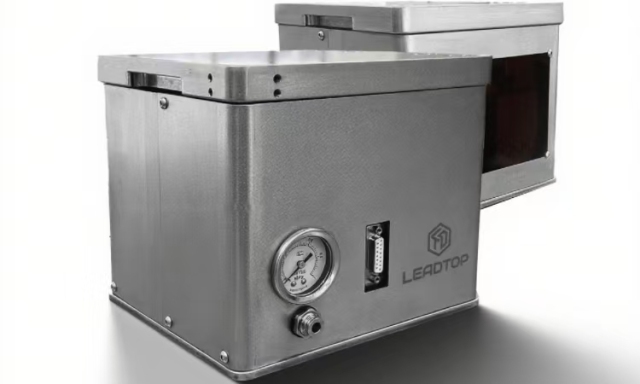

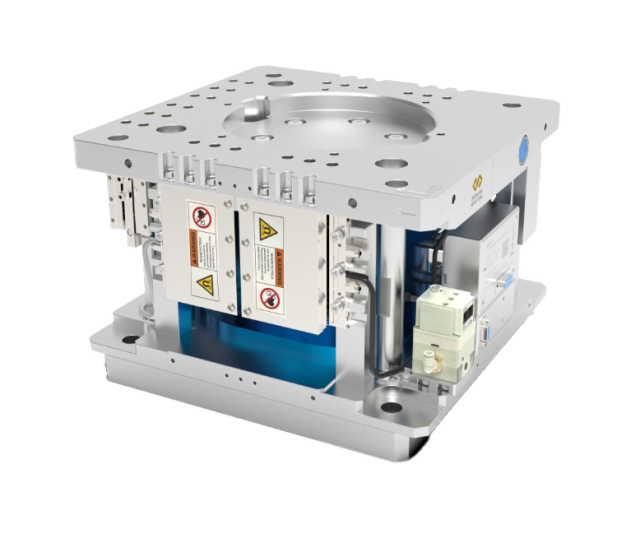

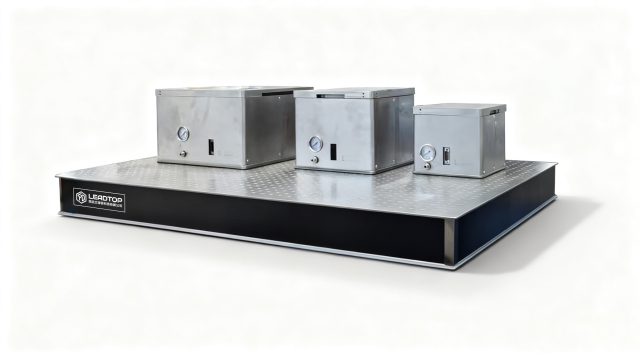

The LHV series of active vibration isolation modules adopt the design of vertical control by air springs combined with horizontal independent decoupling by single pendulums. Integrated with the precise active control system in six degrees of freedom, it realizes omnidirectional vibration energy isolation. It is suitable for ultra-precision equipment (with nanometer-level precision) and extreme working conditions, ensuring ultra-high structural stability and anti-interference ability.
Application Fields
Acoustic Laboratories: Vibration isolation for anechoic chamber foundations (blocking the impact of ground vibrations on the uniformity of sound fields).
Medical Imaging Equipment: MRI (Magnetic Resonance Imaging) scanners, CT (Computed Tomography) scanners (eliminating the interference of mechanical vibrations on imaging accuracy).
Optical Precision Manufacturing: Laser interferometers, lithography machines, optical coating equipment (ensuring the processing of optical components at the sub-micron level).
New Energy Equipment: Lithium battery electrode coating machines, fuel cell bipolar plate imprinting equipment (suppressing material defects caused by production vibrations).
Precision Metrology and Inspection: Coordinate measuring machines, white light interferometers (ensuring the repeatability of nanometer-level measurements).
Quantum Scientific Research Devices: Atomic clocks, ultra-low temperature systems for quantum computers (isolating laboratory foundations and environmental vibrations).
Aerospace Testing: Inertial navigation calibration platforms, satellite payload micro-vibration suppression (meeting the requirements for ultra-quiet environments at the level of 10⁻⁶g).
|
Model / Parameter
|
LHV-D200
|
LHV-D260
|
LHV-D350
|
|---|---|---|---|
|
Dimensions (L×W×H, mm)
|
200×200×180
|
260×260×220
|
350×350×220
|
|
Load Capacity (kg)
|
250
|
900
|
1800
|
|
Rated Voltage (V)
|
220
|
220
|
220
|
|
Power (W)
|
50
|
50
|
50
|
|
Response Time (ms)
|
10~20
|
||
|
Operating Temperature (°C)
|
5~40
|
||
|
Vibration Isolation Frequency (Hz)
|
1~200
|
||
|
Vibration Isolation Mode
|
6 degrees of freedom
|
||
|
Vibration Isolation Performance
|
90% @ 5Hz, 95% @ 10Hz
|
||
|
Custom Processing
|
Supported
|
||
|
Working Form
|
Air spring
|
||
|
Control Form
|
Active control
|
||
|
Material
|
Steel
|
||
Technical Statement: This product is produced in accordance with the enterprise standard Q/LS 001-2023, and has passed the CMA metrological certification (No. LS2023-046). The actual test data can be found in the accompanying inspection report.
