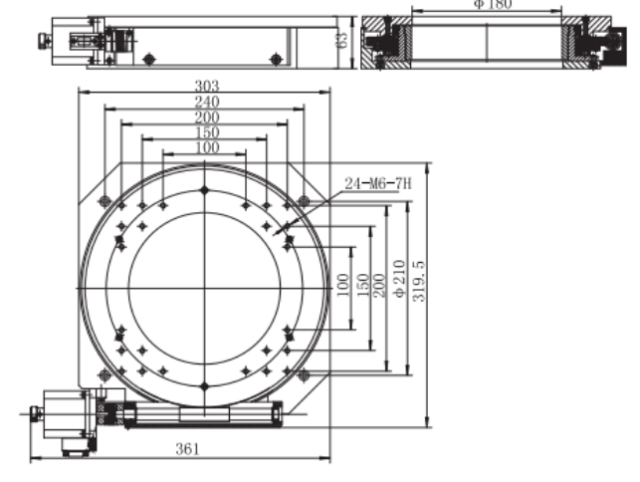

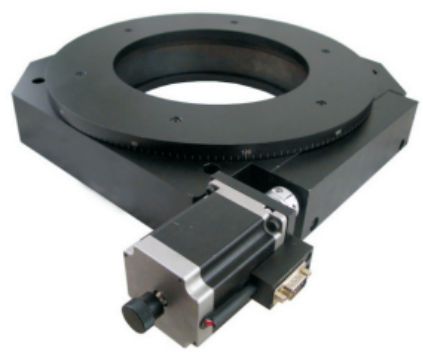

LSDH-300WS Motorized Rotary Stages

No.LSDH-300WS

Features:
Prototype stepper motors and DB interface.
High precision worm gear bearings.
Clock wise and anti-clock rotations with tiny backlash.
High precision scaling for rotating degree reading.
The stepper motor is jointed with the worm gear by high quality coupling with synchronized transmission.

$2412.85

Description
Services & Guarantee

Product Features:
The central through hole of the rotary table has strict coaxiality requirements with the rotation center, and the central aperture of the rotary table has strict matching tolerance limits, which is convenient for customers to do precise positioning; the scale ring on the periphery of the table is a laser-engraved scale, which is convenient for initial positioning and reading; the stepper motor and worm are connected by imported high-quality elastic couplings, with synchronous transmission and good deflection elimination performance, which greatly reduces eccentric disturbance and has low noise; the electric rotary table can be used horizontally or vertically, and can be used with other types of tables to form a multi-dimensional electric adjustment table.
Technical Specification:

Product Model	LDTDH-60WS	LDTDH-100WS	LDTDH-200WS	LDTDH-300WS
Transmission Ratio	90:1	180:1	180:1	288:1
Platform Diameters	60mm	100mm	200mm	300mm
Resolution	9”	4.5”	4.5”	2.8125”
Repeating Accuracy:	＜36”	＜18”	＜18”	7.2”
Motor	42BYGH(1.8°）	42BYGH(1.8°）	57BYGH(1.8°）	57BYGH(1.8°）
Backlash	18”	18”	18”	7.2”
Max Speed	50°/Sec	25°/Sec	25°/Sec	15°/Sec
Eccentric	5μm	5μm	5μm	20μm
Net Weight	1.2kg	1.8kg	7.7kg	8kg
Load Capacity	30kg	50kg	60kg	50kg
