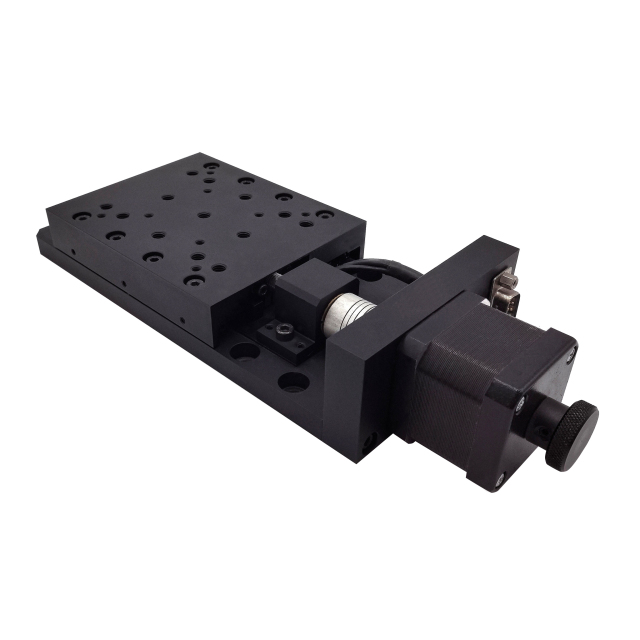

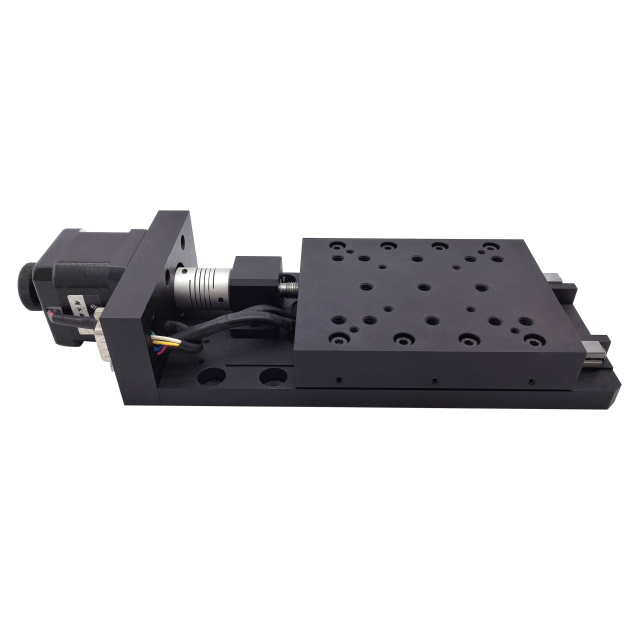

LDTDP-30JS Motorized Translation Stage

No.LDTDP-30JS
Features:
1, The stepper motor with 2-phase and 1.8° step angle will be sued in this model
2, Low-profile, high-accuracy and apply to low bearing capacity, low speed.
3, The structure of crossed-roller bearing requires the precise movement.
4,Original position and limit switches are at both ends which can supply the precision positioning and protection.
5, Applies to use in single axis or assemble into multi-axis stage
$314.30
  • LDTDP-30JS Motorized Translation Stage
  • LDTDP-30JS Motorized Translation Stage
  • LDTDP-30JS Motorized Translation Stage
  • LDTDP-30JS Motorized Translation Stage
  • LDTDP-30JS Motorized Translation Stage
  • Description
  • Services & Guarantee
Product Features:
The product structure is small and thin, suitable for light load, low speed use, and scientific experiments.High-quality precision ground screw drive, small lead, the same subdivision number can achieve higher resolution..The clever design of the anti-backlash nut structure can minimize the gap of the ground screw pair.The guide rail adopts a cross roller guide rail, which is comfortable to move, has the function of lateral adjustment of the guide rail preload and anti-backlash, and can be used in multiple combinations.Zero position and limit switches are installed at both ends to facilitate accurate positioning and protect the product.
Note: Different parameters have different prices, please check the parameter table below
TECHNICAL SPECIFICATIONS:

 Model

 LDTDP-30JS

 LDTDP-50JS

 LDTDP-100JS

Price

$314.28

$371.42

$700.00

Platform Size

90X90mm

90X110mm

90X185mm

Crew lead

1mm

Travel Range

30mm

50mm

100mm

Net Weight

 1.25kg

  1.4kg

  1.8kg

Resolution

0.000625mm

Max Speed

10mm/Sec

Resetting Accuracy

< 0.005mm

Axial Spacing

< 0.02mm

Standard Motor

42 Stepper Motor(1.8°)

Max Torque

0.4N.M

Operating Current

1.7A

Loading Capacity

10kg
