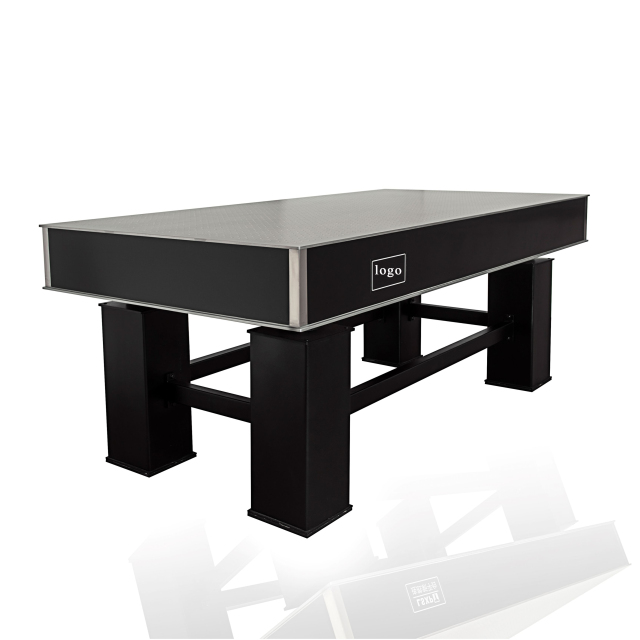

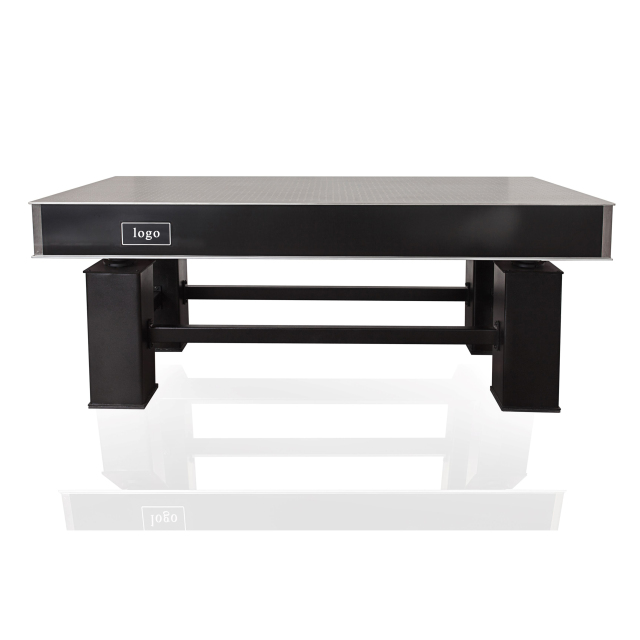

ZDT-P Series
The POT-P Series solid rubber vibration isolation system delivers superior stability for precision optical setups. Designed by a leading welding optical table manufacturer, it features an advanced optical table breadboard ideal for laboratory and industrial environments.
Functional Precision for Optical and Industrial Applications
The POT-P Series addresses the critical need for vibration isolation in high-precision optical experiments and industrial measurement settings. Engineered primarily for research institutions, engineering labs, and precision manufacturers, this solution supports delicate optical components requiring consistent stabilization. Our company, a reputable welding optical table manufacturer, integrates robust solid rubber isolators in this design to minimize external disturbances effectively. It is compatible with various optical breadboard configurations, enhancing system modularity and enabling seamless integration into existing workflows where consistent surface stability is essential.
Advanced Vibration Control and Engineering Specifications
This optical table features solid rubber vibration isolators combined with compound rubber pads to reduce both vertical and horizontal vibrations within specified inherent frequency ranges (6.5–12Hz vertical, 3.0–8.0Hz horizontal). Its carbon steel platform guarantees long-term mechanical integrity and dimensional stability. The optical breadboard surface is finely machined to a roughness of ≤0.05 mm/m², ensuring minimal micro-disturbances for precision instrumentation. Manual leveling capability allows precise vertical adjustments within a ≤0.8 µm range, maintaining alignment accuracy crucial for sensitive equipment setups on the breadboard optical table platform.
Industrial Versatility and Operational Benefits
Designed with industrial and laboratory integration in mind, the POT-P Series serves diverse sectors including photonics, microscopy, interferometry, and optoelectronics testing. It supports heavy instruments requiring low-vibration environments, thereby improving measurement reproducibility and operational reliability. As an optical table breadboard solution from an experienced manufacturer, it enables enhanced optical alignment and stable mounting across multiple scientific disciplines. This product effectively mitigates external interference, safeguarding experimental integrity and ensuring consistency across iterative testing or production cycles.
Structural Integrity and Modular Design Features
The POT-P Series embodies a structurally optimized configuration combining carbon steel construction with engineered solid rubber isolators. This design approach delivers a stable foundation with resilience against prolonged mechanical stress. The integration of compound rubber pads enhances vibration damping horizontally and vertically, while manual leveling systems provide precise height calibration. Our expertise as a leading welding optical table manufacturer ensures compatibility with numerous optical breadboard configurations, facilitating system expansion and modular workflow assembly in complex optical setups requiring robust platforms.
Enhanced Performance and Operational Efficiency
The synergy of solid rubber isolators with precision leveling mechanisms significantly improves overall vibration attenuation, directly benefiting high-accuracy optical instrumentation. Users gain improved repeatability in measurement and alignment tasks due to the platform’s smooth surface finishing (≤0.05 mm/m²) and stable mounting conditions. This platform reduces maintenance frequency and facilitates easy integration within existing optical or experimental setups, providing measurable ROI in laboratory and industrial environments. Coupled with established expertise from a trusted optical breadboard manufacturer, this solution supports continuous operation with minimal downtime or recalibration.
|
Inherent Frequency |
6.5-12Hz, vertically; 3.0-8.0Hz, horizontally |
|
Vibration lsolation Structure |
Compound rubber pads |
|
Leveling Type |
Manual |
|
Total Table Height |
800mm |
|
Breadboard Surface Roughness |
≤0.05mm/m² |
|
Isolator Height Adjustment Range |
≤0.8um， matt surface finish |
At OpticalTable, we specialize in providing top-tier optical equipment and precision components for research, industrial, and laboratory applications. Our focus is on delivering high-performance products that enhance the capabilities of optical systems, microscopes, and experimental setups. With years of expertise in the field, we supply advanced optical platforms such as motorized rotary stages, vibration isolation systems, and other cutting-edge components to support your scientific endeavors. Our commitment to quality, innovation, and customer satisfaction has made us a trusted partner in the optics industry.
1.High-Quality Products: We provide only the best, rigorously tested optical and precision components that ensure reliability and optimal performance in your experiments.
2.Customization Options: Our products are customizable to meet your specific research needs, from optical breadboards to microscope stages, ensuring perfect fit and functionality.
3.Expertise and Experience: With years of experience in the field of optics, we bring deep knowledge and technical support to every product we offer.
4.Competitive Pricing: We offer high-quality equipment at competitive prices, ensuring that you get the best value for your investment.
5.Global Reach and Support: Serving clients worldwide, we provide excellent customer service and technical support, wherever you are located.
What materials are used in the POT-P Series optical table construction?
Our breadboard optical table features a carbon steel platform combined with solid rubber isolators. This provides durable support and effective vibration damping suitable for precision optical experiments and industrial applications.
Can the POT-P Series optical table be customized for specific project requirements?
We offer manual leveling for precise height adjustment and can discuss tailored solutions to meet your operational needs. As an experienced optical breadboard manufacturer, we ensure the table’s design suits your specialized vibration isolation demands.
How do I install and adjust the solid rubber isolators on this vibration isolation optical table?
Installation is straightforward with manual leveling features that allow you to fine-tune the isolator height within 0.8 µm. Our team can provide technical guidance to ensure optimal height settings for your optical table breadboard system.
What maintenance is needed to keep the POT-P Series optical table performing optimally?
Regular inspection of the compound rubber pads and manual leveling components helps maintain vibration isolation efficiency. We recommend scheduled checks to preserve the integrity of this welding optical table manufacturer-grade system and its long-term stability.
