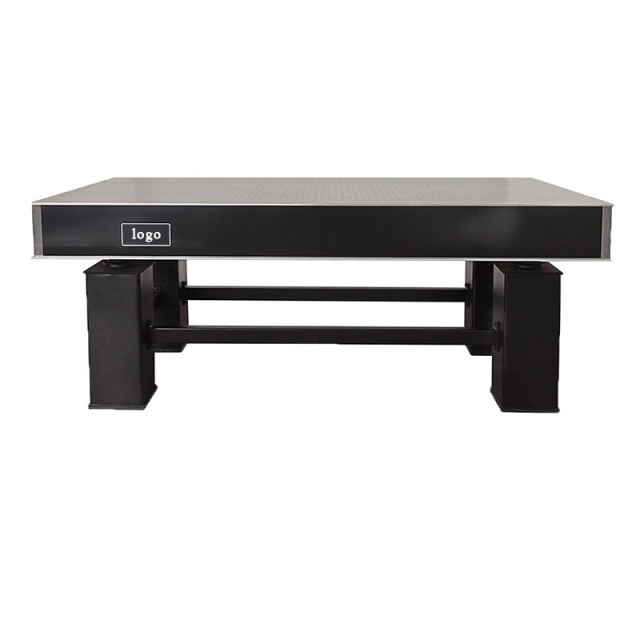

ZDT-P Series Optical table Vibration Isolation Table with Pneumatic table for physical lab

Purpose-Built Vibration Isolation Solution for Precision Labs

The ZDT-P Series optical table is designed specifically for engineers and researchers requiring ultra-stable platforms in physical laboratories. As a product from a leading optical table supplier, it targets applications demanding minimal vibration interference for precision instruments such as optical microscopes and spectrometers. This optic table integrates self-balancing pneumatic isolation, ensuring consistent stability. Users benefit from a stress-free mounting surface supporting highly sensitive optical experiments, making it indispensable where vibration isolation directly impacts measurement accuracy and system reliability.

Engineering Excellence through Advanced Pneumatic Technology

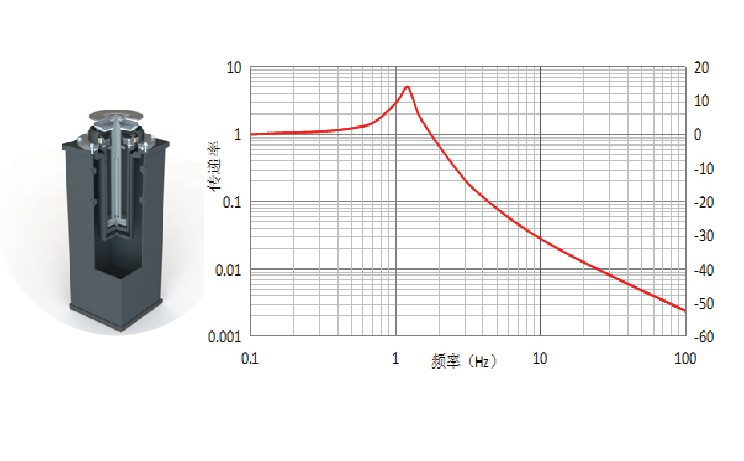

This optical table utilizes an ultra-thin air spring vibration isolation structure with inherent frequencies between 1.0–2.0 Hz, achieving broadband damping up to 95% at critical frequencies. The pneumatic levitation system is complemented by porous quasi-laminar flow dampers and optional pendulum rods for enhanced horizontal isolation. Constructed from stainless steel with honeycomb core design, it assures flatness within 0.05 mm/m² and surface roughness below 0.8 μm. Automated leveling with ±0.1 mm accuracy and working air pressure control between 0.2 and 0.4 MPa optimize operational consistency. This solution exemplifies precision engineering expected from a rigid optical table manufacturer.

Integration and Versatility Across High-Tech Industries

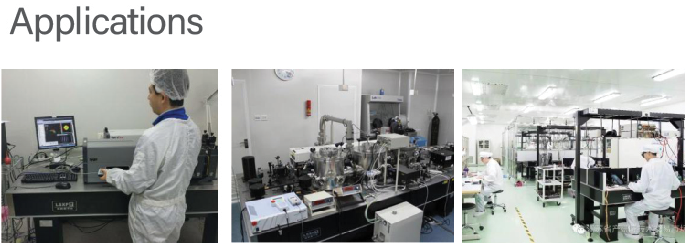

Widely adopted in semiconductor fabrication, aerospace research, and optical detection, the ZDT-P Series optical tables enable improved instrument performance by significantly reducing vibration-induced errors. By providing stable bases for laser scanning systems, interferometers, and integrated electronics, they enhance workflow efficiency and measurement fidelity. The pneumatic isolation platform complies with cleanroom standards, facilitating contamination-controlled environments critical for high-value applications. Optical table suppliers provide this solution to research facilities and industrial clients demanding durability, adaptability, and precise system integration.

Product Advantages

Robust Structural Design and Modular Configuration

Engineered by a reputable rigid optical table manufacturer, the ZDT-P Series features a stainless-steel honeycomb core that balances weight reduction with exceptional rigidity. The ultra-thin air spring vibration isolation structure combines with pneumatic levitation and adjustable pendulum rods to offer modular damping options targeting multiple vibration axes. Its sealed cups enhance compatibility with cleanroom environments, expanding usability across stringent application contexts. The M6 tapped mounting grid on 25 mm spacing supports diverse instrument layouts, reflecting design foresight into flexible system integration, crucial for advanced optical table suppliers focused on customization and scalability.

Advanced Performance and User-Centric Usability

Operational efficiency is maximized through automatic leveling, providing ±0.1 mm re-leveling accuracy, critical for laboratory workflows demanding minimal downtime. The pneumatic isolation mechanism achieves high vibration attenuation across vertical and horizontal planes, ensuring stable supports for sensitive optical and photonic instruments. Noise reduction from the compression system aligns with laboratory ambient standards, minimizing environmental interference. Users gain from a matt surface finish that limits stray reflections, while selectable non-magnetic options further extend performance in applications sensitive to electromagnetic interference, underscoring significant user value in diverse lab settings.

The ZDT series products feature a honeycomb structured platform combined with an automatic pneumatic levitation isolation system. The platform is compatible with tunable dampers, which, after optimization, endows the optical platform with unparalleled performance and value. Compared to conventional platforms, its exceptional specific stiffness reduces the impact of laboratory environmental loads and enhances the utilization rate of equipment and instruments.

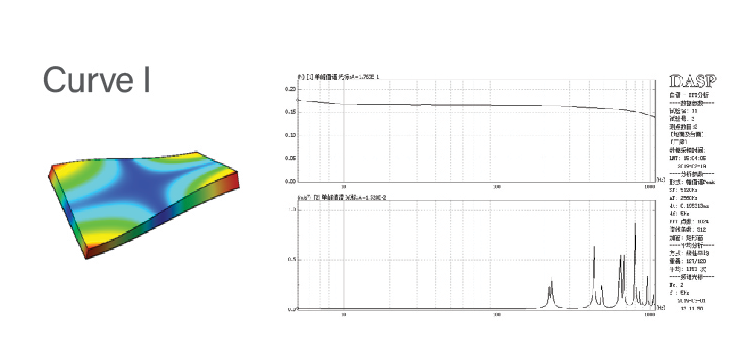

Inherently equipped with broadband damping properties, we further augment our platforms with tunable dampers, offering a distinct advantage over the narrowband dampers commonly found in the market. While narrowband dampers are efficacious only at a single, predetermined frequency, their application scope is undeniably limited. From a vibration perspective, the initial resonant frequencies have substantial influence; particularly, when instruments are mounted onto the upper platform, the fundamental mode or even higher modes may shift, potentially rendering narrowband dampers ineffective.

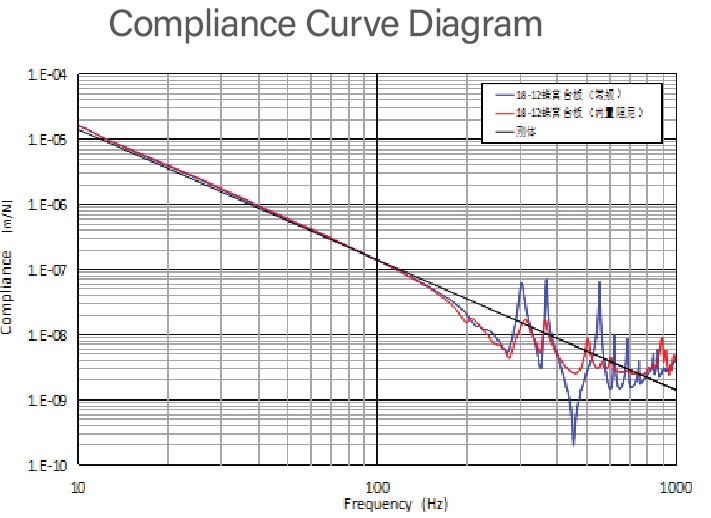

Conversely, our designed tunable dampers effectively address a broader range of mid-to-high frequencies, with a specially calibrated high-efficiency region spanning from 50 to 500Hz, where the attenuation effect is notably pronounced. This tailored approach ensures comprehensive vibration control tailored to the complex dynamics encountered in real-world applications.

FAQ

What customization options are available for your optical tables?

We offer customization for our optical tables, including non-magnetic materials, special shapes, and modified mounting holes to meet your unique laboratory or industrial requirements. This ensures compatibility with your existing equipment and cleanroom standards.

How do you ensure the vibration isolation performance of the ZDT-P Series?

Our ZDT-P Series employs ultra-thin air springs with self-balancing pneumatic isolation and tunable dampers. These provide stable, broadband vibration isolation between 1.0–2.0 Hz frequency, effectively reducing vertical and horizontal disturbances for precision tasks on your optical table platform.

Can you support installation and maintenance services for the vibration isolation tables?

Yes, we provide professional guidance on installation, ensuring correct setup using our pneumatic isolation system and silent compressor supply. We also offer maintenance tips to preserve the high flatness and damping properties critical for long-term operation of your rigid optical table manufacturer products.

What logistics and delivery options do you provide for industrial buyers?

We coordinate efficient shipping for bulk orders of our optical table products, ensuring secure packaging to prevent damage during transit. Our team works closely with you to accommodate delivery schedules and customs requirements for international clients across various industries.
