The POT-P Optical Platform comes equipped with advanced vibration isolators that effectively dampen vibrations, ensuring that your optical experiments remain undisturbed by external factors. This makes it perfect for use with delicate equipment such as microscope stages and optical sensors.
This platform is designed to seamlessly integrate with an optical bench or microscope stage, providing a stable environment for precision optical applications. Whether you're performing imaging or alignment tasks, the POT-P ensures smooth and consistent positioning.
The POT-P can be combined with linear stages for further fine-tuning of sample positioning. This modular approach enhances its flexibility, allowing you to create customized setups based on your specific research needs.
The POT-P Optical Platform is engineered to handle a significant load, making it suitable for heavy optical equipment without compromising its stability or performance. This ensures that your setup remains secure, even under demanding conditions.

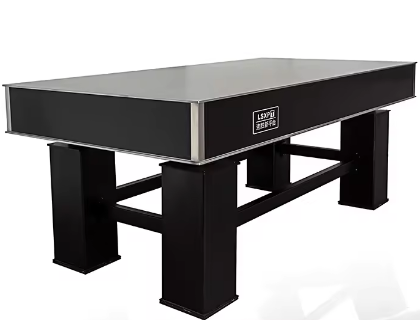

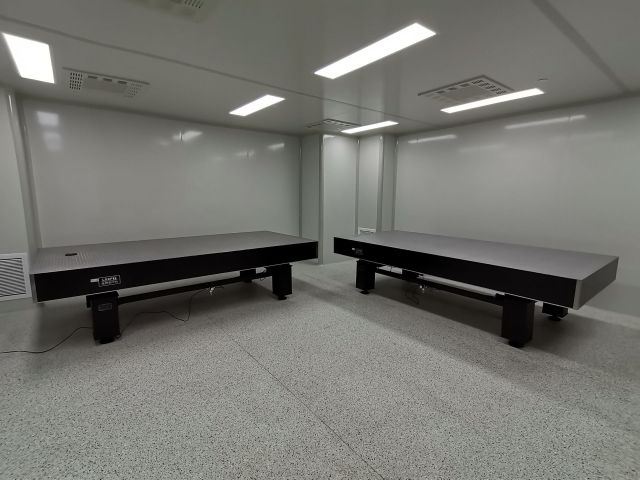

The POT-G series by a leading vibration isolation optical table manufacturer offers advanced hollow cone damping, high rigidity, and modular design. Ideal as an optical breadboard table for precision optical systems.
Functional Positioning for Precision Users

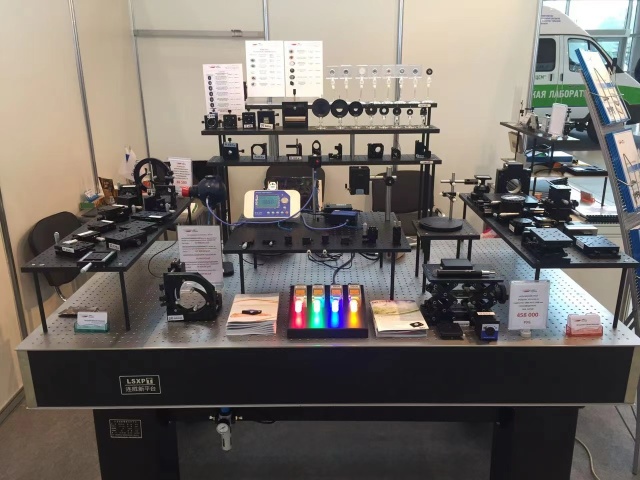

The POT-G series active vibration isolation optical table serves laboratories and research institutions requiring stable, low-vibration platforms for sensitive optical instruments. Designed for engineers and technical users managing high-precision environments, this optical breadboard table supports tasks including laser scanning, interferometry, and biomedical optical experiments. It accommodates heavy equipment up to 800 kg, enabling integration with optical benches and stage microscopes. The system’s flexibility benefits users needing modular optical setups combined with reliable vibration mitigation, ensuring optimal experimental repeatability and measurement accuracy in demanding applications.
Technical Specifications and Structural Innovation

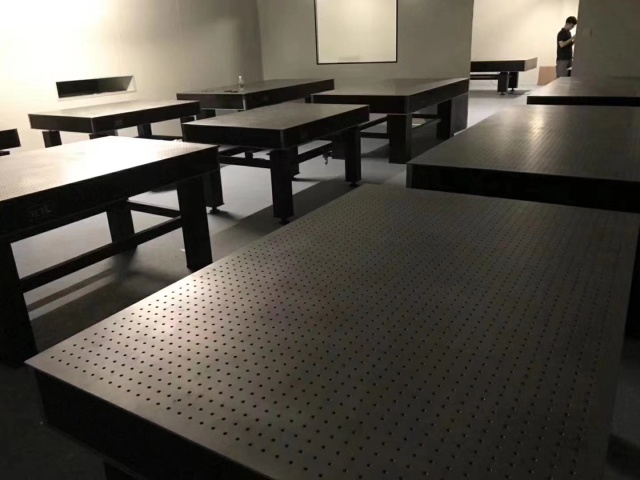

This vibration isolation optical table incorporates a hollow cone rubber structure to deliver effective damping, complemented by a high-density honeycomb core that maximizes rigidity and minimizes resonance. Its stainless steel top and bottom skins provide durability and surface flatness better than 0.05 mm/m², critical for precision alignment. Manual leveling with ±10 mm adjustment allows precise calibration across a height of 800 mm. Vibration isolation efficiency ranges between 78–95% across key frequencies, supported by porous quasi-laminar flow damping elements that further suppress surface vibrations. The M6 tapped hole grid facilitates secure mounting and integration with modular linear stage systems, offering enhanced positioning control.
Industry Integration and Application Scope
The POT-G series optical table is well-suited for advanced optical research, industrial inspection, and biomedical instrumentation environments. Its vibration isolation capability is essential for applications such as spectrometry, laser scanning, and optical path alignment where environmental vibration can degrade performance. This optical breadboard supplier’s product supports workflows requiring clean, stable platforms capable of handling substantial loads while maintaining system integrity. Its compatibility with custom and modular setups accelerates integration in complex testing and measurement rigs, providing significant value in terms of stability, precision, and operational efficiency.
Innovative Structural and Design Features
The optical table’s hollow cone rubber vibration isolation mechanism provides superior dynamic damping compared to conventional supports. Its honeycomb core structure optimizes weight-to-stiffness ratio, ensuring minimal deformation under load. The stainless steel skins resist wear and maintain surface flatness for critical optical tasks. Modular design elements, including standard M6 mounting holes and support for linear stage integration, facilitate flexible system assembly and compatibility with various optical benches and accessories. This configuration supports complex setups demanding adaptable and durable platforms, meeting stringent engineering requirements for vibration isolation optical tables and optical breadboard tables alike.
Enhanced Performance and User-centered Benefits
Users benefit from high vibration isolation efficiency across vertical and horizontal axes, resulting in improved measurement reliability and instrument stability. The manual leveling system allows quick and precise height adjustment with fine tolerances, improving workflow efficiency during setup and calibration. Optional castors provide mobility without sacrificing vibration damping, aiding lab reconfiguration. The low surface roughness matt finish enhances equipment handling, minimizing damage risks. Overall, the table delivers optimized operational capacity for precision optical experiments, enabling engineers and researchers to maintain consistent performance in sensitive environments.
|
Inherent Frequency
|
4~8Hz,vertically;2~4Hz,horizontally
|
|
Vibration Isolation Structure
|
Hollow cone rubber structure
|
|
Leveling Type
|
Manual
|
|
Vibration Damping Type
|
Porous quasi-laminar flow damping element with diffuse
|
|
Total Table Height
|
800mm
|
|
Working Air Pressur
|
0.2-0.4MPa
|
|
Compressed Air Sourc
|
Silent compressor (noise level) <50dB
|
|
Vibration Isolating Efficiency
|
82～88%@5Hz, 86～95%@10Hz, vertically
78～86%@5Hz, 84～92%@10Hz, horizontall
|
|
Re-leveling Accuracy
|
±0.1mm
|
|
Table Top Flatness
|
≤0.05mm/m²
|
|
Surfaced Roughnes
|
≤0.8μm, matt surface finish
|
|
Isolator Height Adjustment Rang
|
±10mm
|
|
Mounting Holes
|
M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm
|
|
Top Skin
|
5mm
|
|
Bottom Skin
|
4mm
|
|
Material
|
Stainless Steel
|
High density honeycomb core structure optical breadboard with superconducting magnetic optical surface plates with high rigidity and stability. The isolators use high quality compound isolation damping materials with vibration isolation efficiency that is almost equal to air spring pneumatic isolators while requires less maintenance than the latter.
| Model | Dimension(mm) | Height(mm) | Load Capacity(Kg) |
|---|---|---|---|
| POT-G09-06 | 900×600 | 800 | <135 |
| POT-G10-08 | 1000×800 | 800 | <200 |
| POT-G12-09 | 1200×900 | 800 | <270 |
| POT-G15-10 | 1500×1000 | 800 | <375 |
| POT-G18-10 | 1800×1000 | 800 | <450 |
| POT-G20-10 | 2000×1000 | 800 | <500 |
| POT-G12-12 | 1200×1200 | 800 | <360 |
| POT-G15-12 | 1500×1200 | 800 | <450 |
| POT-G18-12 | 1800×1200 | 800 | <540 |
| POT-G20-12 | 2000×1200 | 800 | <600 |
| POT-G24-12 | 2400×1200 | 800 | <720 |
| POT-G30-12 | 3000×1200 | 800 | <900 |
| POT-G15-15 | 1500×1500 | 800 | <560 |
| POT-G18-15 | 1800×1500 | 800 | <675 |
| POT-G20-15 | 2000×1500 | 800 | <750 |
| POT-G24-15 | 2400×1500 | 800 | <900 |
| POT-G30-15 | 3000×1500 | 800 | <1125 |
At OpticalTable, we specialize in providing top-tier optical equipment and precision components for research, industrial, and laboratory applications. Our focus is on delivering high-performance products that enhance the capabilities of optical systems, microscopes, and experimental setups. With years of expertise in the field, we supply advanced optical platforms such as motorized rotary stages, vibration isolation systems, and other cutting-edge components to support your scientific endeavors. Our commitment to quality, innovation, and customer satisfaction has made us a trusted partner in the optics industry.
1.High-Quality Products: We provide only the best, rigorously tested optical and precision components that ensure reliability and optimal performance in your experiments.
2.Customization Options: Our products are customizable to meet your specific research needs, from optical breadboards to microscope stages, ensuring perfect fit and functionality.
3.Expertise and Experience: With years of experience in the field of optics, we bring deep knowledge and technical support to every product we offer.
4.Competitive Pricing: We offer high-quality equipment at competitive prices, ensuring that you get the best value for your investment.
5.Global Reach and Support: Serving clients worldwide, we provide excellent customer service and technical support, wherever you are located.
What materials are used in the POT-G series vibration isolation optical table?
Our POT-G series features a stainless steel top and bottom skin combined with a high-density honeycomb core, ensuring durability, flatness, and superior rigidity. The hollow cone rubber isolation structure improves vibration damping. This robust design positions us as a leading vibration isolation optical table manufacturer.
Can you customize the POT-G optical breadboard table dimensions or load capacity?
We offer a wide range of standard sizes with load capacities of up to 800 kg and support modular setups compatible with linear stage systems. For special requirements beyond listed models, please contact us to discuss custom configurations tailored to your application needs.
How do you ensure stable vibration isolation during laboratory experiments?
Our design includes a hollow cone rubber vibration isolation structure combined with porous quasi-laminar flow damping elements. This achieves high damping efficiency in vertical and horizontal directions, delivering a stable platform ideally suited for sensitive applications requiring a reliable optical breadboard table.
What installation and maintenance support do you provide for POT-G optical tables?
We provide detailed manuals for manual leveling adjustments and mounting guidelines with M6 tapped holes on a 25 mm grid. Optional castors facilitate mobility in lab environments. Our support team is available to guide you through setup and recommend maintenance for long-term performance.
