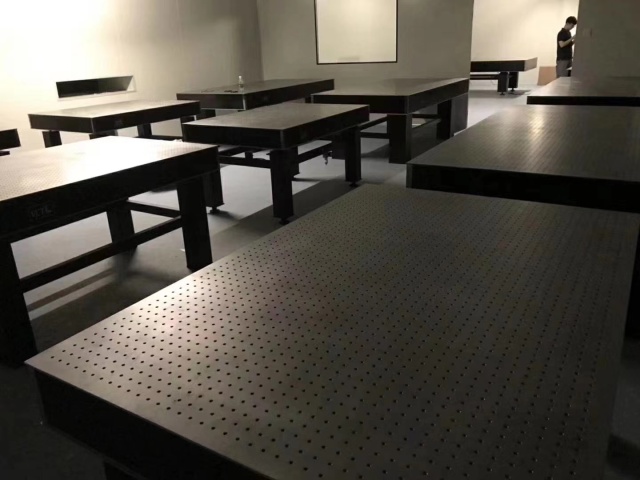

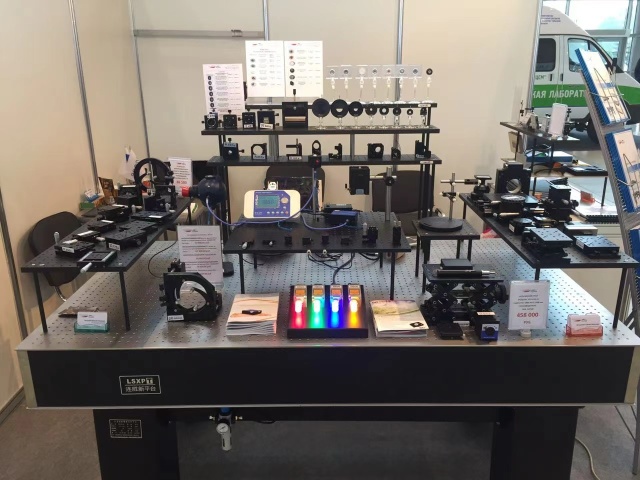

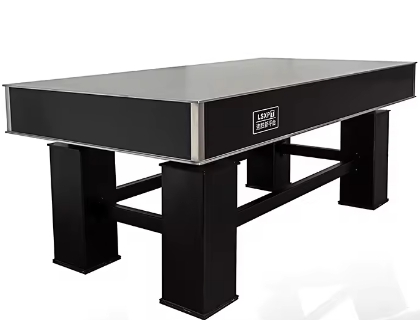

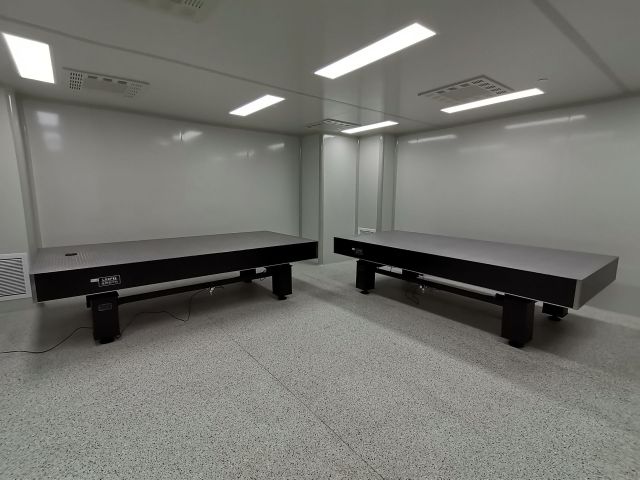

The POT-P Optical Table features solid rubber vibration isolation technology, offering unmatched protection against external vibrations. This ensures the best possible stability for experiments where even the smallest vibration can disrupt results. Perfect for use in optical benches, microscope stages, and other sensitive setups.
This optical table comes with size options, making it adaptable to various workspaces. Whether you're conducting delicate optical experiments or setting up a complex linear stage system, this optical breadboard can be tailored to suit your specific needs, ensuring optimal performance in any environment.
Equipped with durable casters, this vibration isolation optical table is highly mobile, making it easy to rearrange and adjust your setup as needed. This feature is especially valuable in dynamic lab environments where configurations often change.
Designed for accuracy and stability, the POT-P Optical Table ensures that vibrations are effectively mitigated, providing a steady platform for precise scientific measurements and experiments. It is ideal for applications such as microscopy, laser systems, and other high-precision tasks.
|
Inherent Frequency
|
6.5~12Hz,vertically;3.0~8.0Hz,horizontally
|
|
Vibration Isolation Structure
|
Vibration isolation rubber
|
|
Leveling Type
|
Manual
|
|
Vibration Damping Type
|
Porous quasi-laminar flow damping element with diffuse
|
|
Total Table Height
|
800mm
|
|
Working Air Pressur
|
0.2-0.4MPa
|
|
Compressed Air Sourc
|
Silent compressor (noise level) <50dB
|
|
Vibration Isolating Efficiency
|
82～88%@5Hz, 86～95%@10Hz, vertically
78～86%@5Hz, 84～92%@10Hz, horizontall
|
|
Re-leveling Accuracy
|
±0.1mm
|
|
Table Top Flatness
|
≤0.05mm/m²
|
|
Surfaced Roughnes
|
≤0.8μm, matt surface finish
|
|
Isolator Height Adjustment Rang
|
±10mm
|
|
Mounting Holes
|
M6 tapped holes on 25mm grid. Hole to edge 12.5mm or 37.5mm
|
|
Top Skin
|
5mm
|
|
Bottom Skin
|
4mm
|
|
Material
|
Stainless Steel
|
High density honeycomb core structure optical breadboard with superconducting magnetic optical surface plates with high rigidity and stability. The isolators use high quality compound isolation damping materials with vibration isolation efficiency that is almost equal to air spring pneumatic isolators while requires less maintenance than the latter.
| Model | Dimension(mm) | Height(mm) | Load Capacity(Kg) |
|---|---|---|---|
| POT-G09-06 | 900×600 | 800 | <135 |
| POT-G10-08 | 1000×800 | 800 | <200 |
| POT-G12-09 | 1200×900 | 800 | <270 |
| POT-G15-10 | 1500×1000 | 800 | <375 |
| POT-G18-10 | 1800×1000 | 800 | <450 |
| POT-G20-10 | 2000×1000 | 800 | <500 |
| POT-G12-12 | 1200×1200 | 800 | <360 |
| POT-G15-12 | 1500×1200 | 800 | <450 |
| POT-G18-12 | 1800×1200 | 800 | <540 |
| POT-G20-12 | 2000×1200 | 800 | <600 |
| POT-G24-12 | 2400×1200 | 800 | <720 |
| POT-G30-12 | 3000×1200 | 800 | <900 |
| POT-G15-15 | 1500×1500 | 800 | <560 |
| POT-G18-15 | 1800×1500 | 800 | <675 |
| POT-G20-15 | 2000×1500 | 800 | <750 |
| POT-G24-15 | 2400×1500 | 800 | <900 |
| POT-G30-15 | 3000×1500 | 800 | <1125 |
