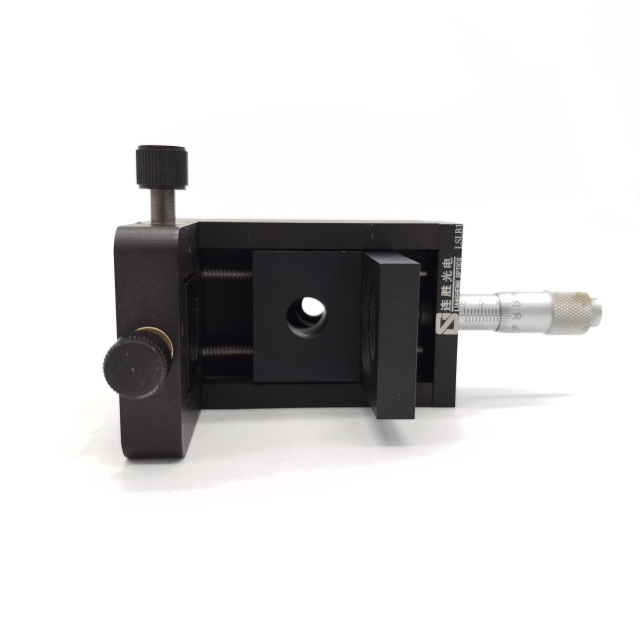

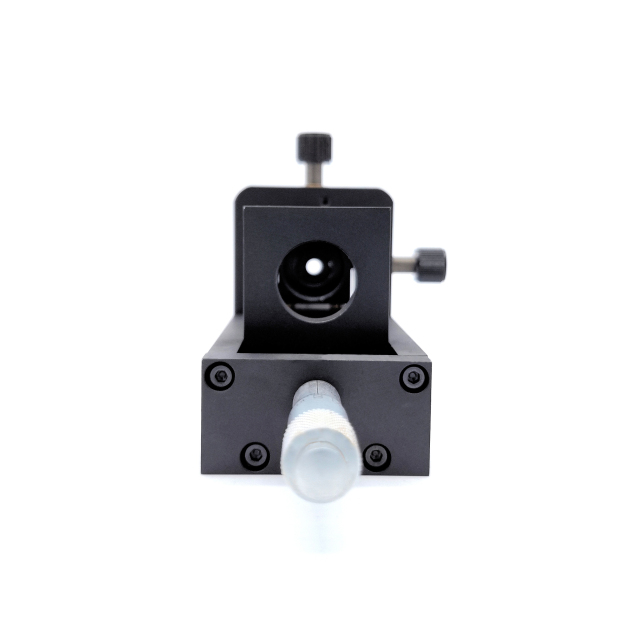

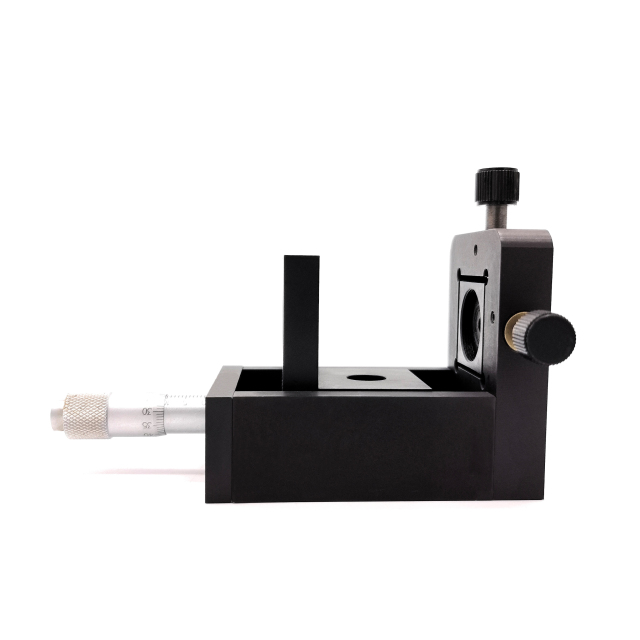

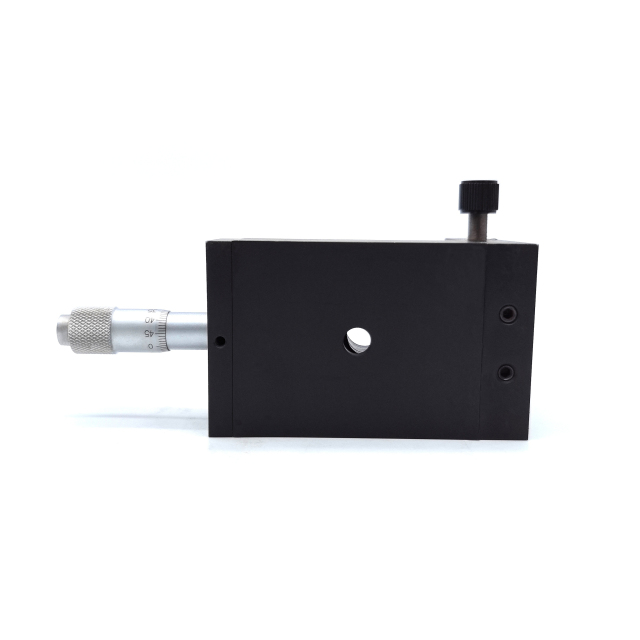

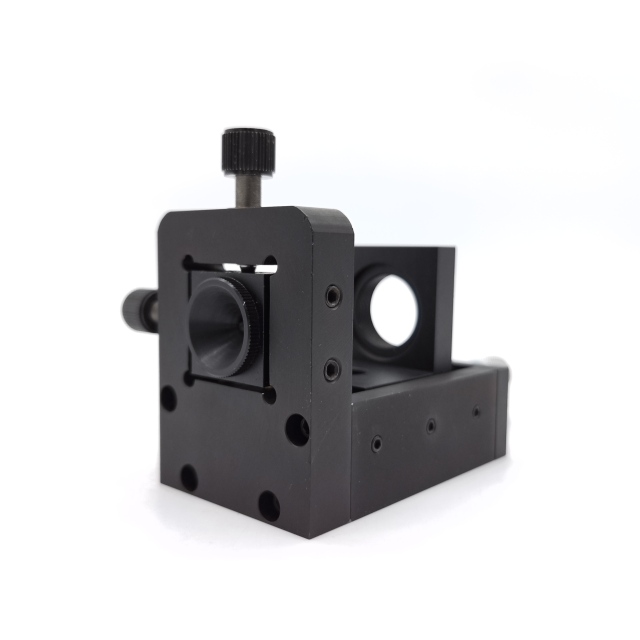

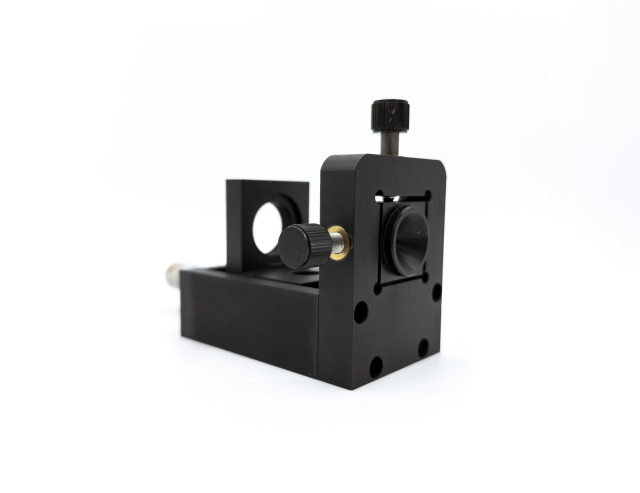

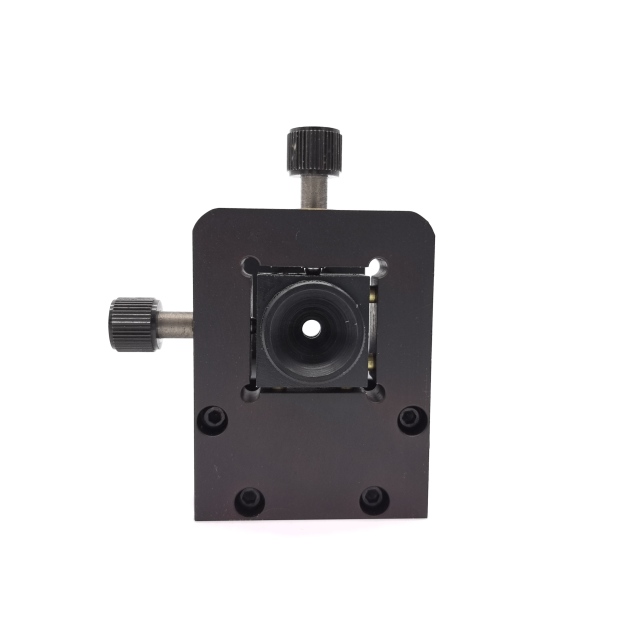

Precision Laser Spatial Filter | High Stability Optical Beam Cleaner
No.LSLB1
A spatial filter mainly eliminates stray light, high-order diffraction noise and beam aberrations. It reshapes distorted laser beams into uniform Gaussian spots, optimizes beam parallelism and wavefront quality, purifies optical paths, and ensures high-purity output for precision laser systems and optical experiments.
Spatial Filter: Working Principle & Application Scenarios
1. Working Principle
A typical spatial filter consists of a focusing lens and a pinhole aperture placed precisely at the lens focal point.
Incident laser beams carry ideal fundamental frequency light and unwanted noise components such as stray light, scattered light, high-order diffraction and beam distortion.
The lens converges all light to the focal plane: the high-quality fundamental laser concentrates into a tiny central point and passes smoothly through the micro pinhole. In contrast, high-frequency noise, stray light and distorted light feature larger divergence angles, which focus outside the pinhole and are physically blocked.
By filtering high-frequency spatial noise, it restrains beam edge flare, corrects wavefront distortion, homogenizes light intensity distribution, and finally outputs a high-purity, uniform, diffraction-limited Gaussian beam.
2. Main Application Scenarios
Laser System Optimization
Purify laser output, improve beam collimation and roundness, widely used in solid-state lasers, fiber lasers and continuous laser equipment.
Precision Optical Experiments
Applied in optical path debugging, interferometry, holography and laser spectroscopy to eliminate optical noise and ensure experimental accuracy.
Microscopy & Imaging Systems
Match with high-precision microscopes and microscopic imaging equipment to suppress scattered light, improve image contrast and resolution.
Semiconductor & Precision Processing
Used in laser marking, etching, lithography and micro-nano processing to stabilize beam quality and guarantee processing consistency.
Optical Measurement & Detection
Vibration isolation optical platforms, optical detection instruments and astronomical optical systems, for weak signal extraction and anti-interference of optical paths.
