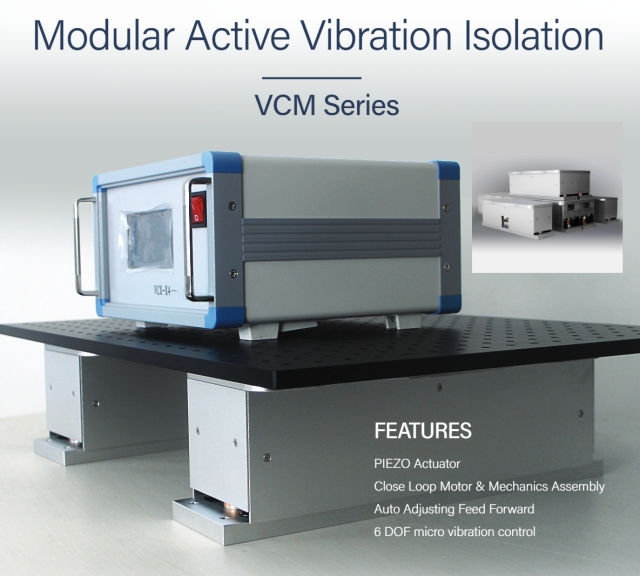

It supports the hybrid connection of multiple models such as S400, D400 and D600.
It features a hot-swappable structure (the replacement of units takes less than 10 minutes).
It has redundant control channels (with dual DSPs for parallel computing).
Piezoelectric accelerometer (with a sensitivity of 100 mV/g).
Piezoelectric actuator (with a peak thrust of ±12 N).
Adaptive feedforward control algorithm (with a bandwidth of 0.1 – 500 Hz).
Ultra-low frequency vibration isolation starting at 1 Hz (breaking through the limits of traditional passive vibration isolation).
Six-degree-of-freedom decoupling compensation (with the aspect ratio error less than 0.5%).
Dynamic load adaptation (automatically correcting for load fluctuations within ±30%).
|
model
|
VCM-S400
|
VCM-S600
|
VCM-D400
|
VCM-D600
|
|---|---|---|---|---|
|
Dimensions (mm)
|
400*120*120
|
600*120*120
|
400*245*120
|
750*246*127
|
|
Weight (kg)
|
7.6
|
9.5
|
15.2
|
28
|
|
Load (kg)
|
150
|
150
|
300
|
300
|
|
Scope of application
|
Light load
|
Light load
|
Medium load
|
Medium load
|
|
Vibration Isolation Technology
|
Based on piezoelectric sensors, the signal is quickly processed and the actuator is controlled to compensate for vibration interference.
|
|||
|
Electronic system control
|
External control unit
|
|||
|
Vibration isolation direction
|
Active compensation in six degrees of freedom
|
|||
|
Active bandwidth
|
Frequency 1-100Hz
|
|||
|
Response time
|
≤30ms
|
|||
|
Vibration isolation performance
|
>5Hz attenuation 90% >10Hz attenuation 95%
|
|||
|
Maximum correction force
|
Vertical ±12N Horizontal ±8N
|
|||
|
Working height adjustment method
|
Manual adjustment of the working height according to the weight of the load
|
|||
Technical Statement: This product is produced in accordance with the enterprise standard Q/LS 001-2023, and has passed the CMA metrological certification (No. LS2023-046). The actual test data can be found in the accompanying inspection report.
